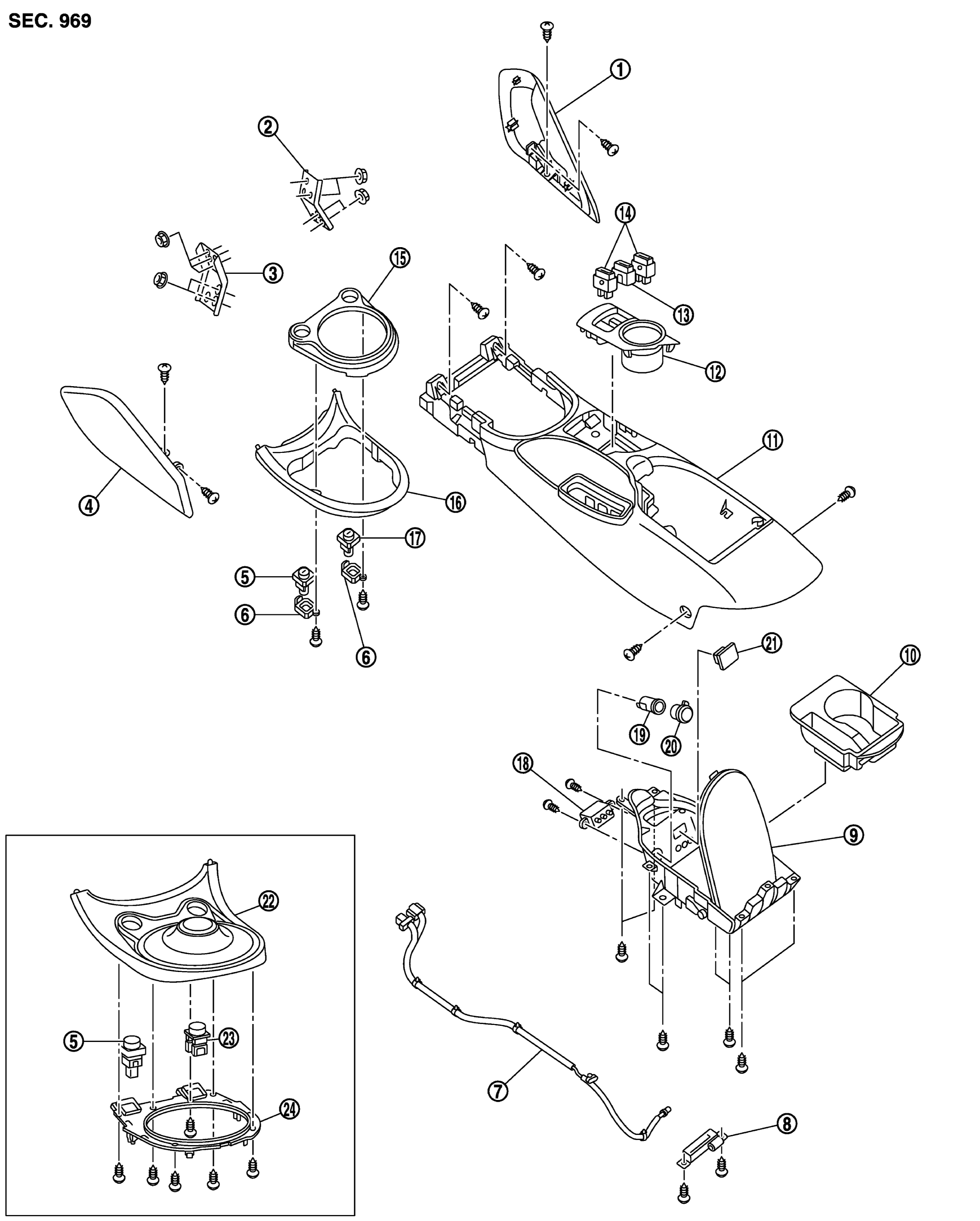

Exploded View With Torque Specifications
WARNING: This page is about a different variant/trim than selected.
| 1. | Console panel RH | 2. | Instrument stay RH | 3. | Instrument stay LH |
| 4. | Console panel LH | 5. | Hazard switch | 6. | Switch bracket |
| 7. | Console sub-harness | 8. | Inside key antenna | 9. | Console pocket assembly |
| 10. | Console tray assembly | 11. | Center console assembly | 12. | Cup holder assembly |
| 13. | Switch hole mask | 14. | Heated seat switch | 15. | Console finisher ring (A/T models) |
| 16. | Console finisher assembly (A/T models) | 17. | Switch hole mask | 18. | Auxiliary input jacks |
| 19. | Power socket inner case | 20. | Power socket cap | 21. | USB connector |
| 22. | Console finisher assembly (M/T models) | 23. | Switch hole mask or S-MODE switch | 24. | Console finisher bracket |
