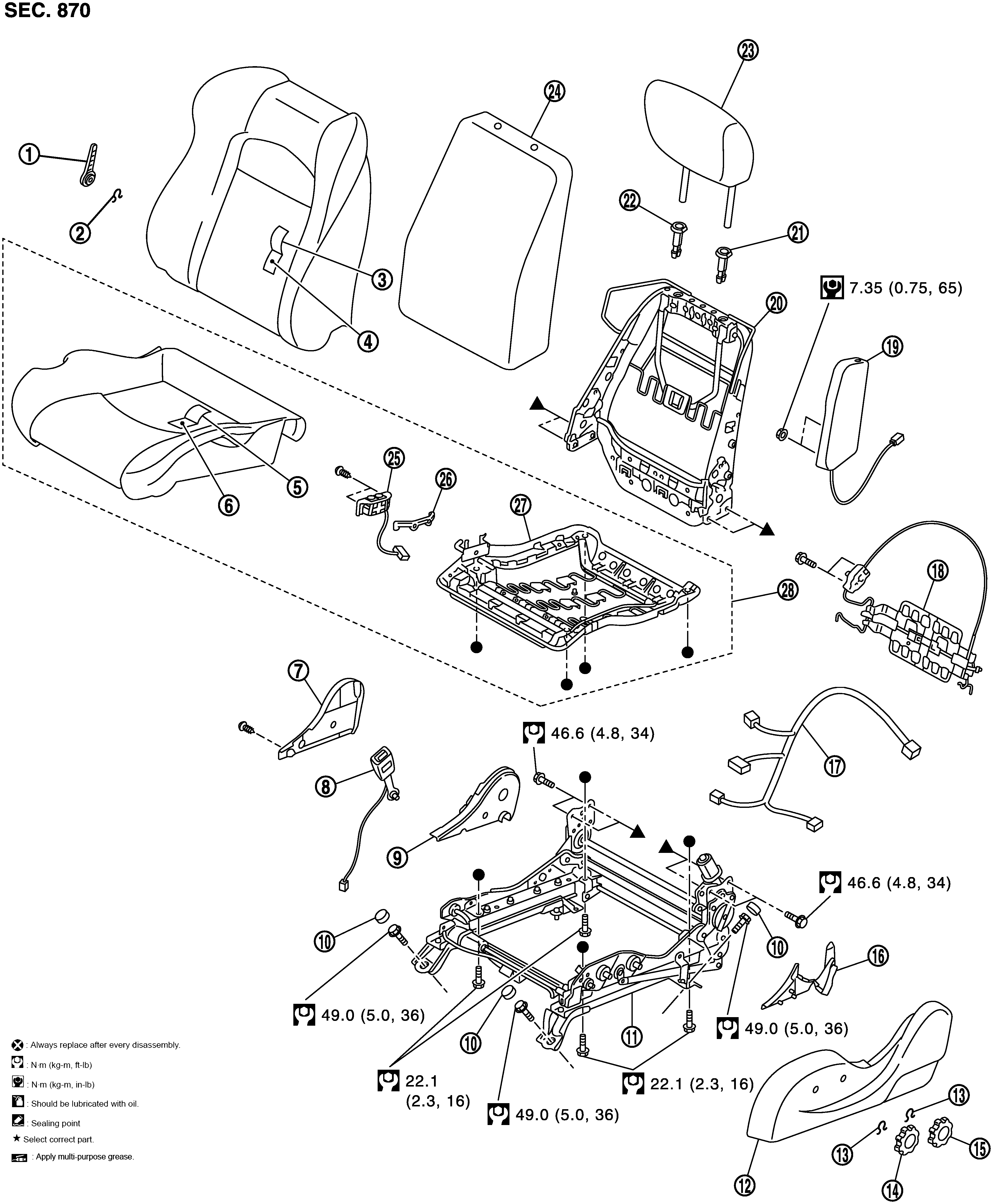

| 1. |
Lumbar support lever knob (Driver seat only) |
2. |
Snap ring (Driver seat only) |
3. |
Seatback trim |
| 4. |
Seatback pad |
5. |
Seat cushion trim |
6. |
Seat cushion pad |
| 7. |
Seat cushion inner finisher |
8. |
Seat belt buckle |
9. |
Reclining device inner cover |
| 10. |
Bolt cap |
11. |
Seat adjuster assembly |
12. |
Seat cushion outer finisher |
| 13. |
Snap ring (Driver seat only) |
14. |
Thigh support dial (Driver seat only) |
15. |
Lifter dial (Driver seat only) |
| 16. |
Reclining device outer cover |
17. |
Seat harness |
18. |
Lumbar support unit (Driver seat only) |
| 19. |
Side air bag module |
20. |
Seatback frame |
21. |
Headrest holder (locked) |
| 22. |
Headrest holder (free) |
23. |
Headrest |
24. |
Seatback silencer |
| 25. |
Power seat switch |
26. |
Switch bracket cover |
27. |
Seat cushion frame |
| 28. |
Seat cushion assembly (USA/Canada model passenger only) |
|
|
|
|
 |
: N•m (kg - m, ft - lb) |
 |
: N•m (kg - m, in - lb) |
,
: Indicates that the part is connected at points with same symbol in actual vehicle. |
