Wiring Diagram - Intelligent Key System/Engine Start Function -

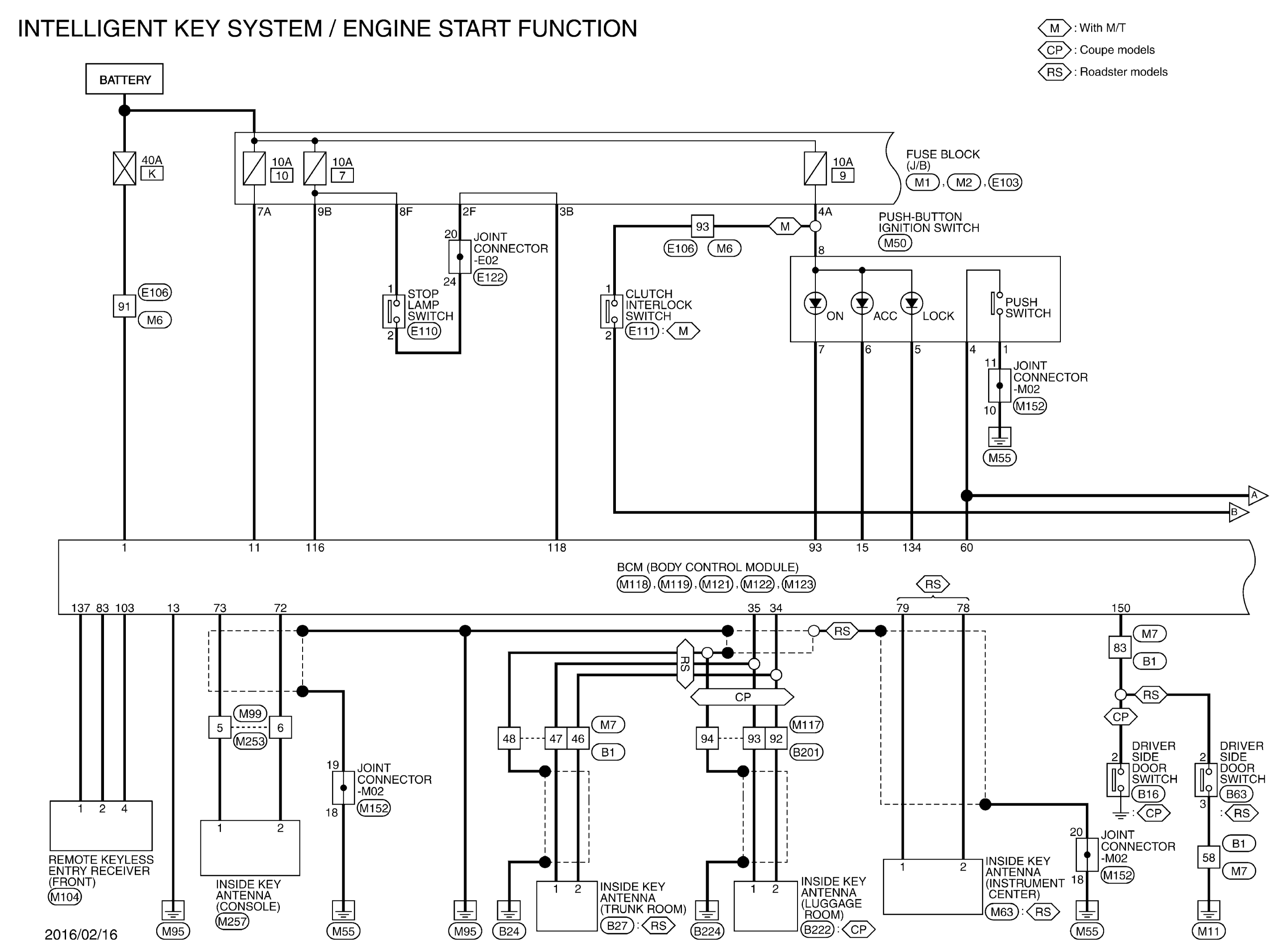

GNSJRKWF8396GB-396

Courtesy of NISSAN NORTH AMERICA, INC.

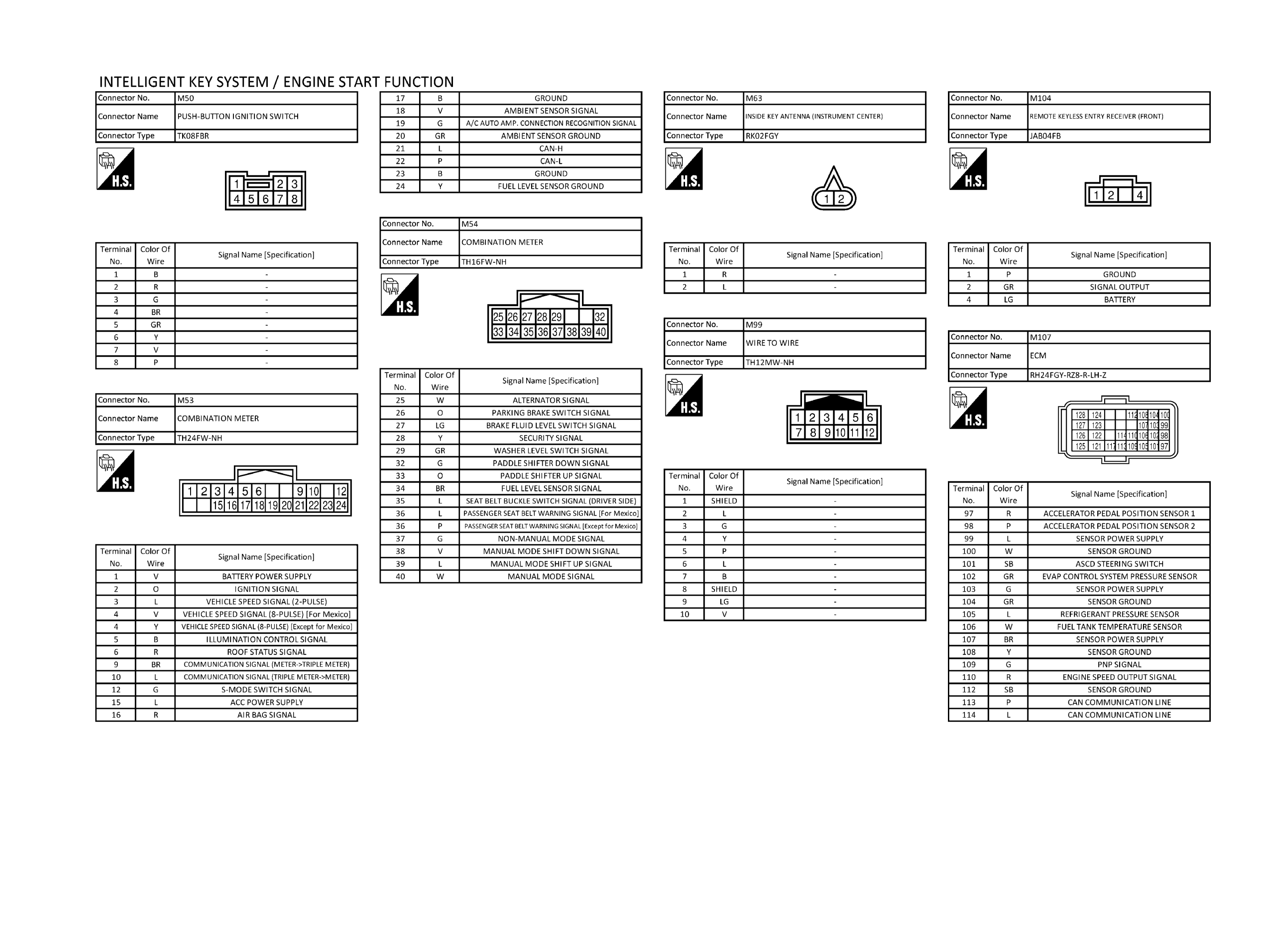

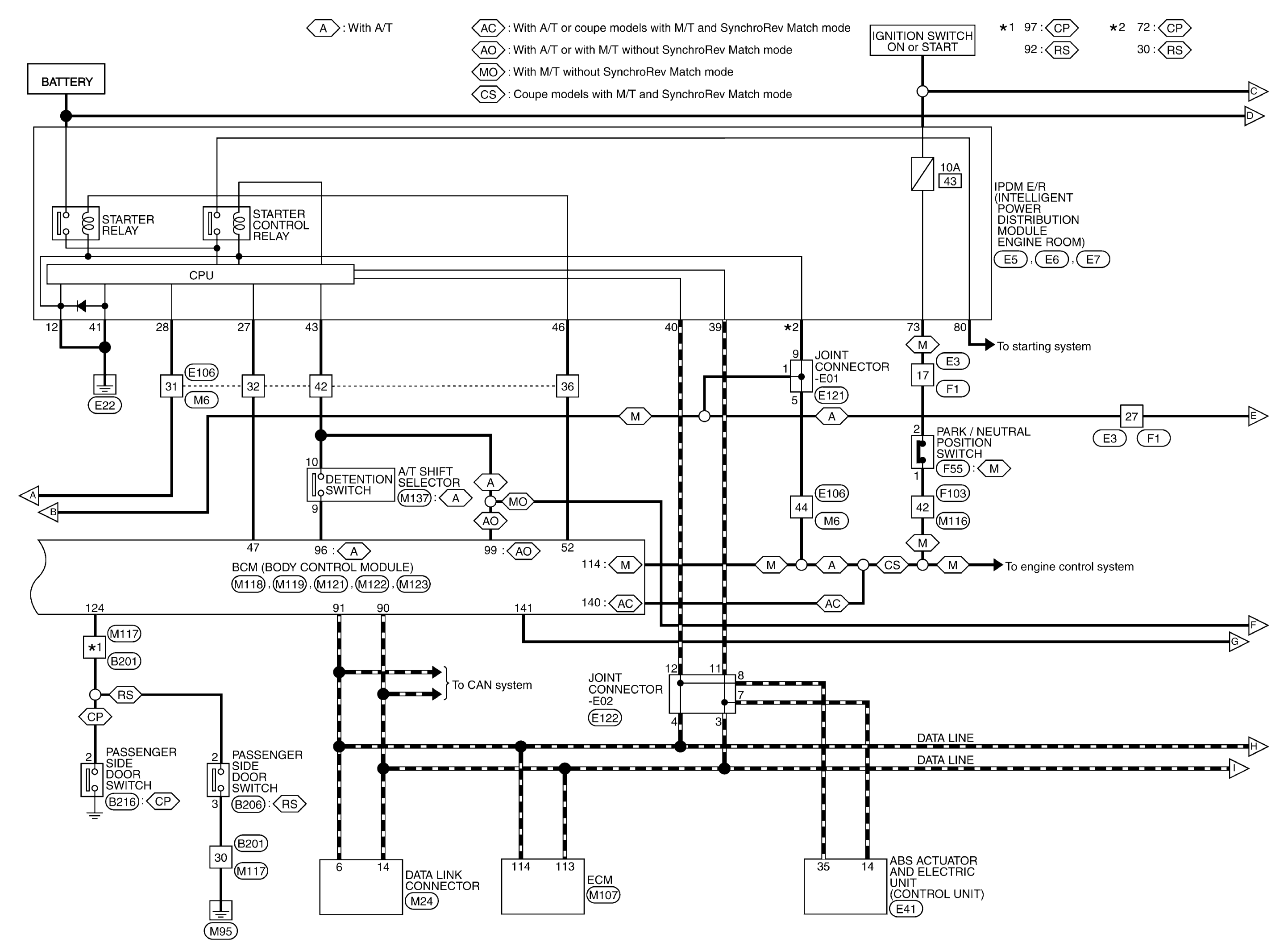

GNSJRKWF8397GB-397

Courtesy of NISSAN NORTH AMERICA, INC.

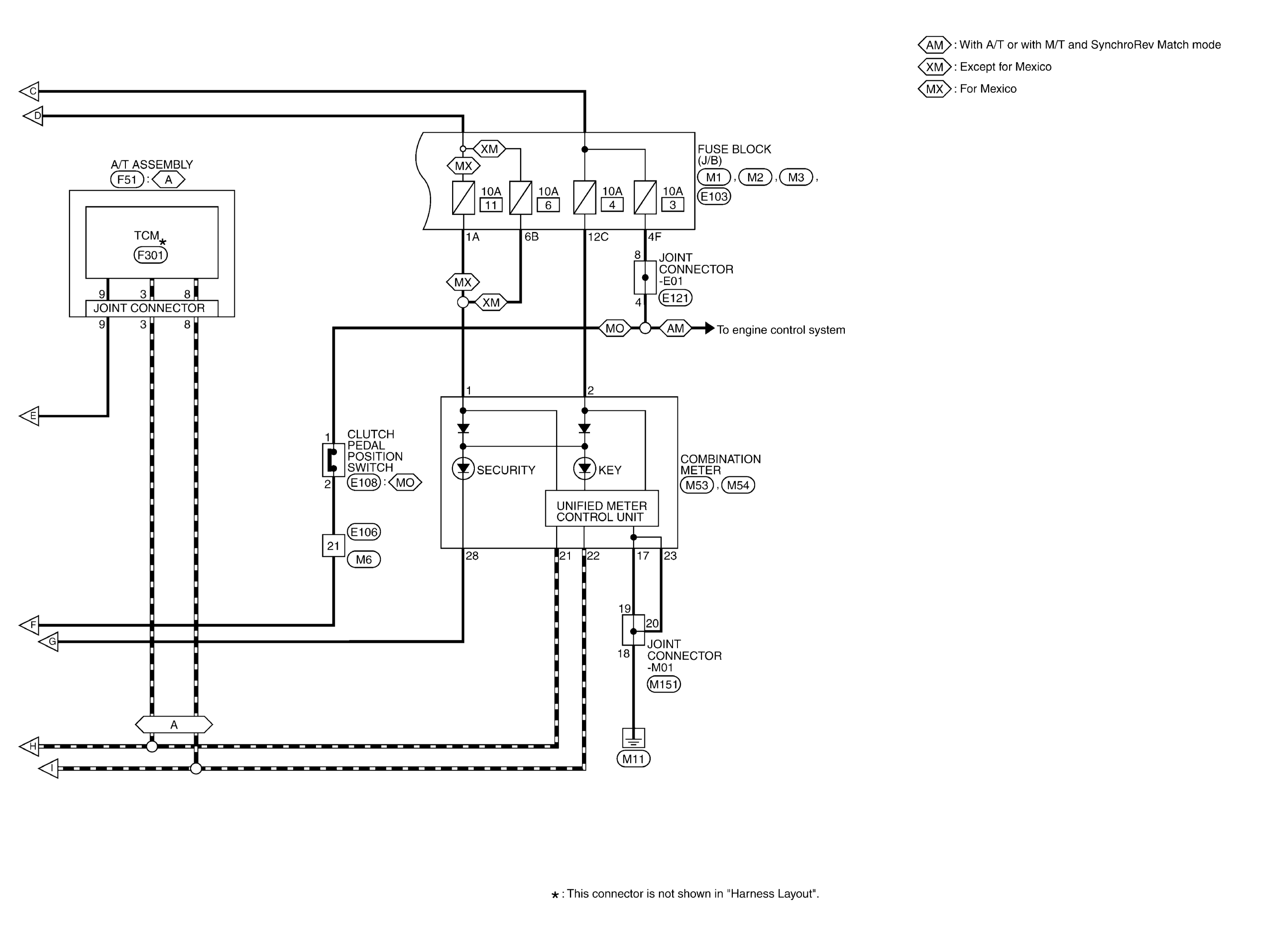

GNSJRKWF8398GB-398

Courtesy of NISSAN NORTH AMERICA, INC.

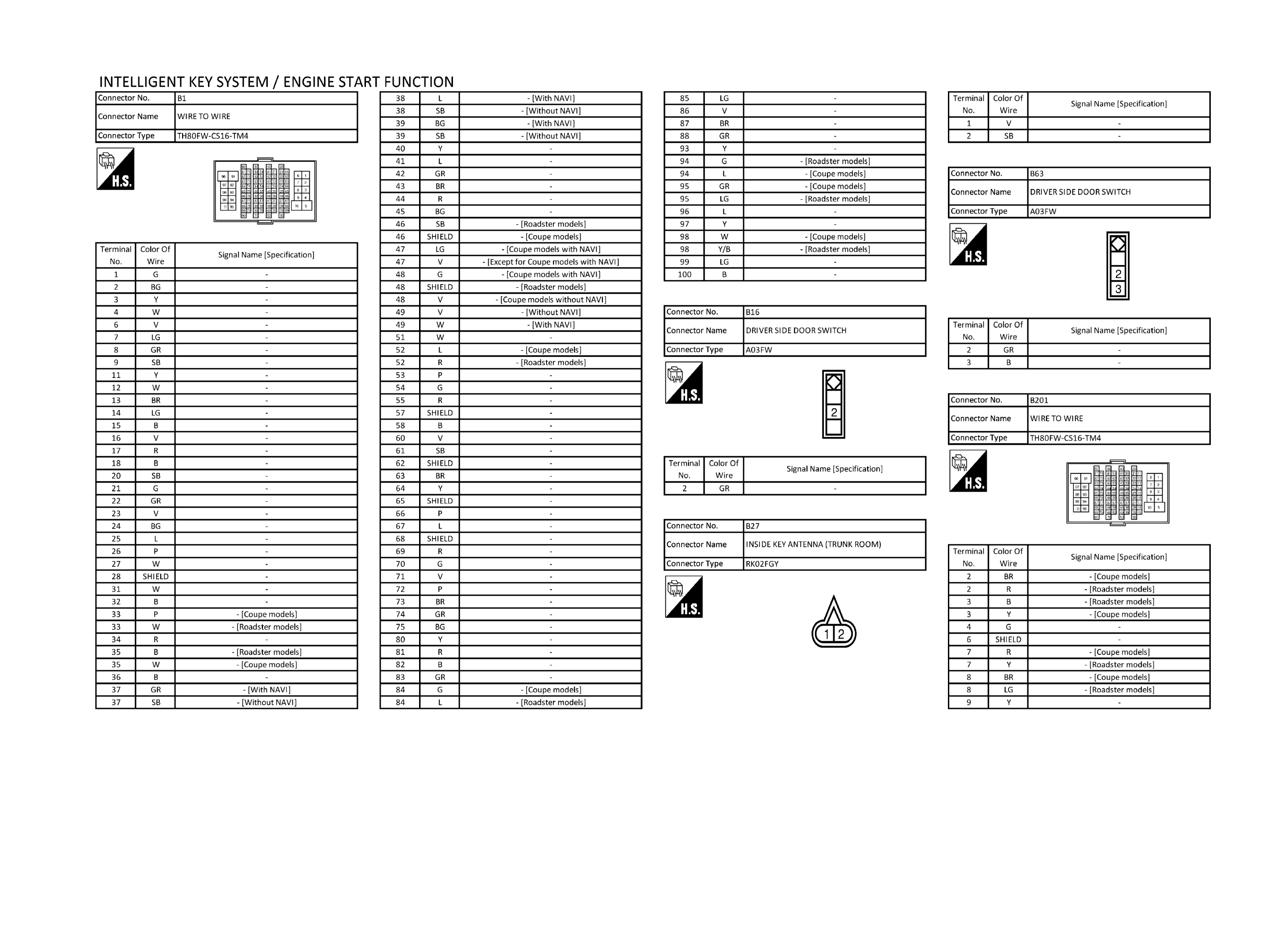

GNSJRKWF8399GB-399

Courtesy of NISSAN NORTH AMERICA, INC.

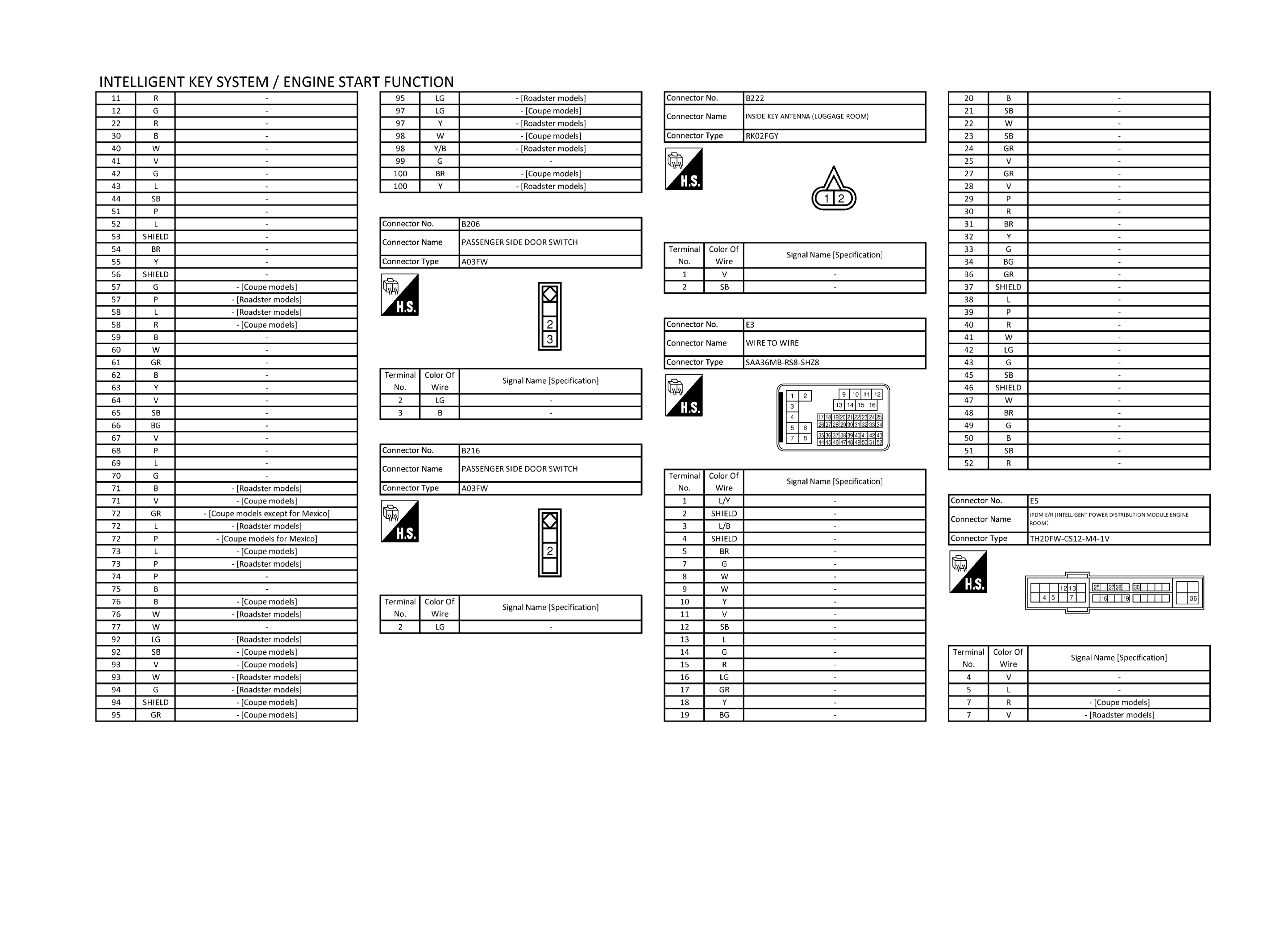

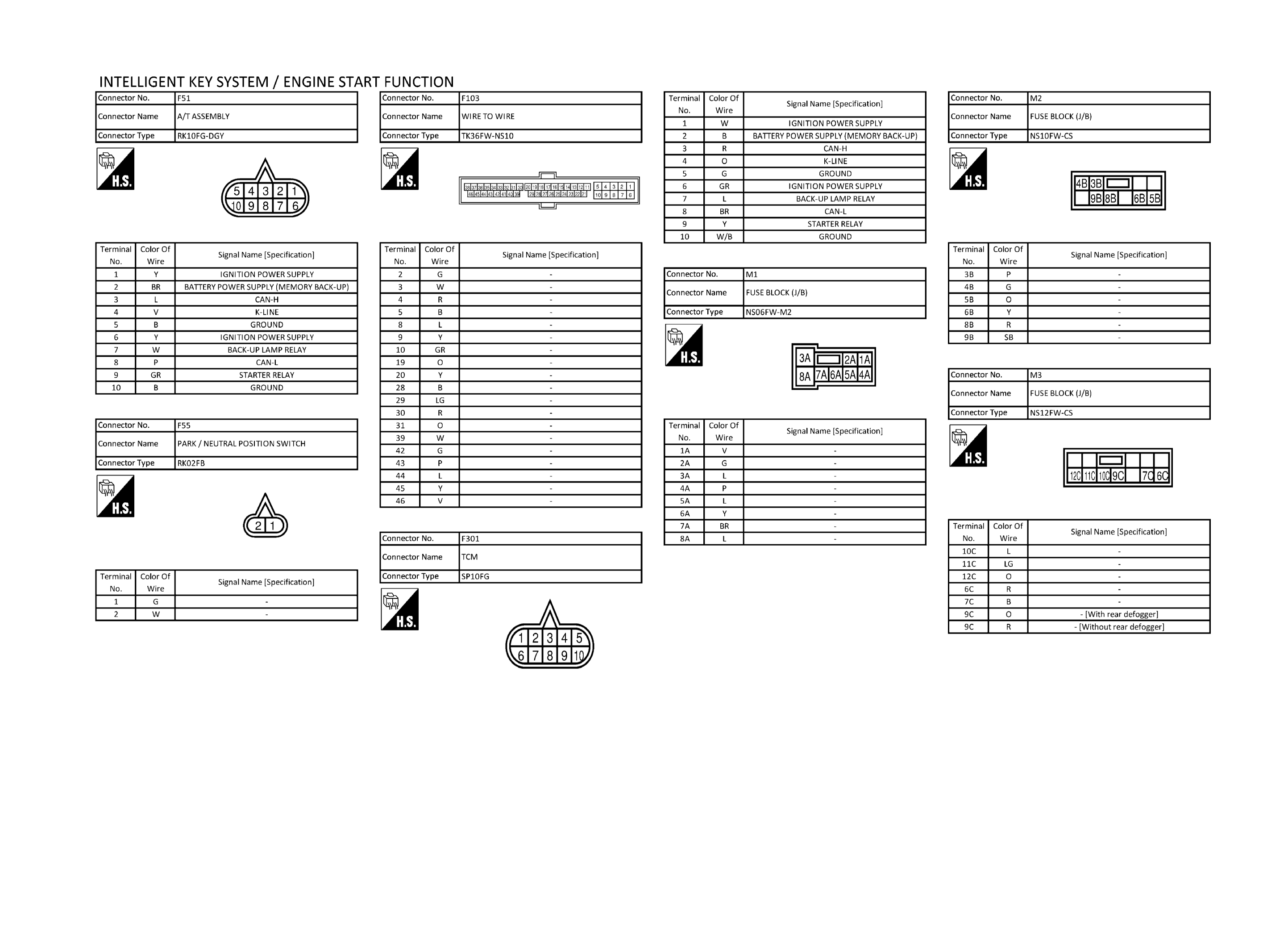

GNSJRKWF8512GB-512

Courtesy of NISSAN NORTH AMERICA, INC.

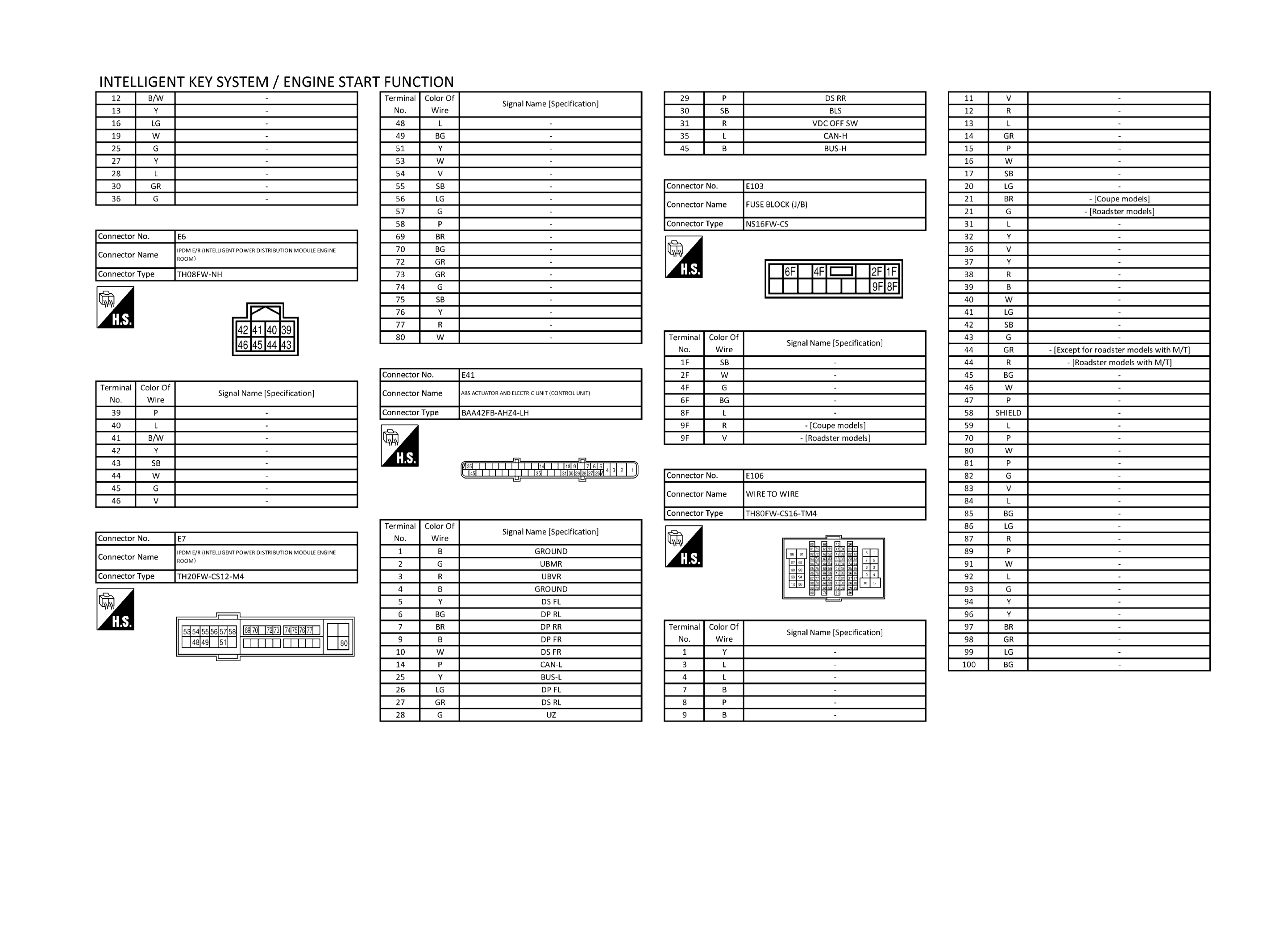

GNSJRKWF8513GB-513

Courtesy of NISSAN NORTH AMERICA, INC.

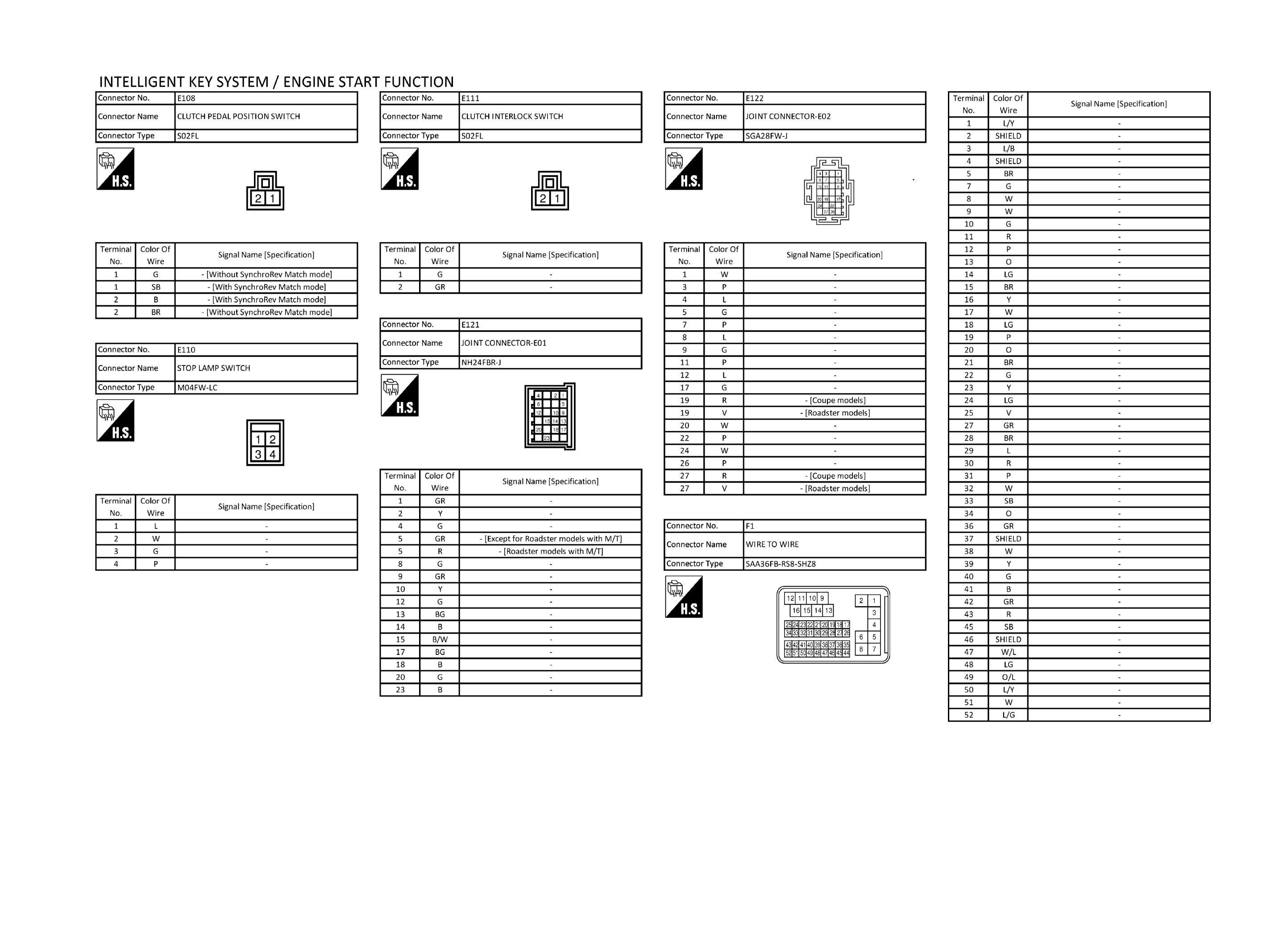

GNSJRKWF8514GB-514

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRKWF8515GB-515

Courtesy of NISSAN NORTH AMERICA, INC.

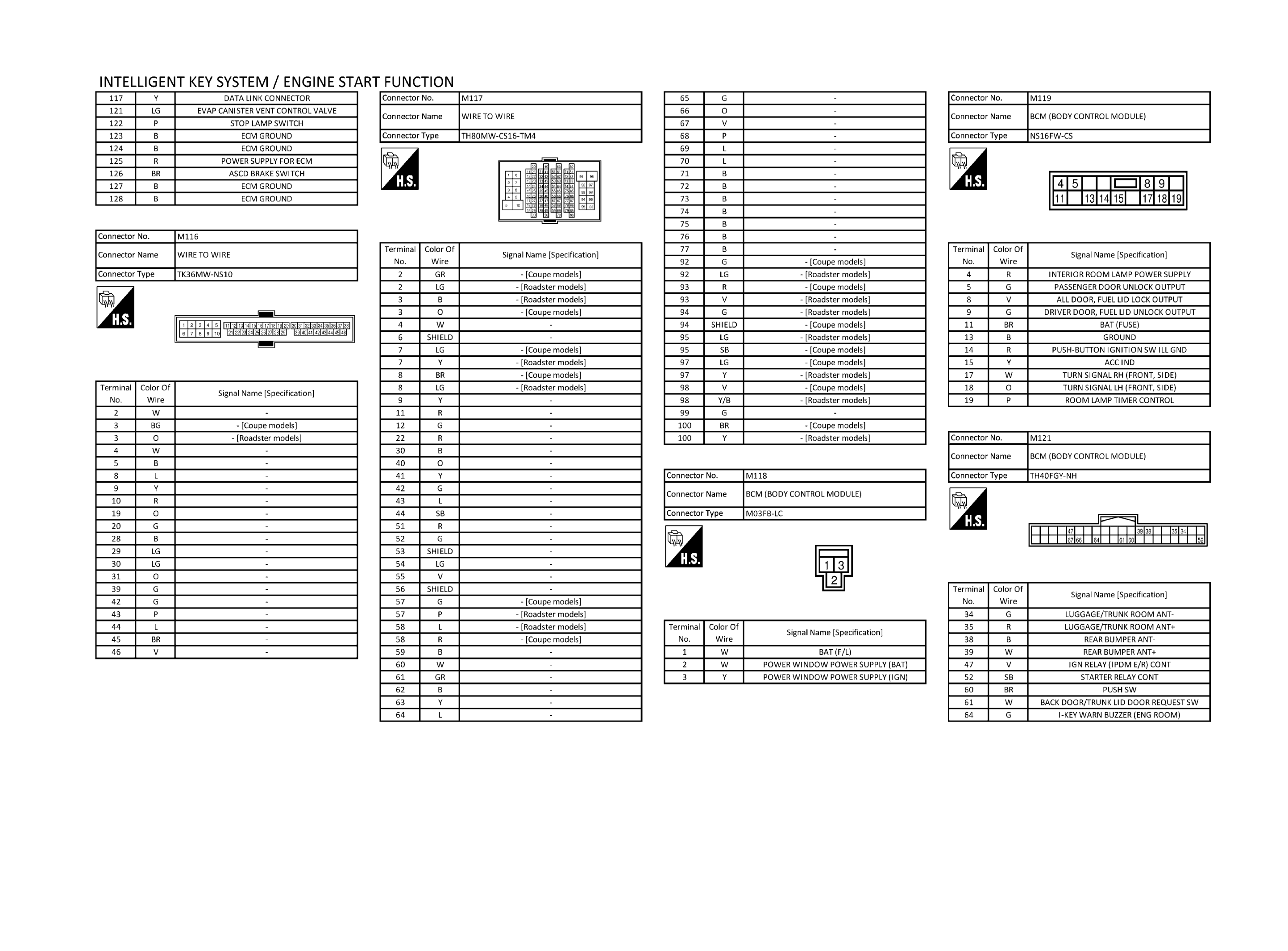

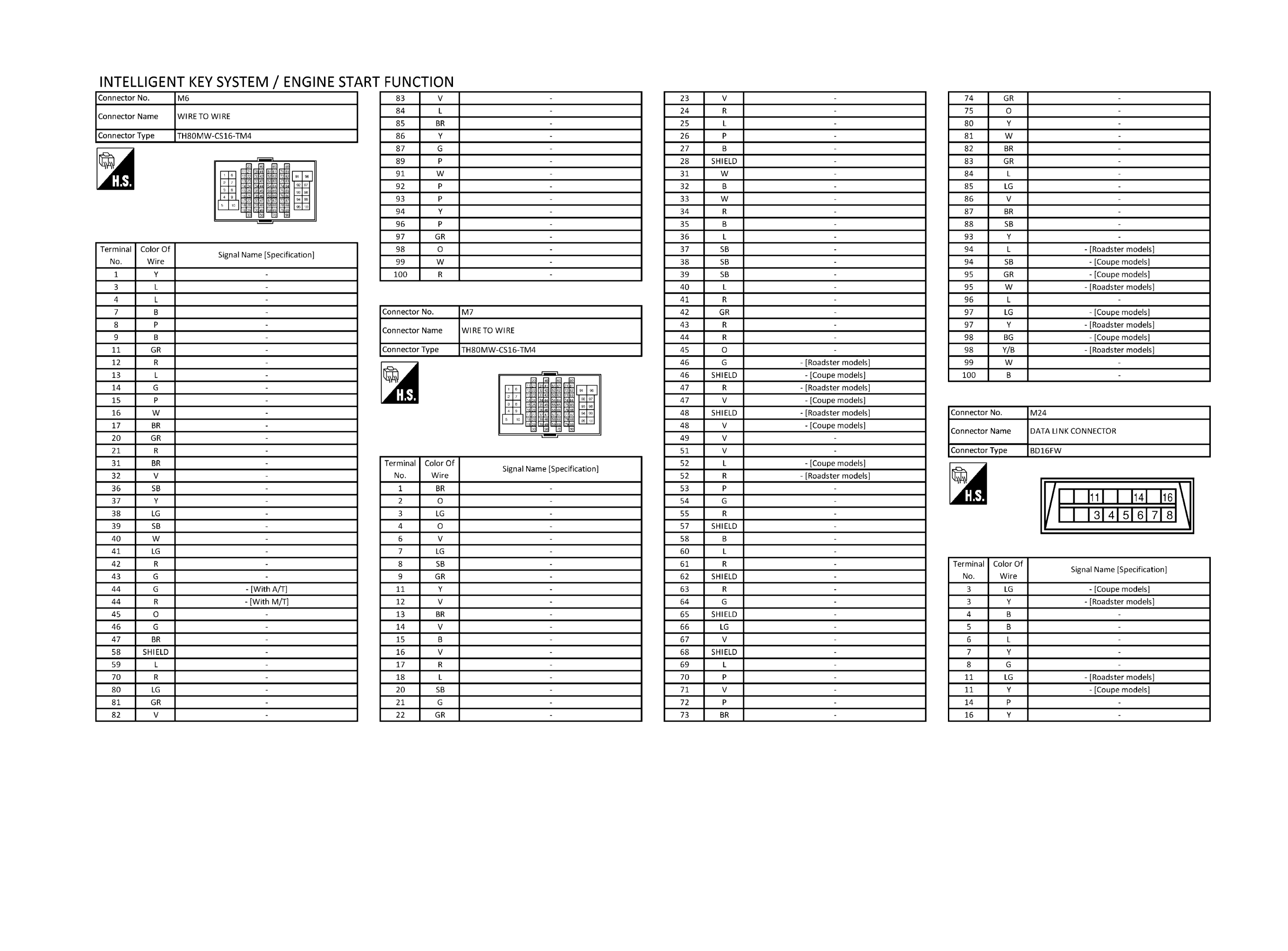

GNSJRKWF8516GB-516

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRKWF8517GB-517

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRKWF8518GB-518

Courtesy of NISSAN NORTH AMERICA, INC.

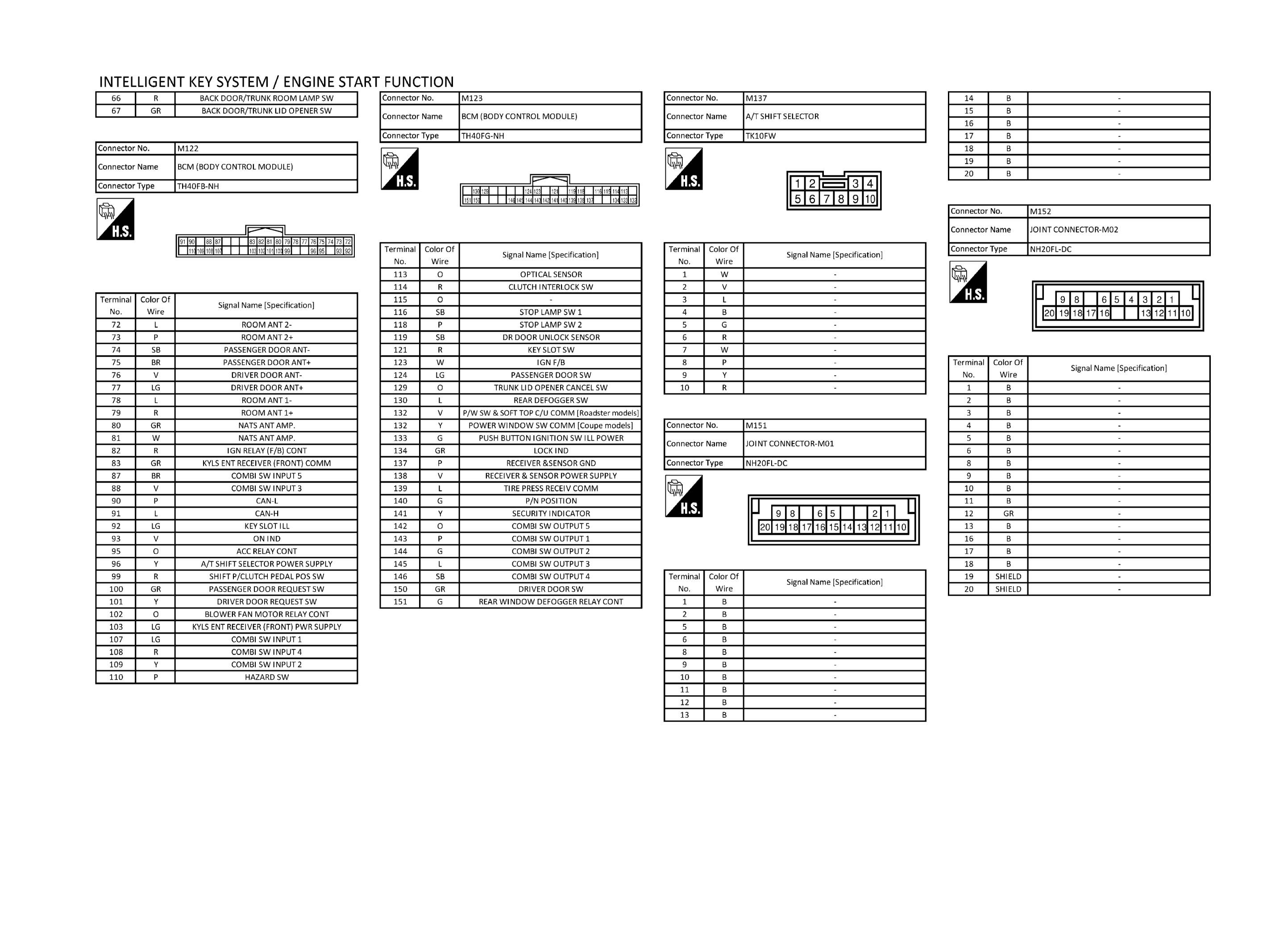

GNSJRKWF8519GB-519

Courtesy of NISSAN NORTH AMERICA, INC.

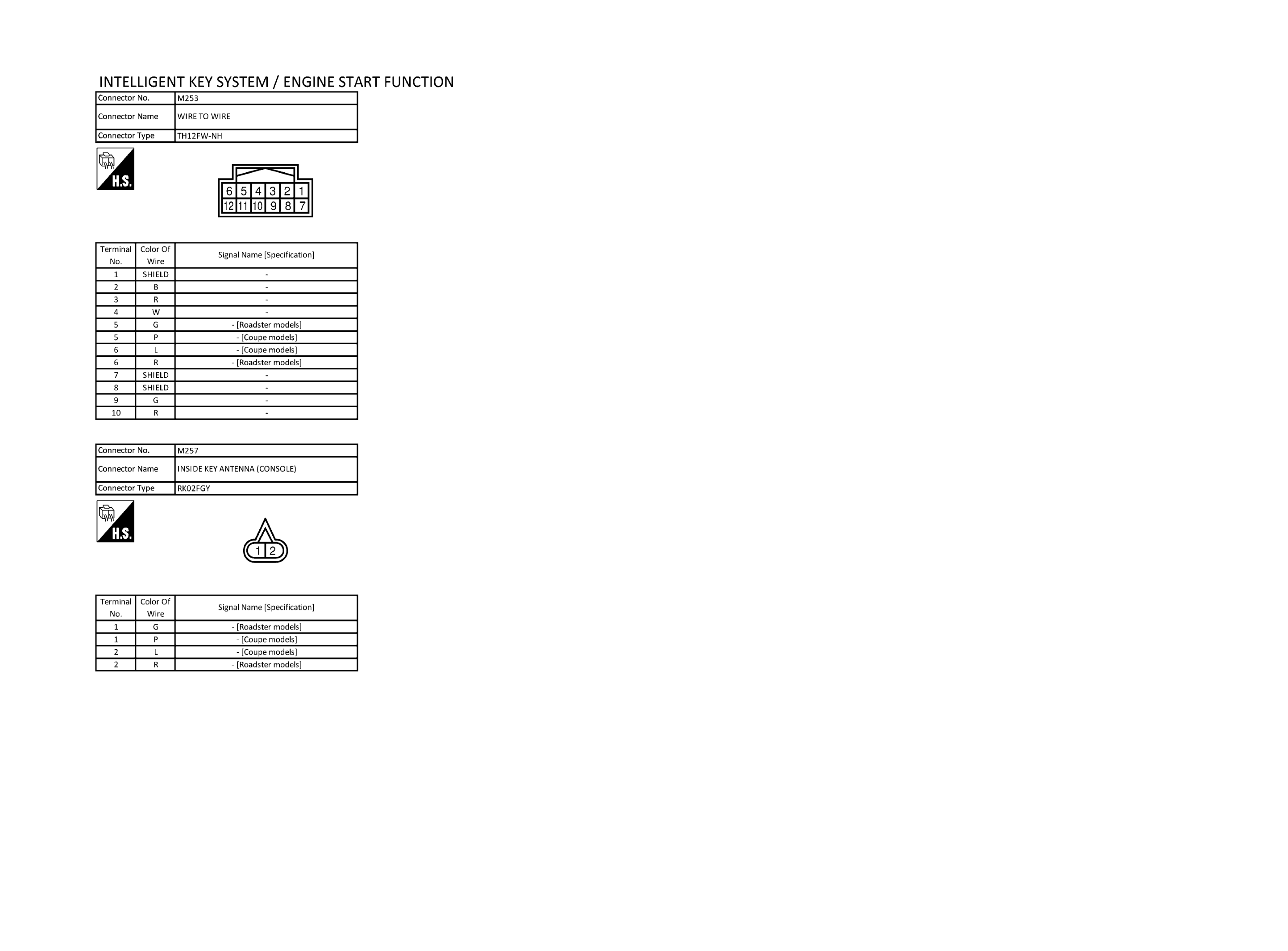

GNSJRKWF8520GB-520

Courtesy of NISSAN NORTH AMERICA, INC.
