Wiring Diagram - Engine Control System -

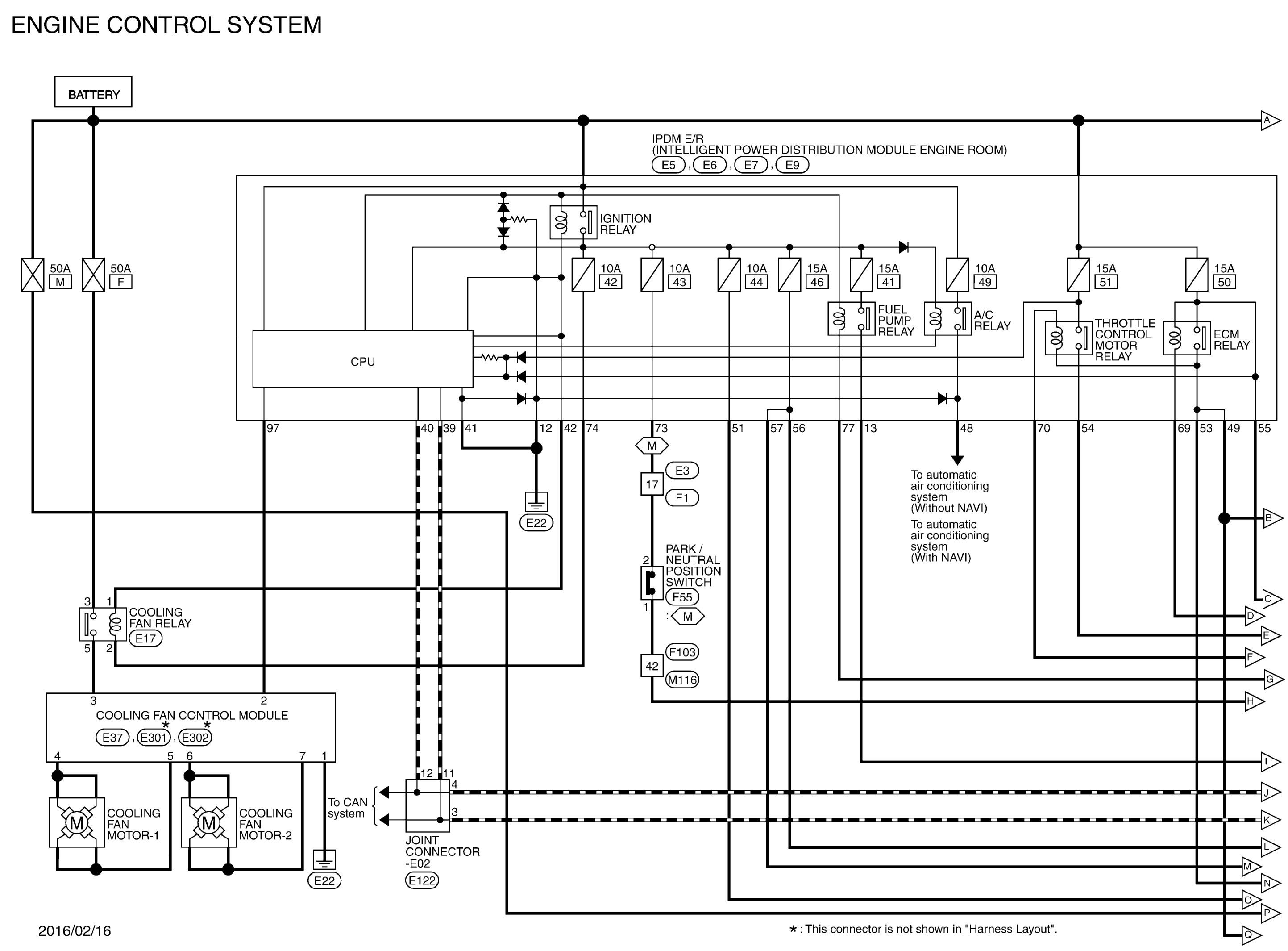

GNSJRBWD9209GB-209

Courtesy of NISSAN NORTH AMERICA, INC.

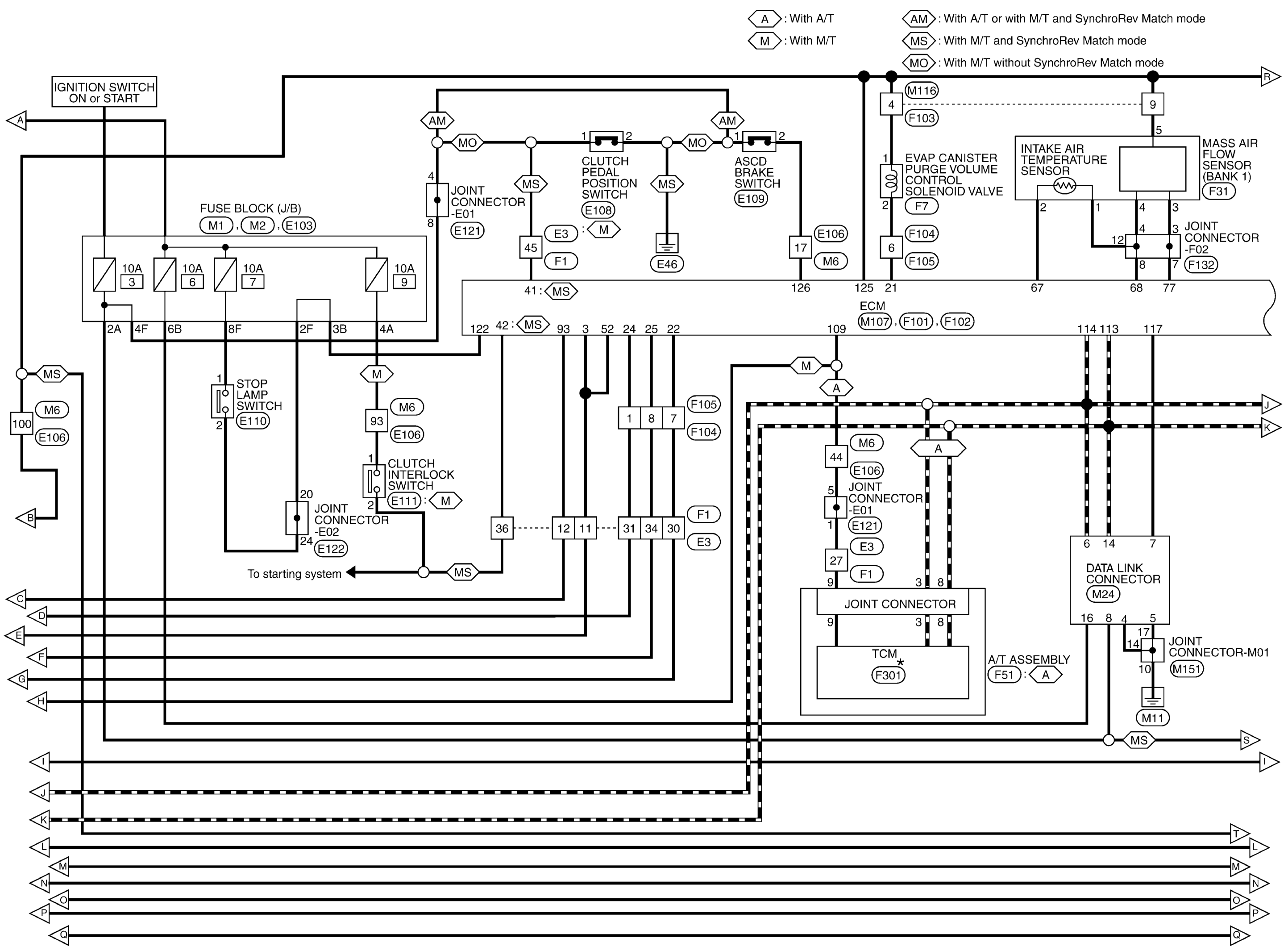

GNSJRBWD9210GB-210

Courtesy of NISSAN NORTH AMERICA, INC.

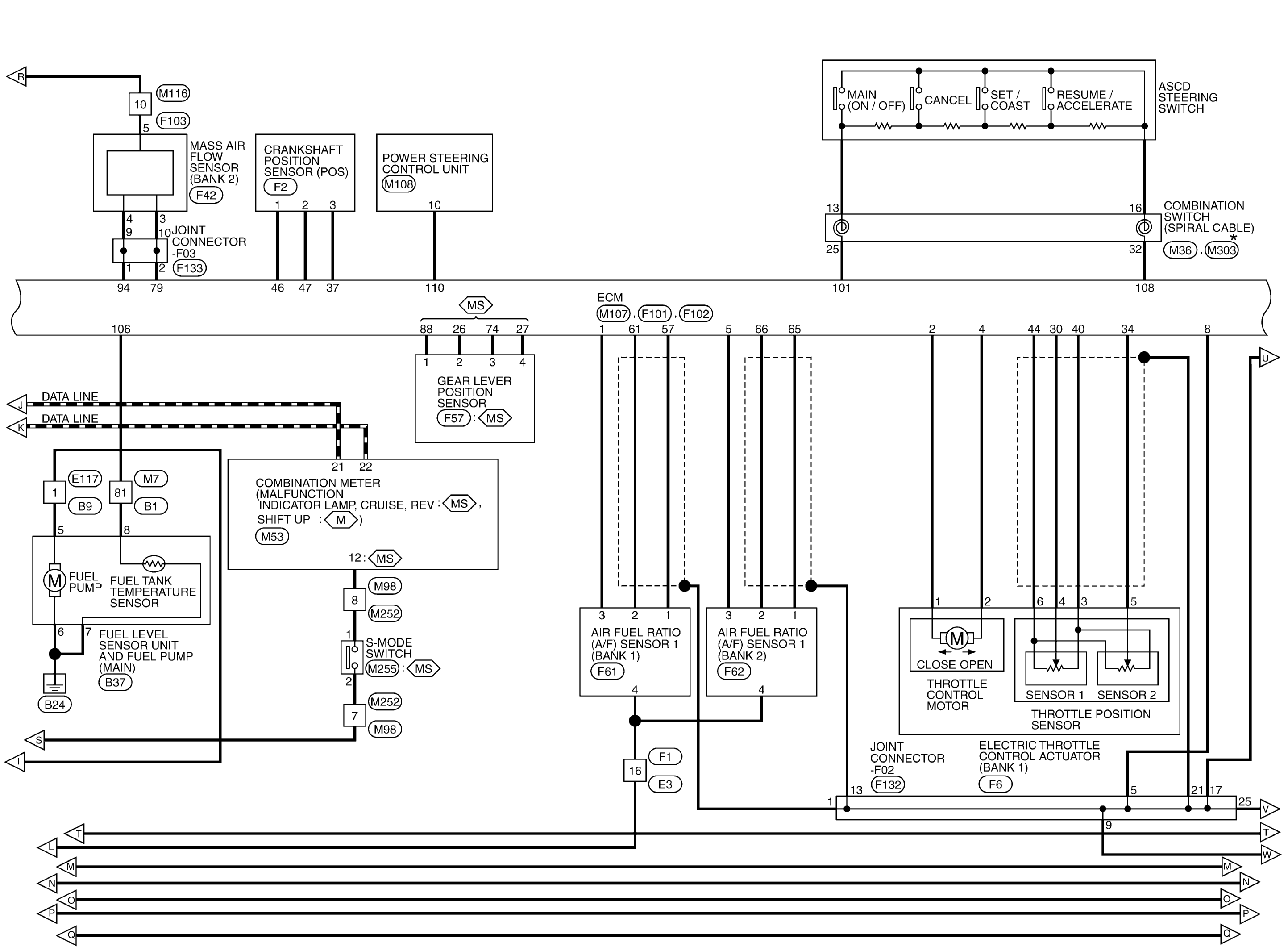

GNSJRBWD9211GB-211

Courtesy of NISSAN NORTH AMERICA, INC.

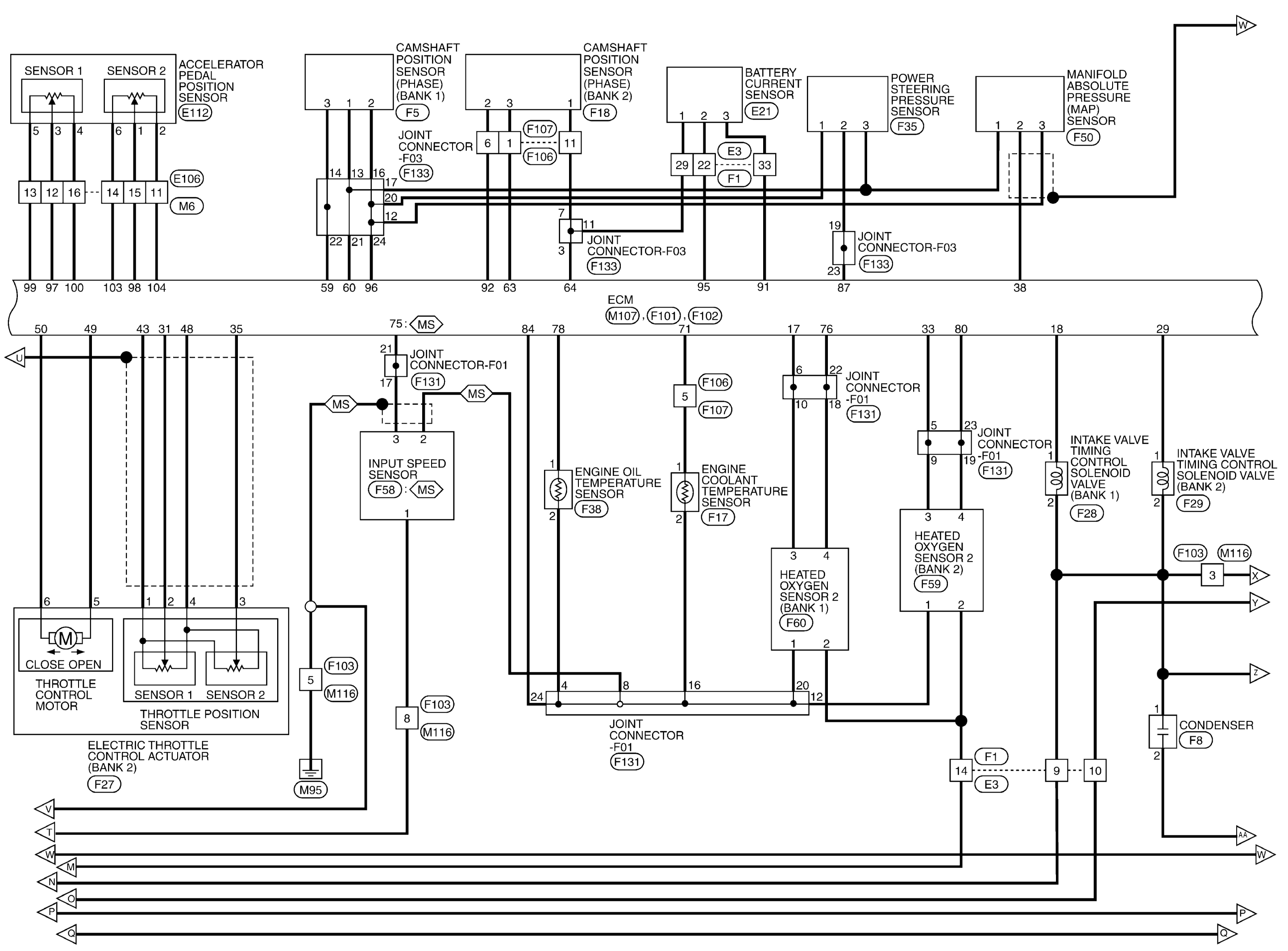

GNSJRBWD9212GB-212

Courtesy of NISSAN NORTH AMERICA, INC.

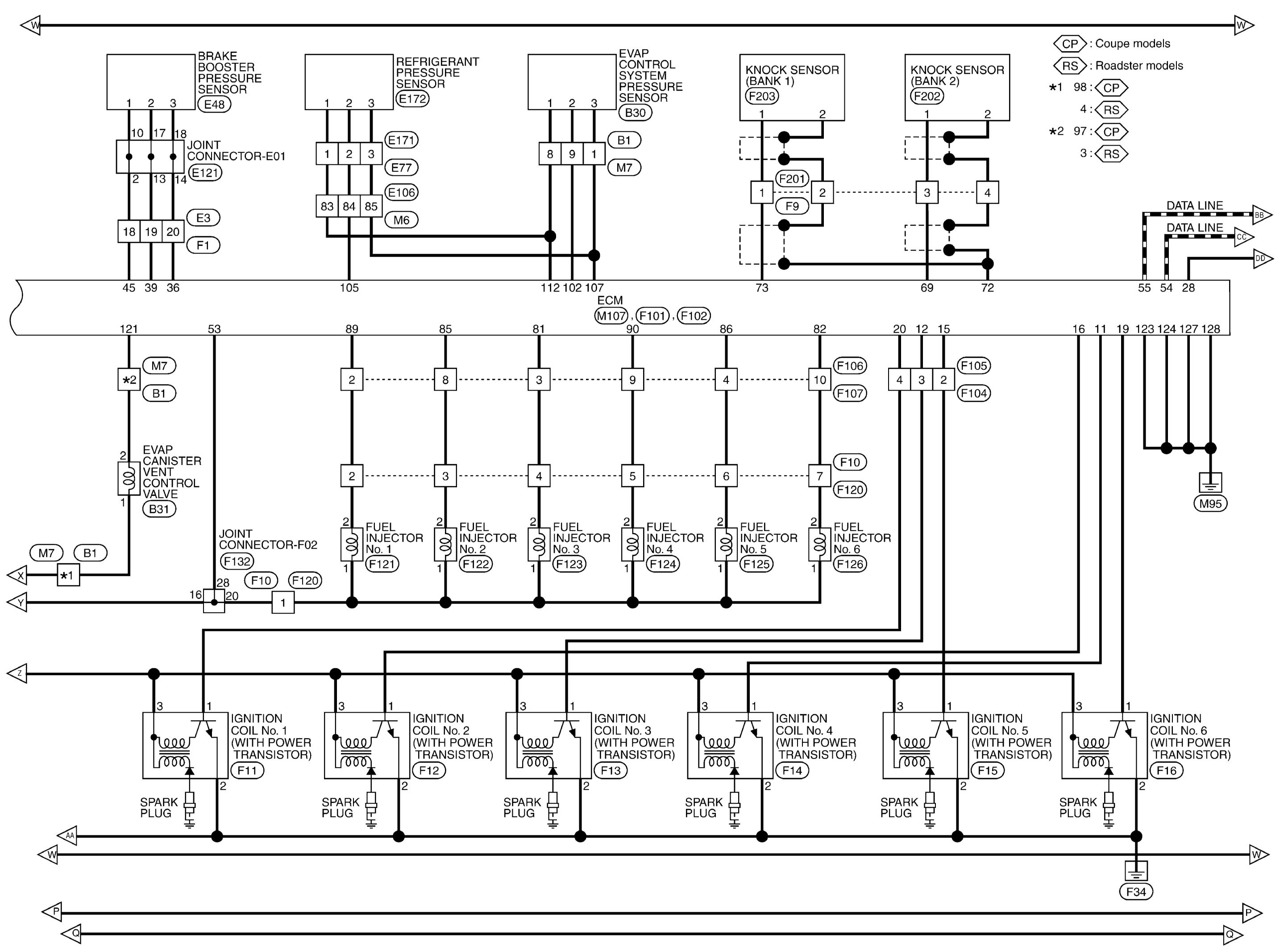

GNSJRBWD9213GB-213

Courtesy of NISSAN NORTH AMERICA, INC.

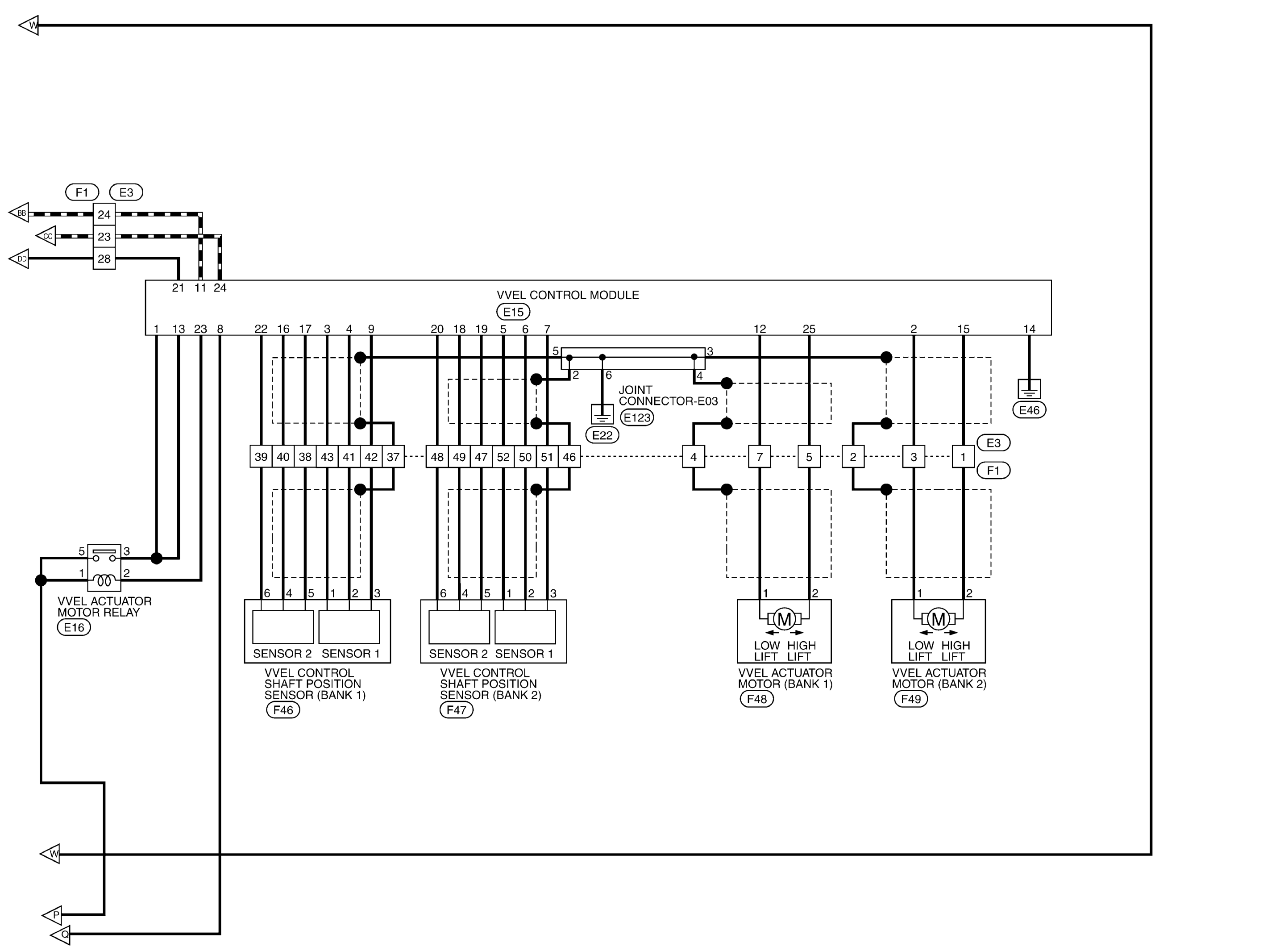

GNSJRBWD9214GB-214

Courtesy of NISSAN NORTH AMERICA, INC.

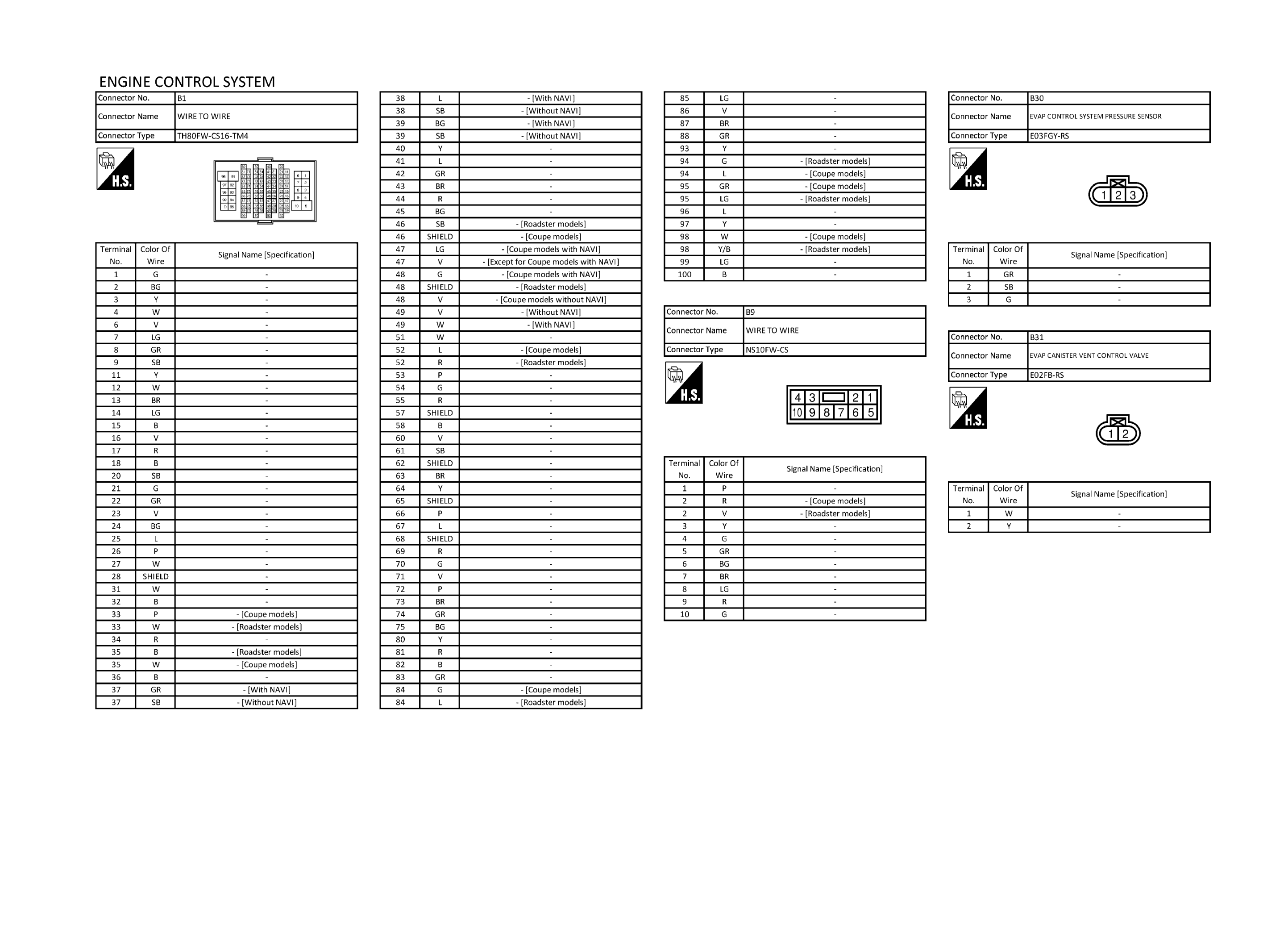

GNSJRBWD9215GB-215

Courtesy of NISSAN NORTH AMERICA, INC.

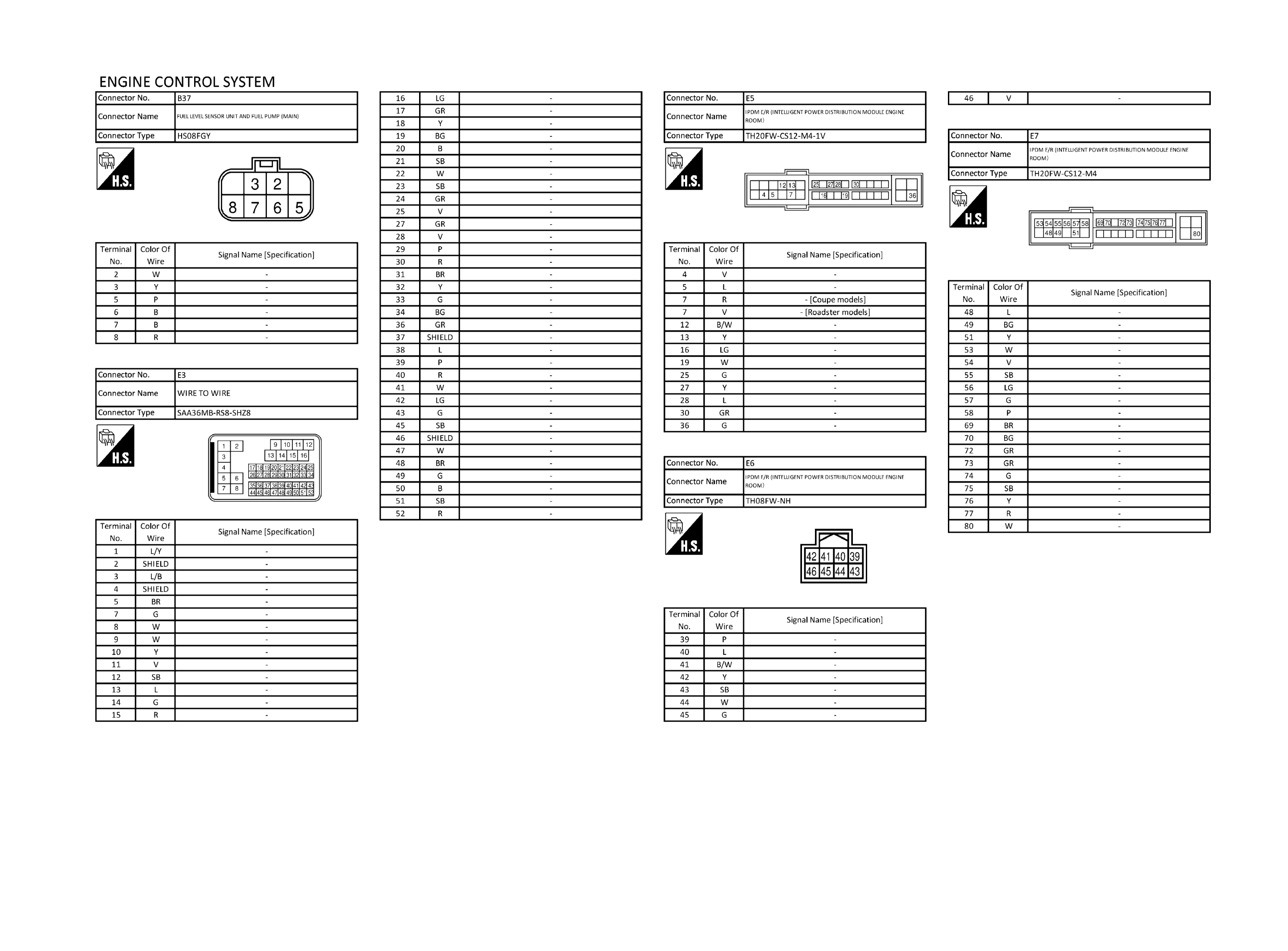

GNSJRBWD9216GB-216

Courtesy of NISSAN NORTH AMERICA, INC.

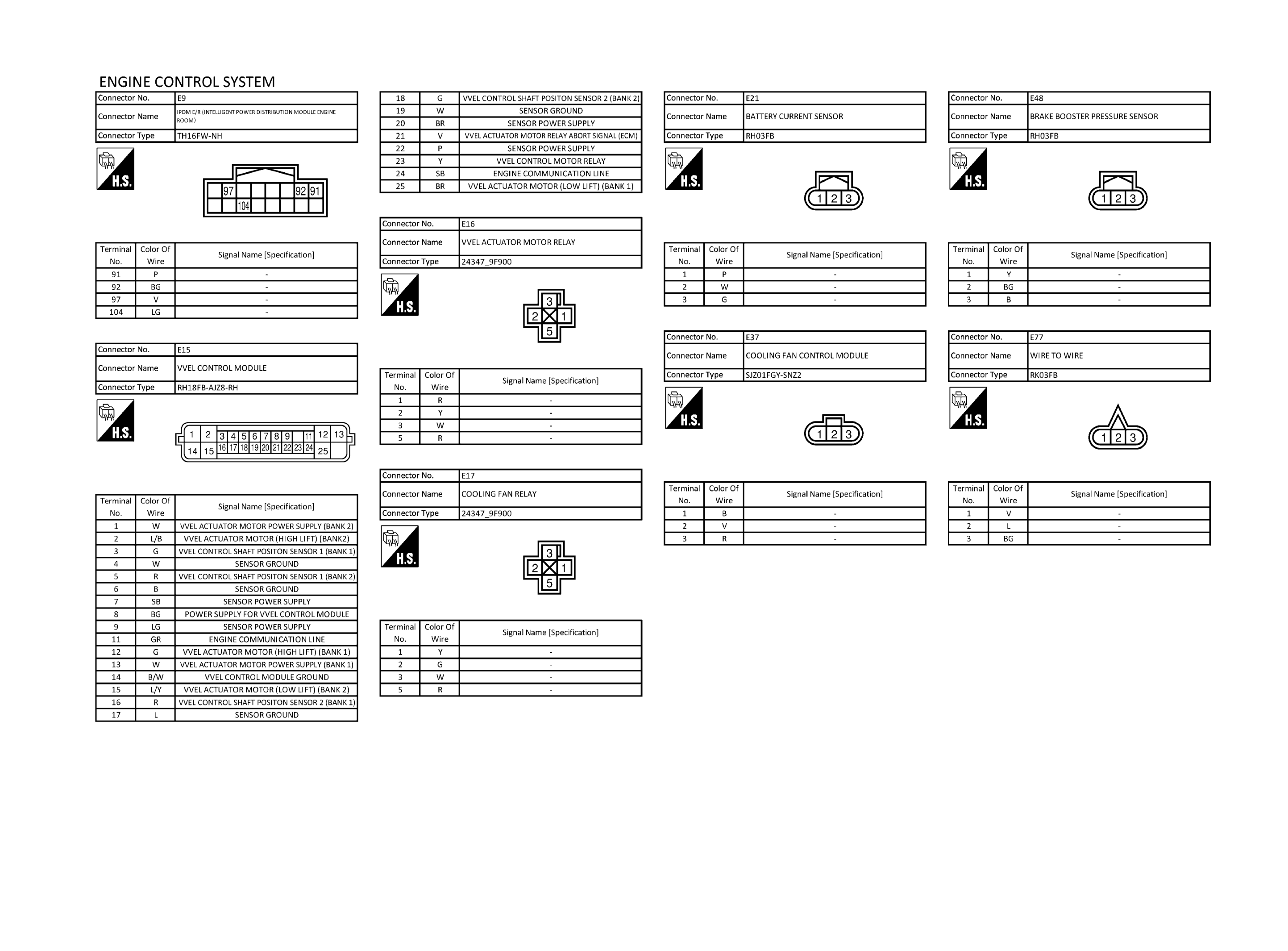

GNSJRBWD9217GB-217

Courtesy of NISSAN NORTH AMERICA, INC.

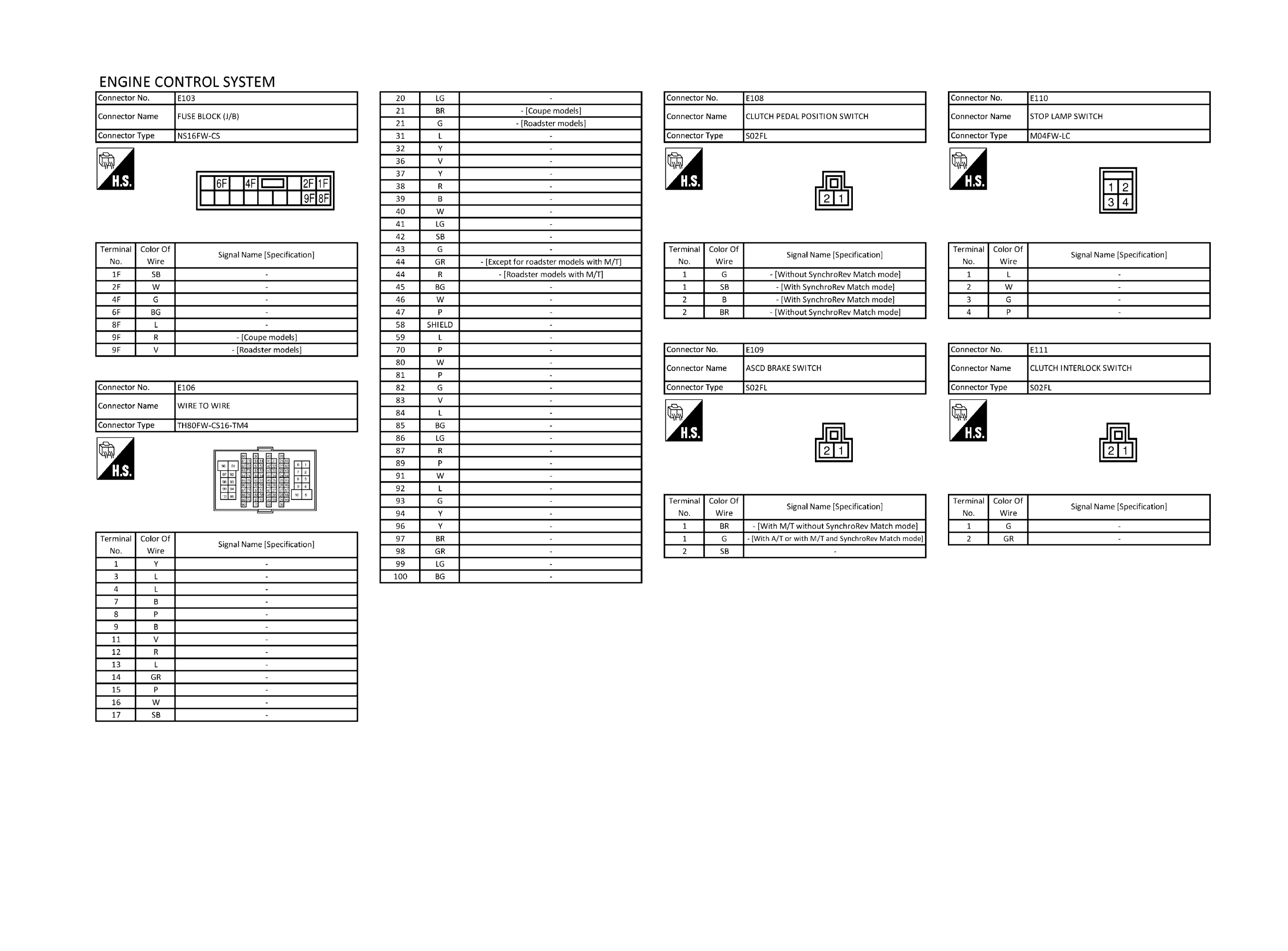

GNSJRBWD9218GB-218

Courtesy of NISSAN NORTH AMERICA, INC.

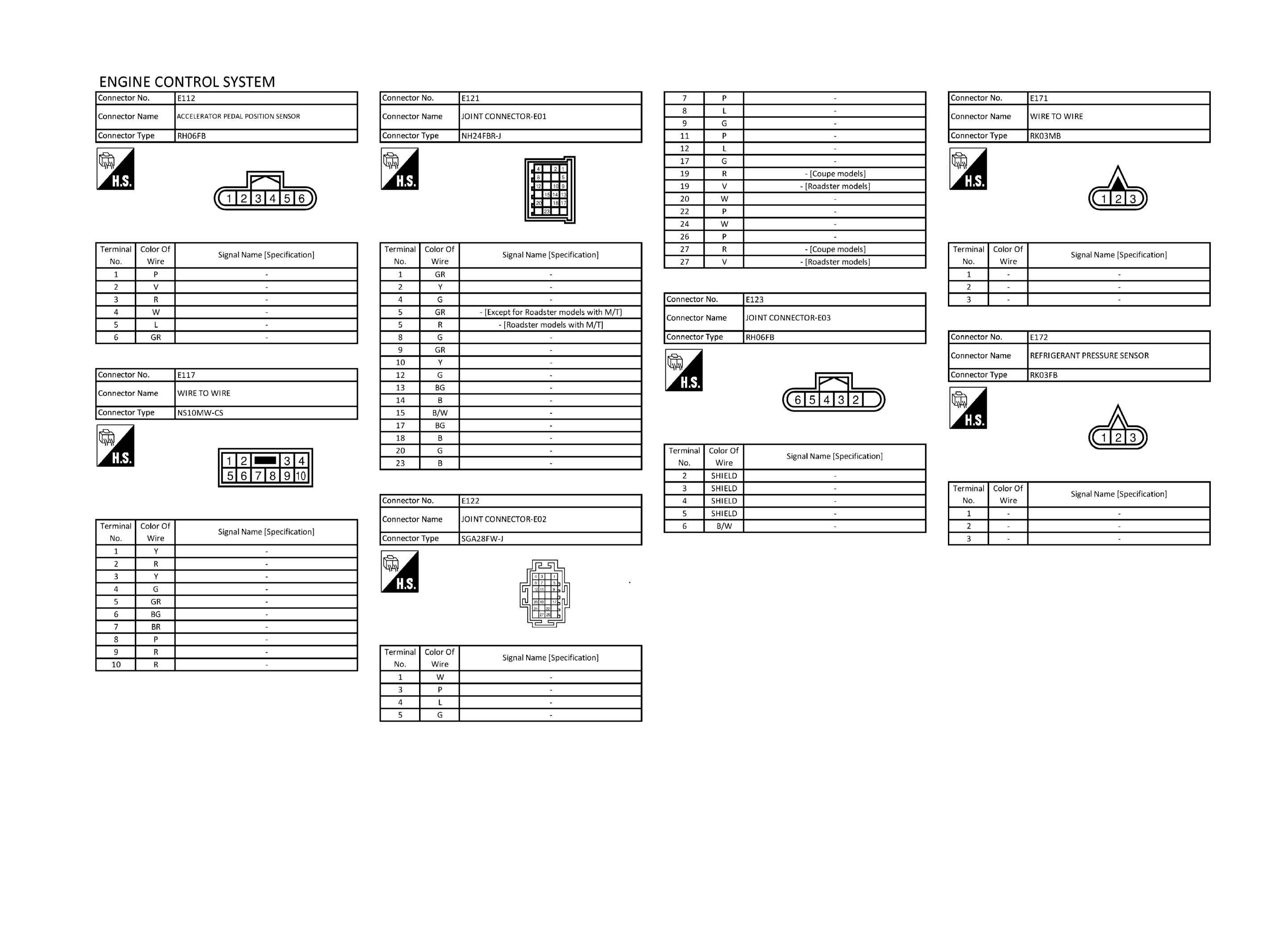

GNSJRBWD9219GB-219

Courtesy of NISSAN NORTH AMERICA, INC.

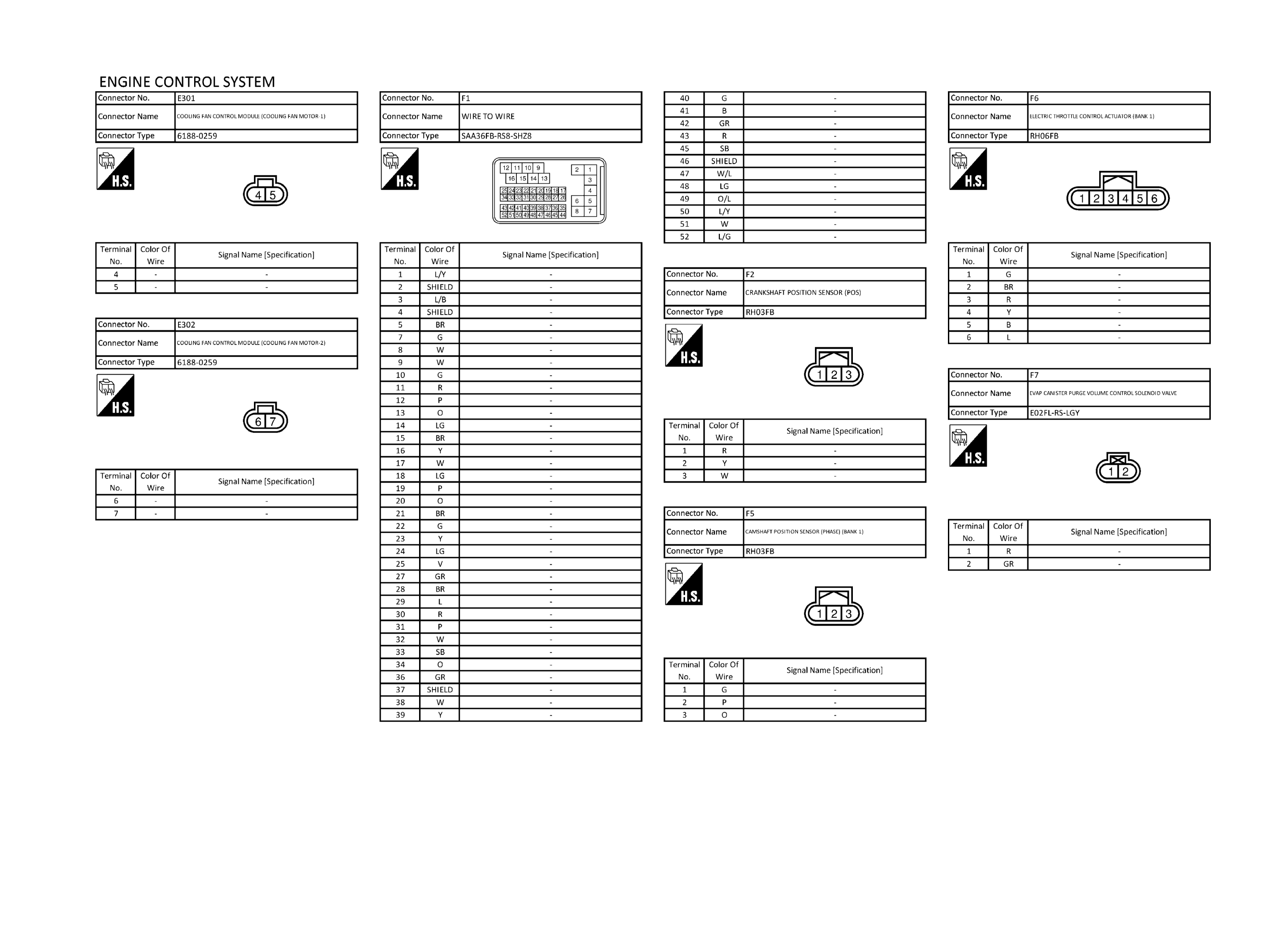

GNSJRBWD9220GB-220

Courtesy of NISSAN NORTH AMERICA, INC.

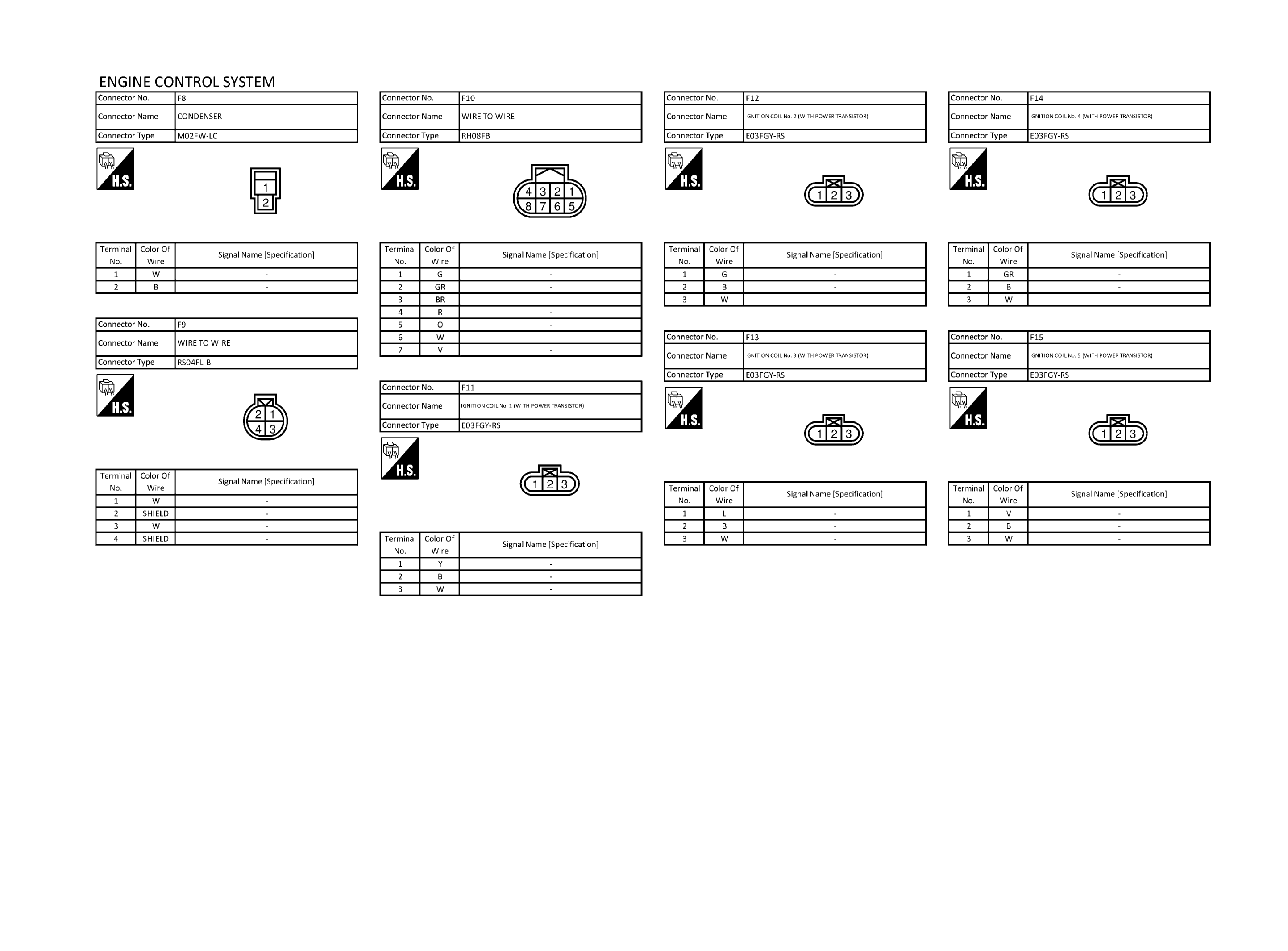

GNSJRBWD9221GB-221

Courtesy of NISSAN NORTH AMERICA, INC.

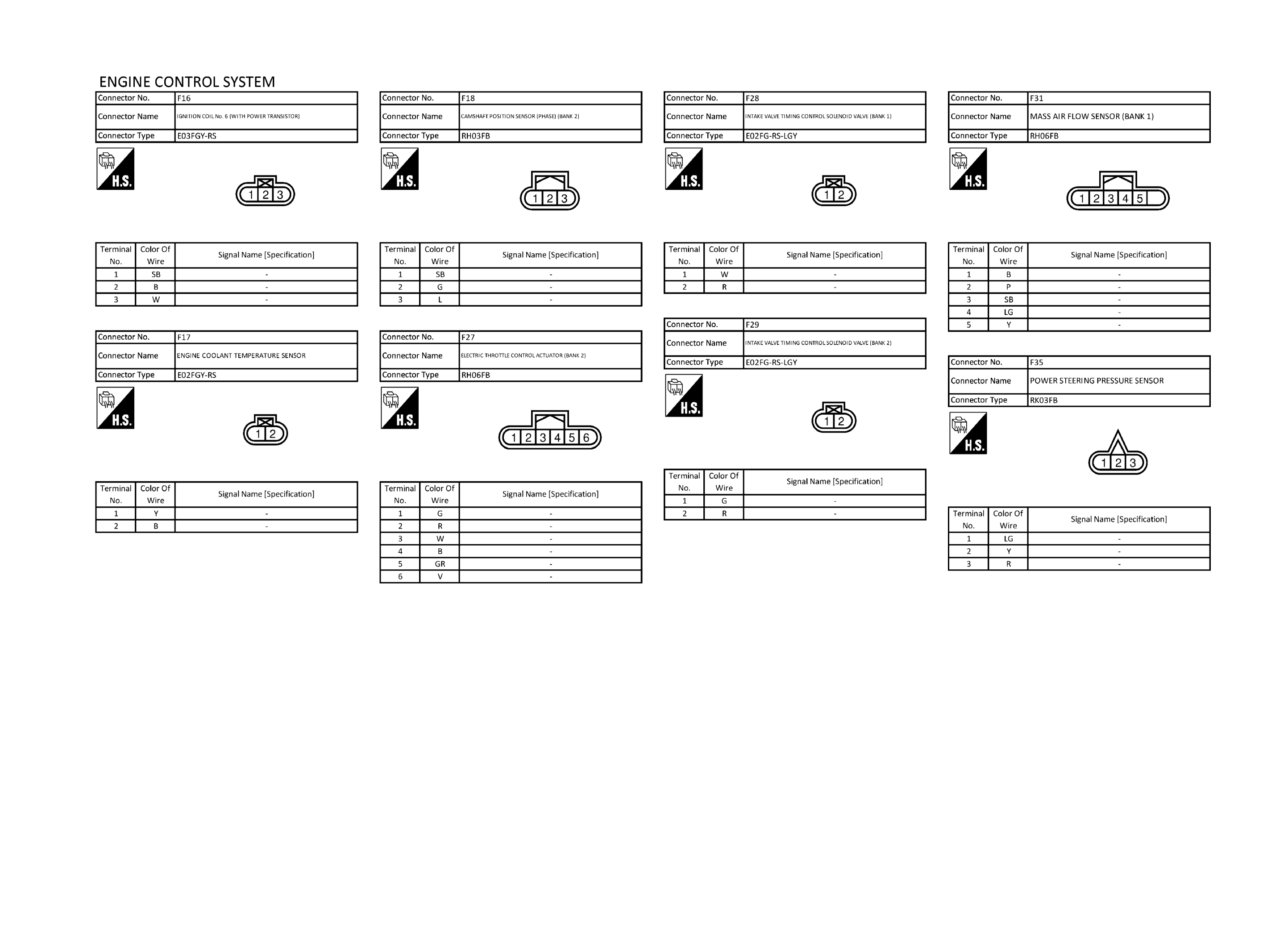

GNSJRBWD9222GB-222

Courtesy of NISSAN NORTH AMERICA, INC.

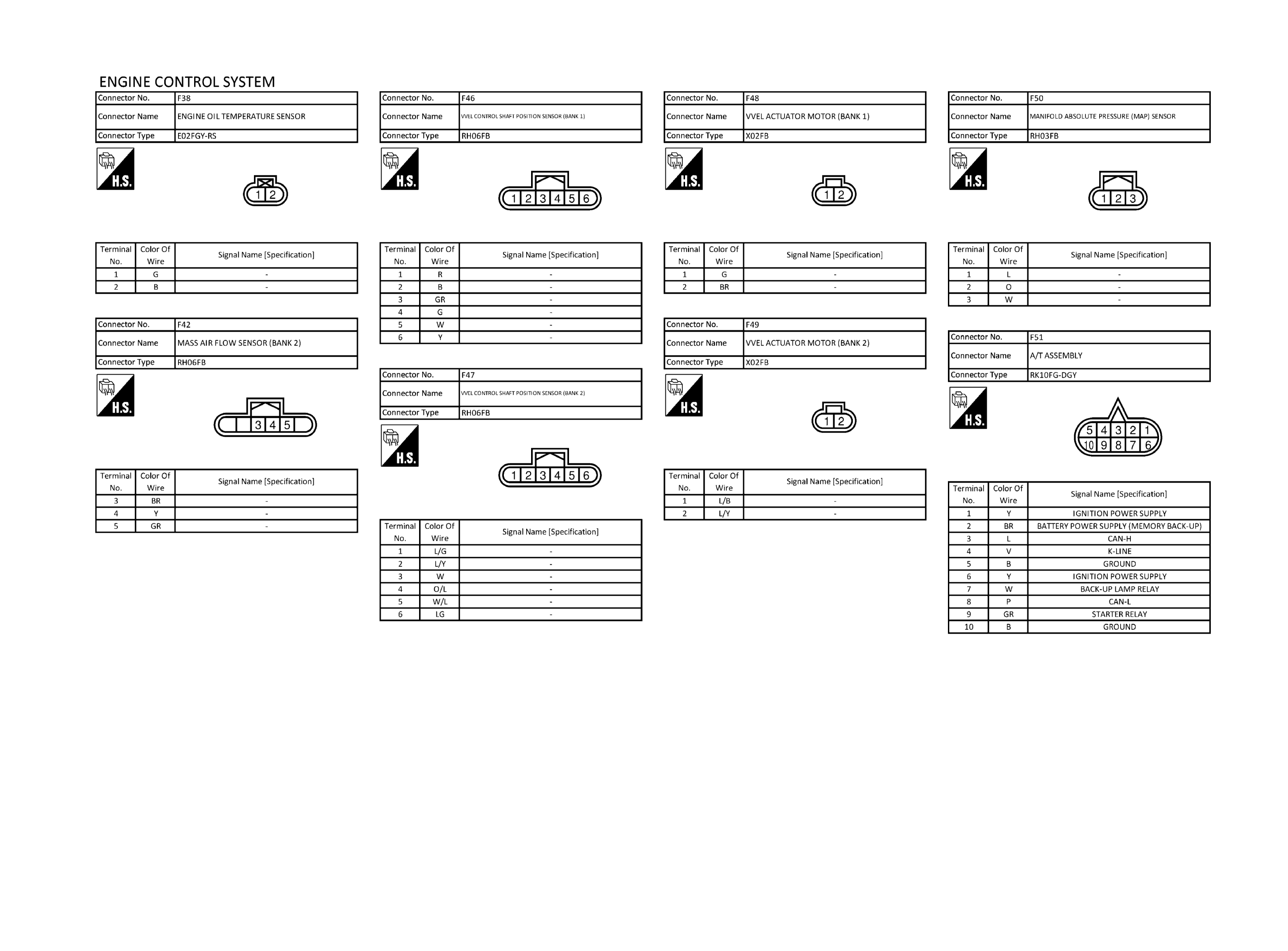

GNSJRBWD9223GB-223

Courtesy of NISSAN NORTH AMERICA, INC.

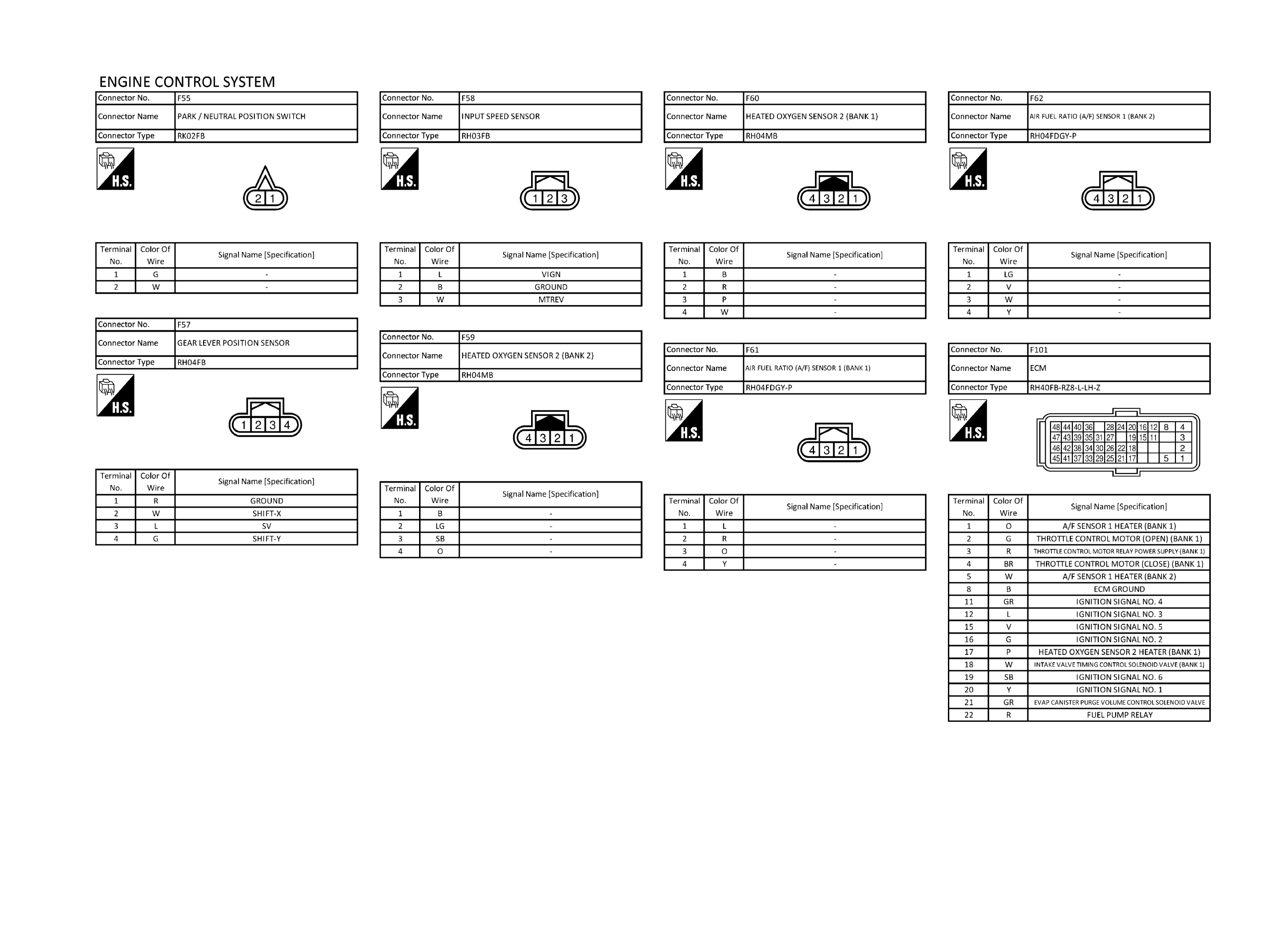

GNSJRBWD9224GB-224

Courtesy of NISSAN NORTH AMERICA, INC.

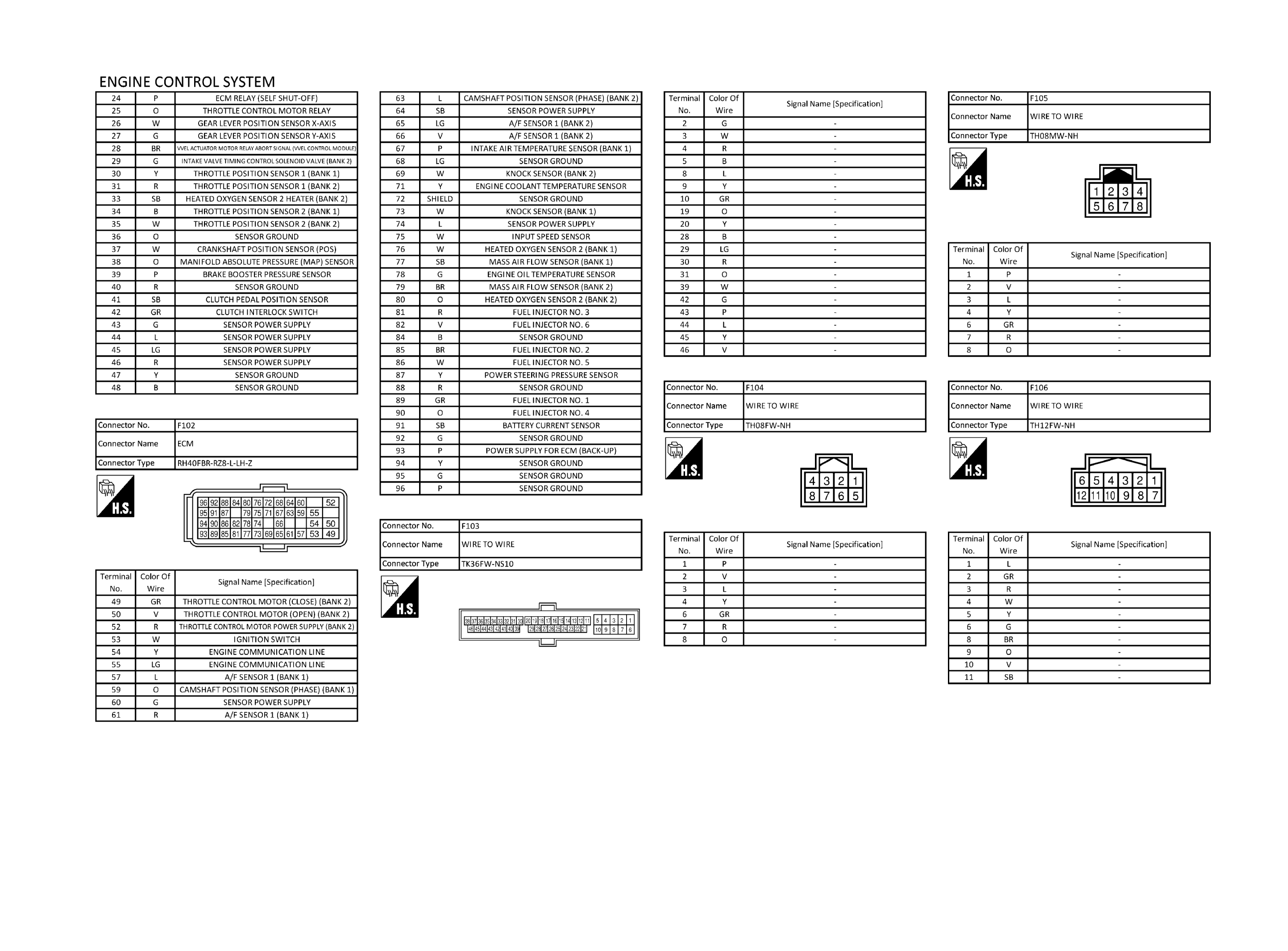

GNSJRBWD9225GB-225

Courtesy of NISSAN NORTH AMERICA, INC.

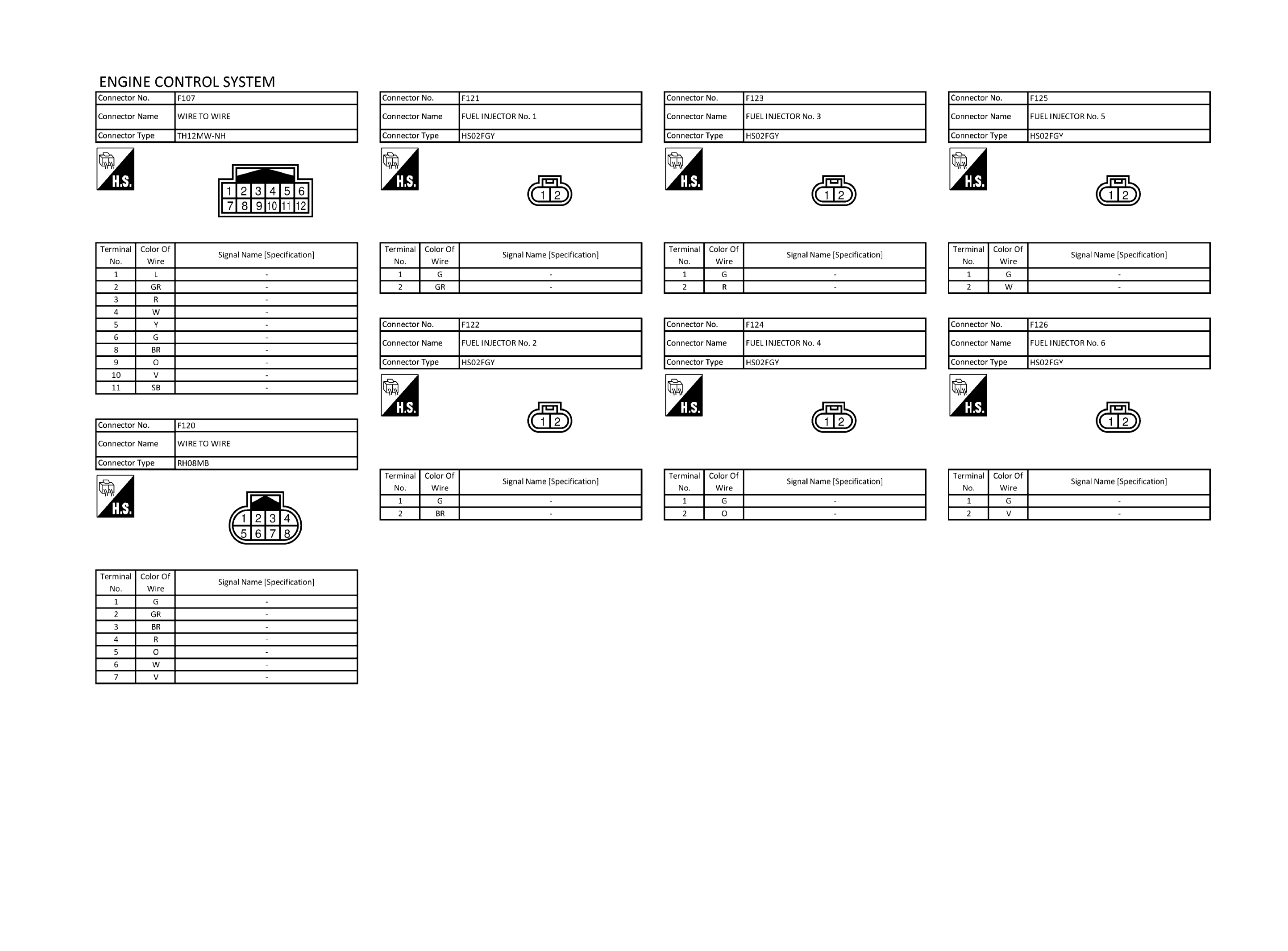

GNSJRBWD9226GB-226

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWD9227GB-227

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWD9228GB-228

Courtesy of NISSAN NORTH AMERICA, INC.

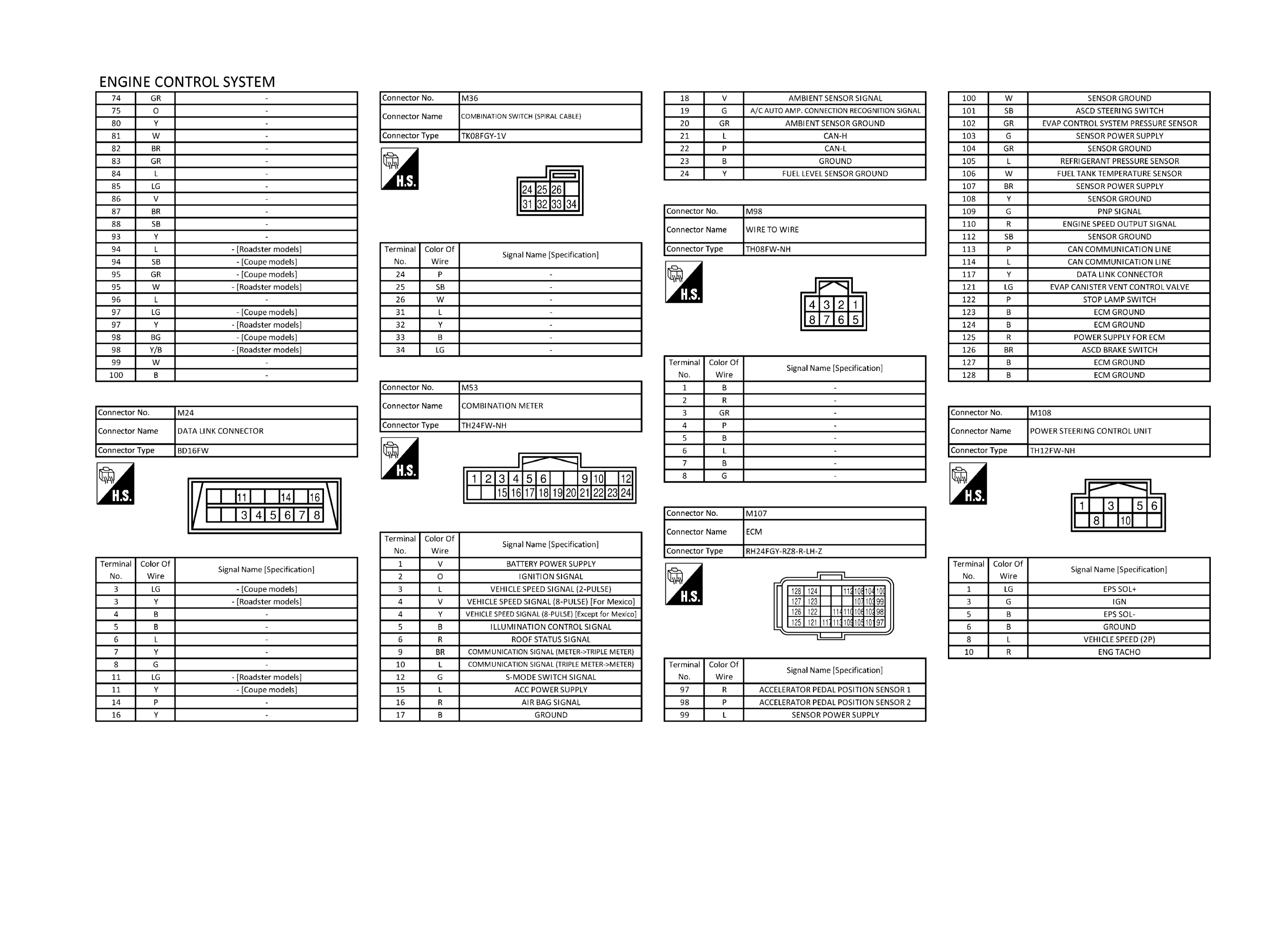

GNSJRBWD9229GB-229

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRBWD9230GB-230

Courtesy of NISSAN NORTH AMERICA, INC.
