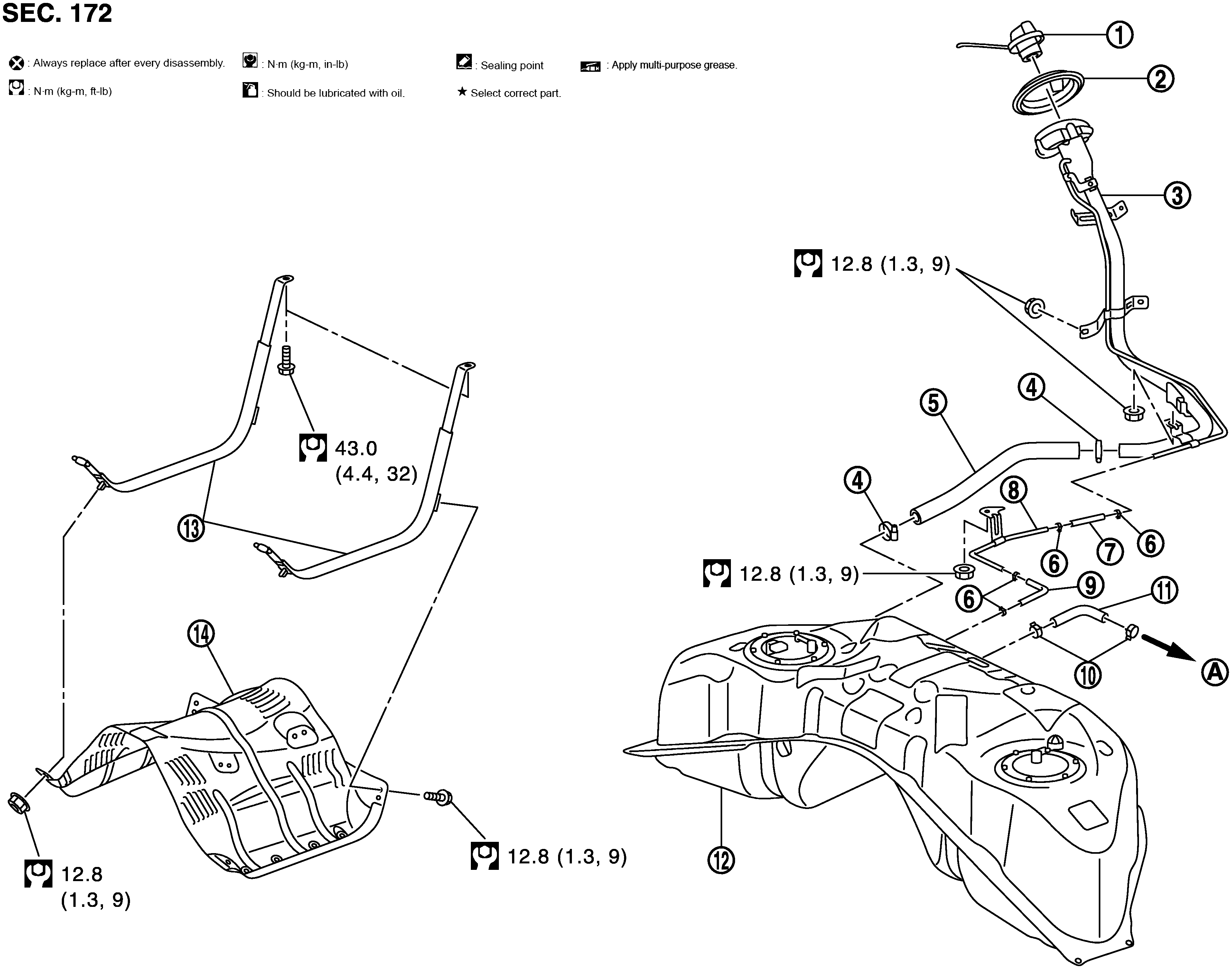

Exploded View With Torque Specifications
| 1. | Fuel filler cap | 2. | Grommet | 3. | Fuel filler tube |
| 4. | Clamp | 5. | Fuel filler hose | 6. | Clamp |
| 7. | Vent hose | 8. | Vent tube | 9. | Vent hose |
| 10. | Clamp | 11. | EVAP hose | 12. | Fuel tank |
| 13. | Fuel tank mounting band | 14. | Fuel tank protector | ||
| A. | To EVAP canister | ||||
| Refer to COMPONENTS for symbols in the illustration. | |||||
