Exploded View With Torque Specifications

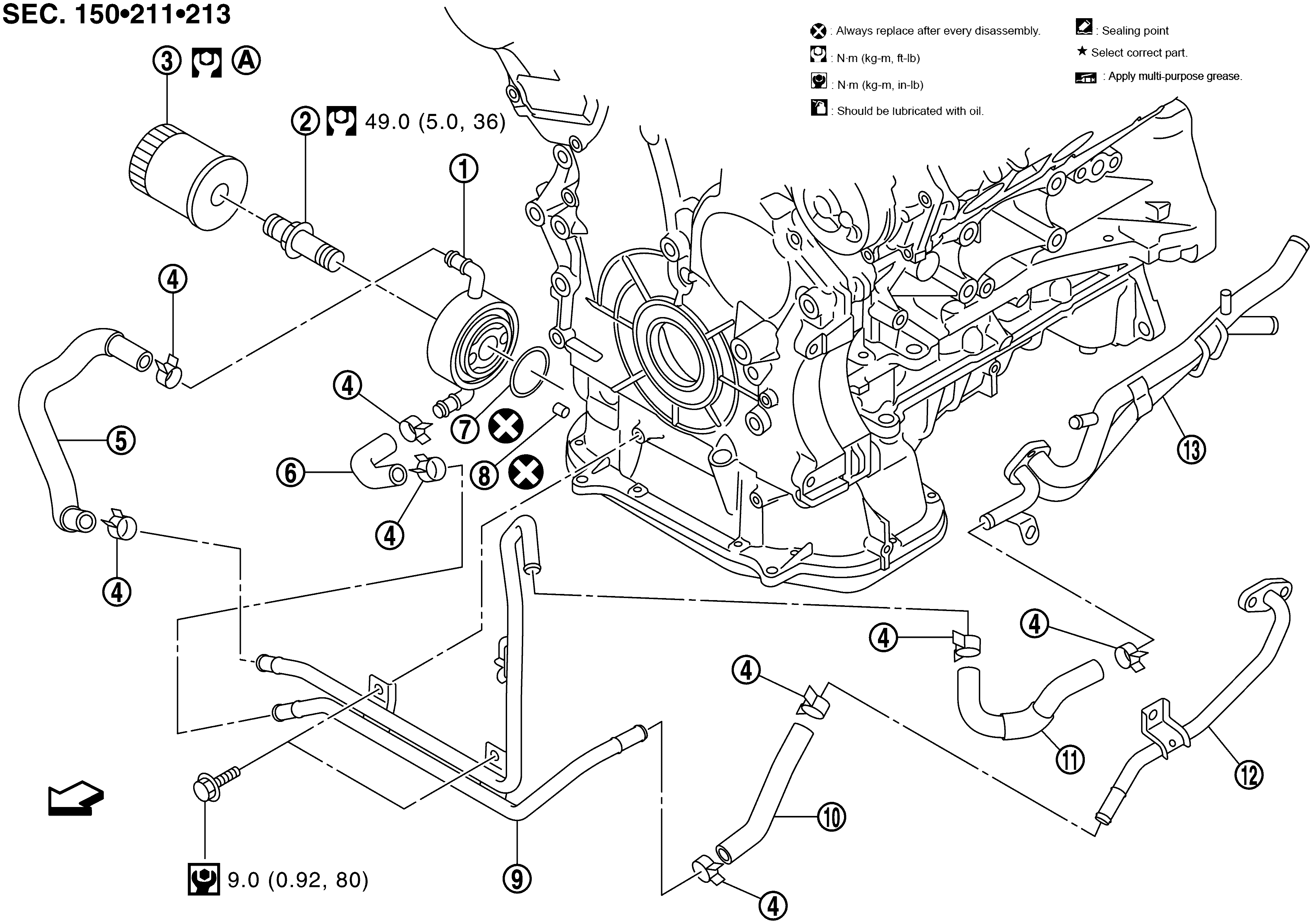

WITHOUT FLUID WARMER MODELS
| 1. | Oil cooler | 2. | Connector bolt | 3. | Oil filter |
| 4. | Clamp | 5. | Water hose | 6. | Water hose |
| 7. | O - ring | 8. | Relief valve | 9. | Water pipe |
| 10. | Water hose | 11. | Water hose | 12. | Water pipe |
| 13. | Heater pipe | ||||
| A. | Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION | ||||
| : Engine front | |||||
| Refer to COMPONENTS for symbols in the illustration. | |||||

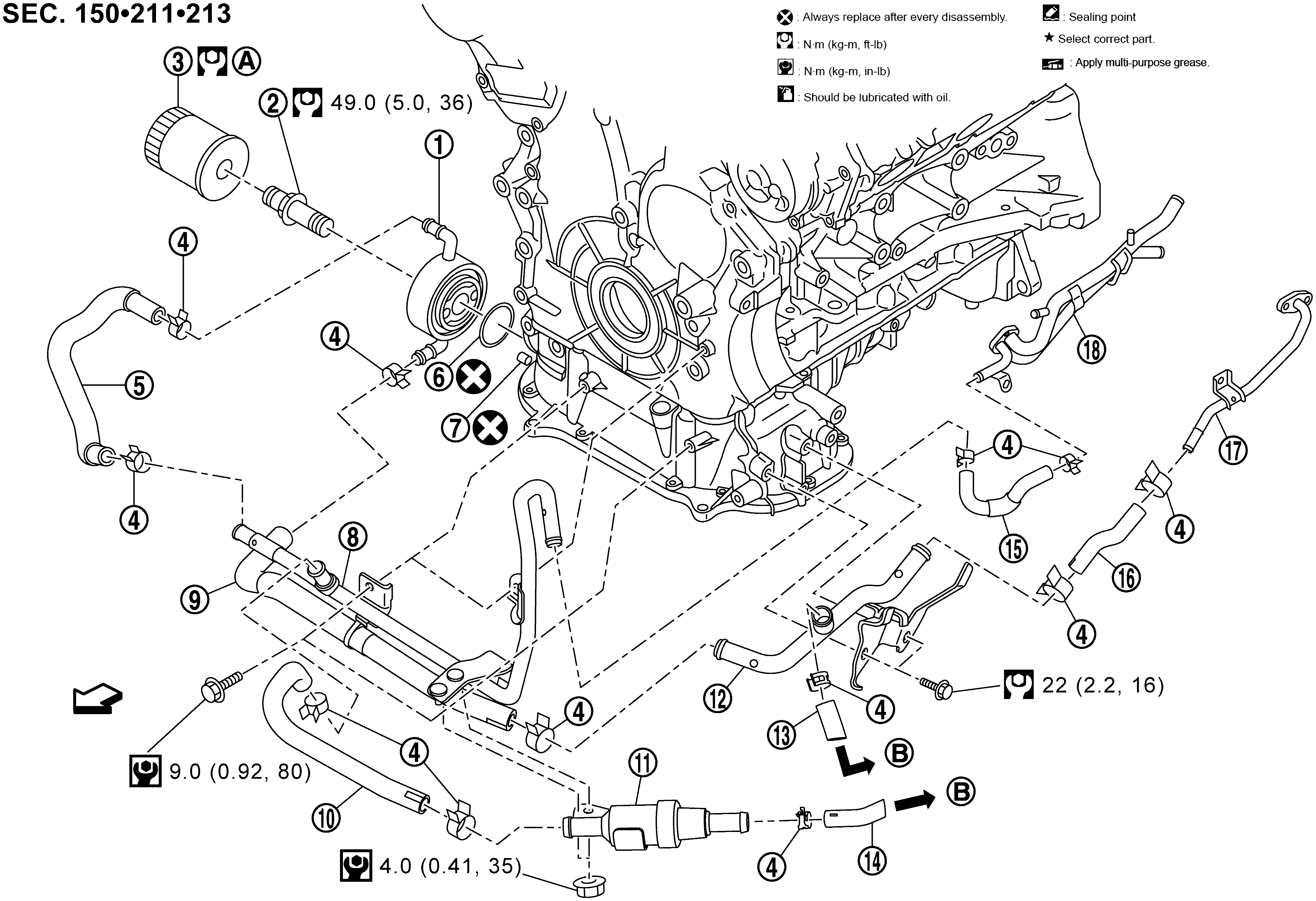

WITH FLUID WARMER MODELS
| 1. | Oil cooler | 2. | Connector bolt | 3. | Oil filter |
| 4. | Clamp | 5. | Water hose | 6. | O - ring |
| 7. | Relief valve | 8. | Water pipe | 9. | Water hose |
| 10. | Water hose | 11. | Thermo valve | 12. | Water pipe assembly |
| 13. | Heater hose | 14. | Heater hose | 15. | Heater hose |
| 16. | Heater hose | 17. | Water pipe | 18. | Heater pipe |
| A. | Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION | ||||
| B. | : To A/T fluid warmer | ||||
| : Engine front | |||||
| Refer to COMPONENTS for symbols in the illustration. | |||||
