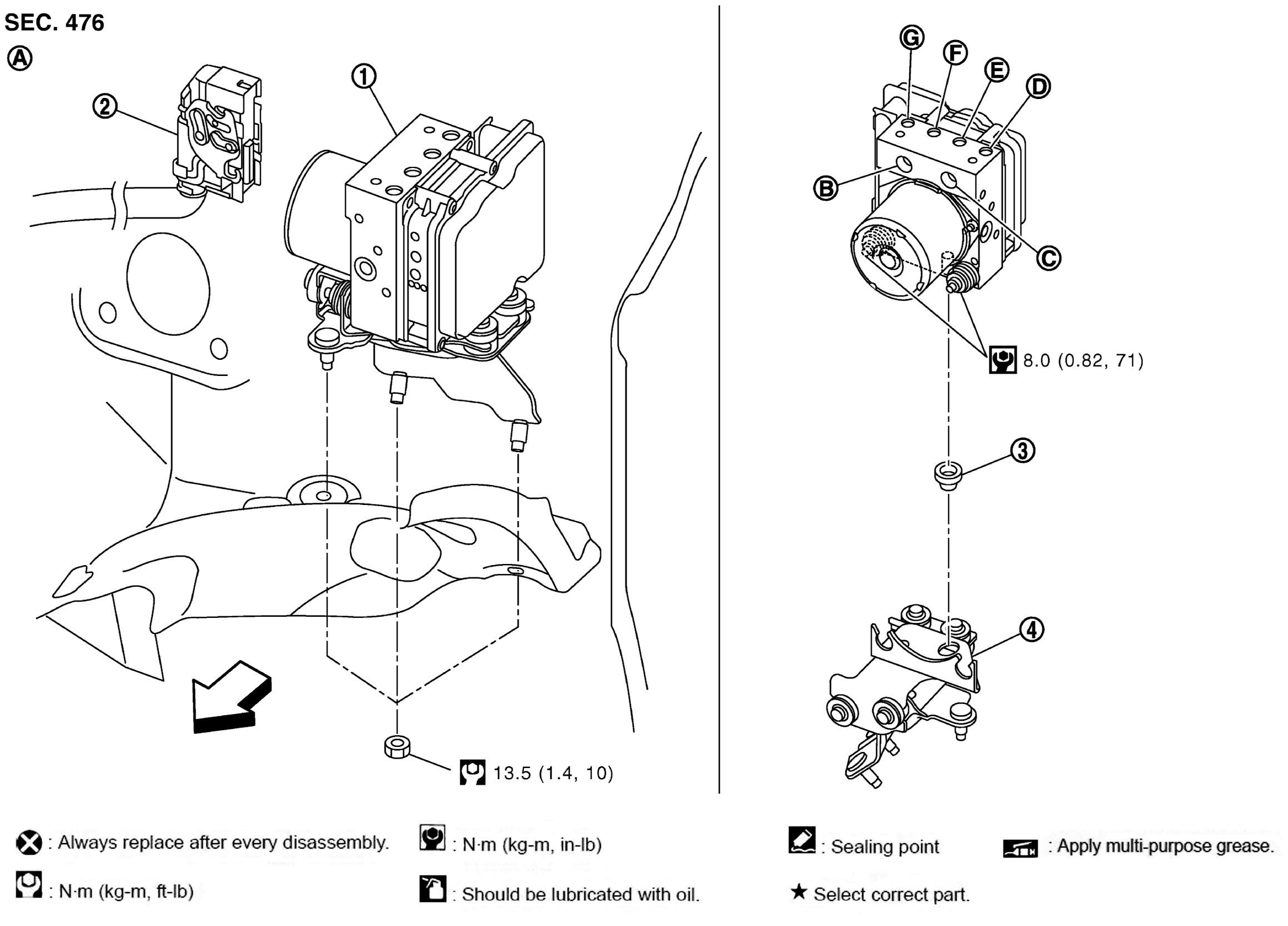

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Harness connector	3.	Bushing
4.	Bracket
A.	Left side of dash panel	B.	From master cylinder secondary side	C.	From master cylinder primary side
D.	To front LH brake caliper	E.	To rear RH brake caliper	F.	To Rear LH brake caliper
G.	To front RH brake caliper
: Vehicle front
Refer to COMPONENTS for symbols in the illustration.
