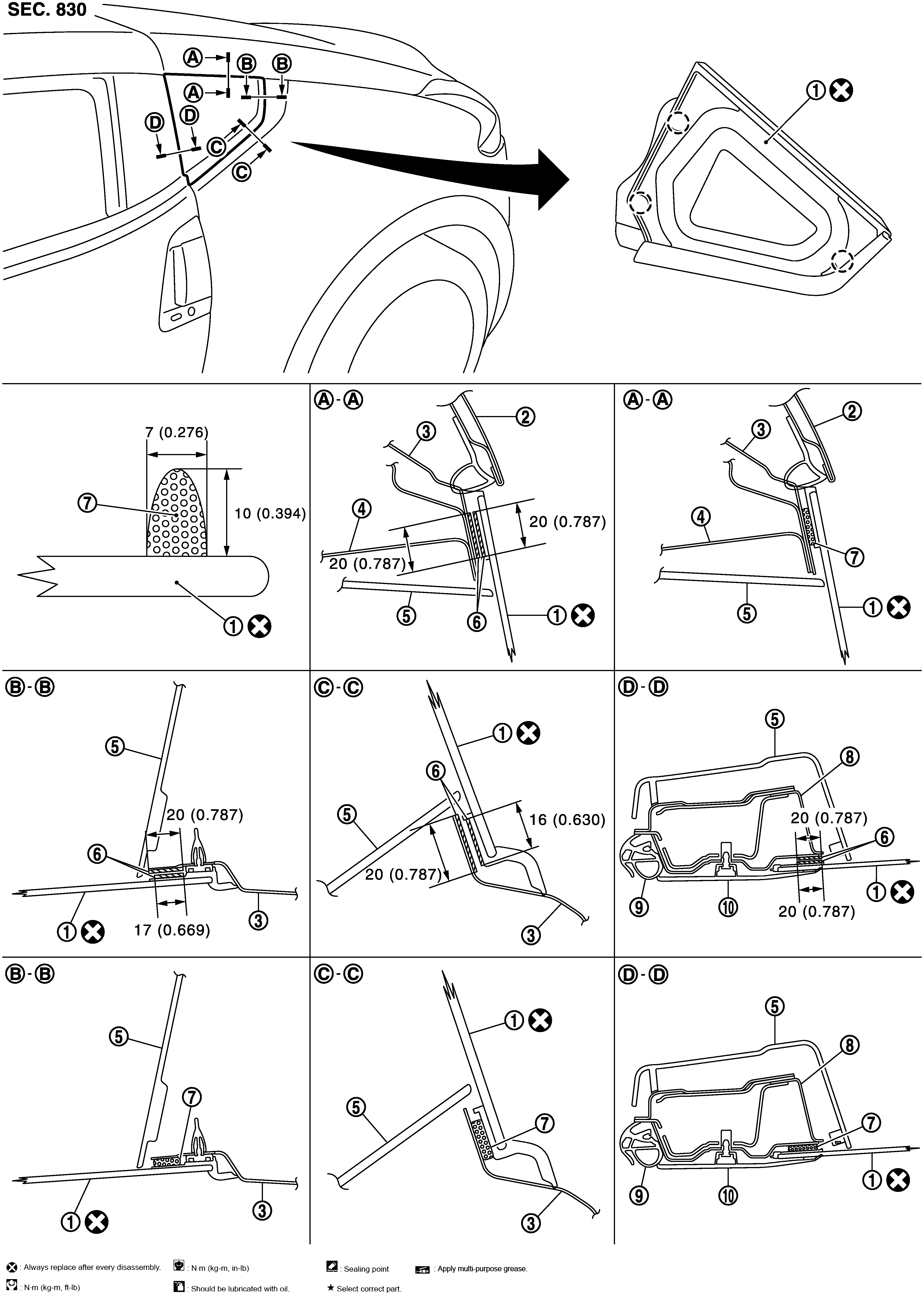

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side window glass assembly	2.	Back door outer panel	3.	Rear fender
4.	Rear pillar inner	5.	Rear pillar finisher	6.	Primer
7.	Adhesive	8.	Panel side inner	9.	Body side weather-strip
10.	Lock pillar finisher
	: Clip
Unit	: mm (in)
	: Always replace after every disassembly.
