ENGINE GROUND Connector End View (F5)

Connector Color: -

Terminal No.	Color of Wire	Signal Name (Specification)
1	-	-

Circuit Diagram

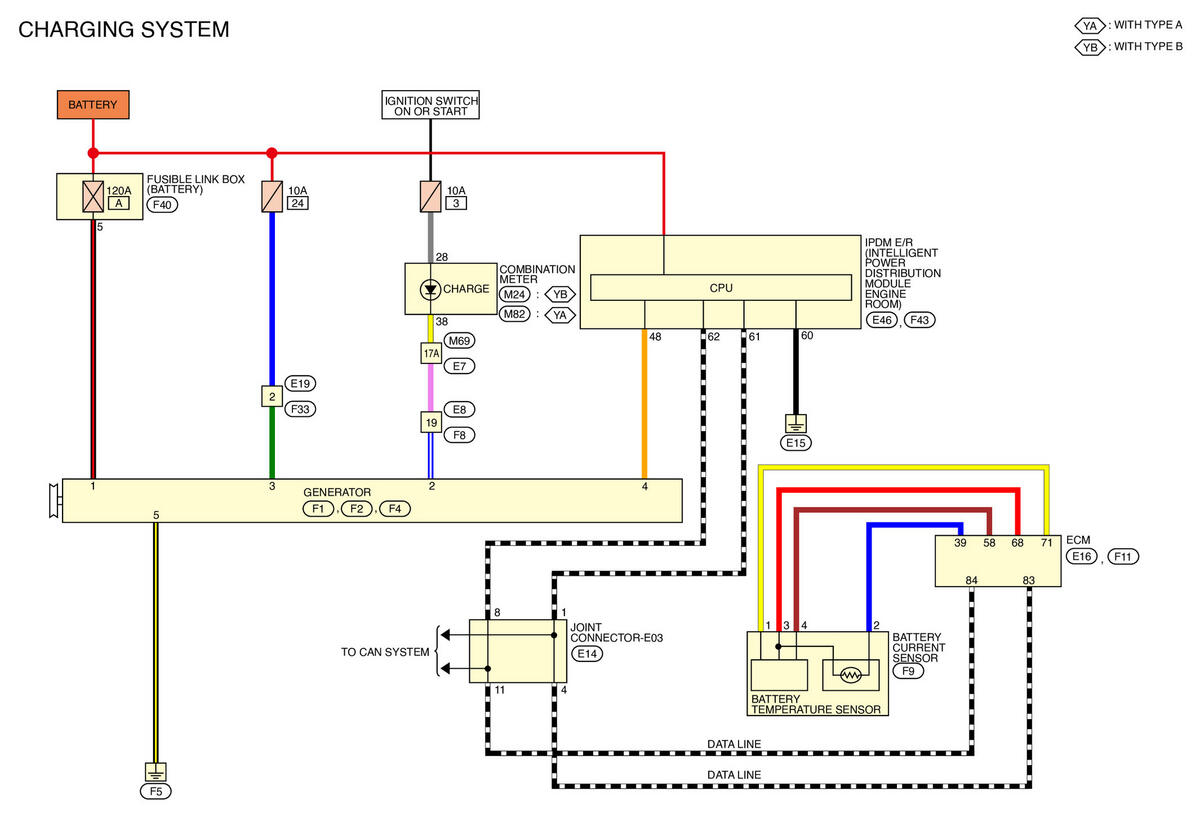

Fig 1: CHARGING SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: METER - TYPE A

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: METER - TYPE B

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

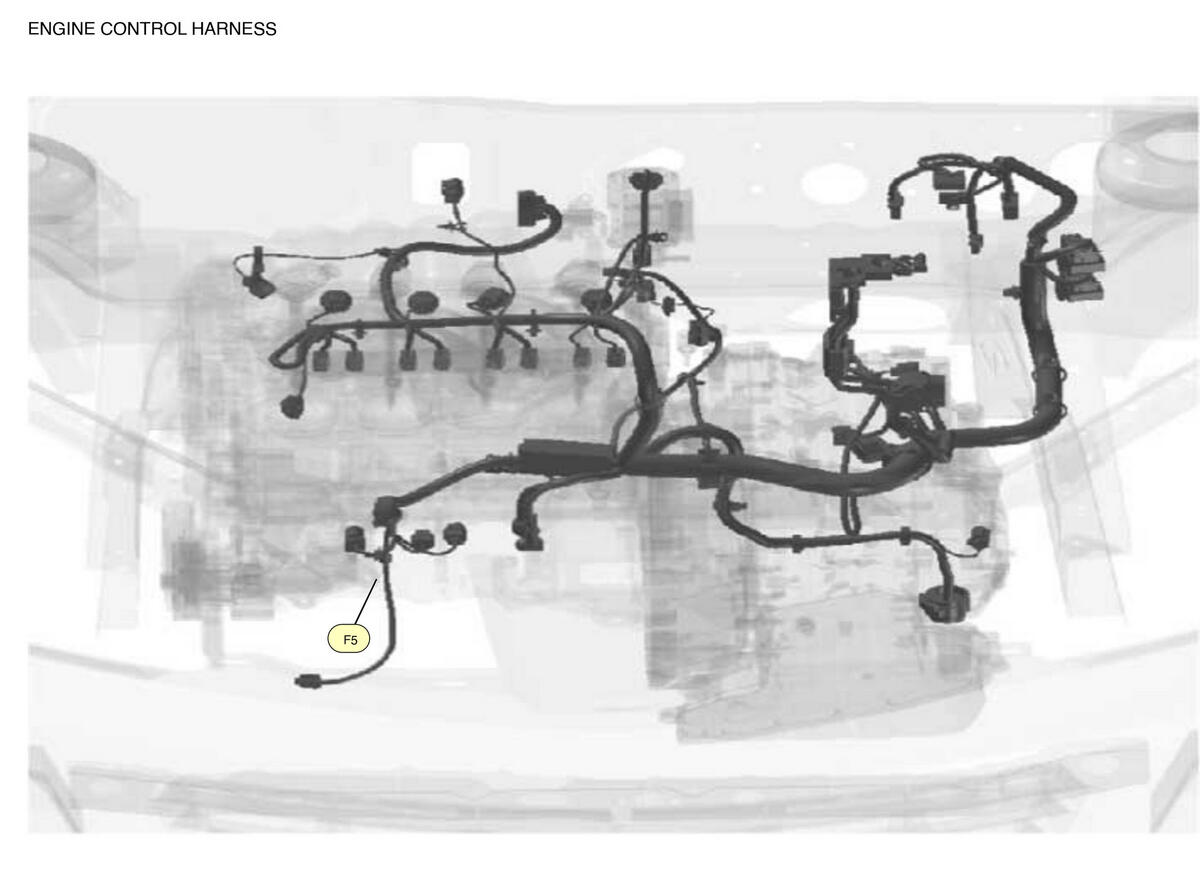

Fig 4: ENGINE CONTROL HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: -
