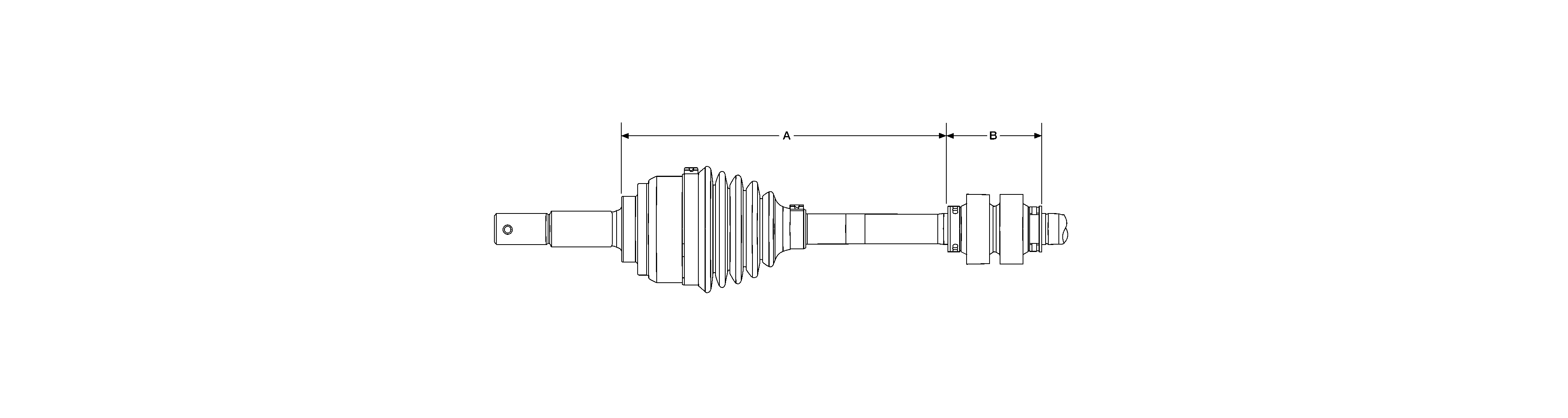

Dynamic Damper
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
Unit: mm (in)
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| Application |
M/T |
A/T |
CVT |
| LH |
RH |
LH |
RH |
LH |
RH |
| Dimension (A) |
240 +- 3 (9.45 +- 0.1) |
457 +- 3 (17.99 +- 0.1) |
240 +- 3 (9.45 +- 0.1) |
457 +- 3 (17.99 +- 0.1) |
242.9 +- 3 (9.56 +- 0.1) |
457 +- 3 (17.99 +- 0.1) |
| Dimension (B) |
70 (2.76) |
70 (2.76) |
70 (2.76) |
