Removal And Installation: Installation

Installation is in the reverse order of removal.

CAUTION:

Secure transaxle assembly to a suitable jack.
The transaxle assembly must not interfere with the wire harnesses and clutch tube.
When installing transaxle assembly, do not bring input shaft into contact with clutch cover.
Bolt hole is not threaded on new clutch housing. Self-tapping bolt is used to attach lock plate to clutch housing.
Do not reuse self-tapping bolt.

Tighten transaxle assembly bolts to the specified torque. The illustration is the view from the engine.

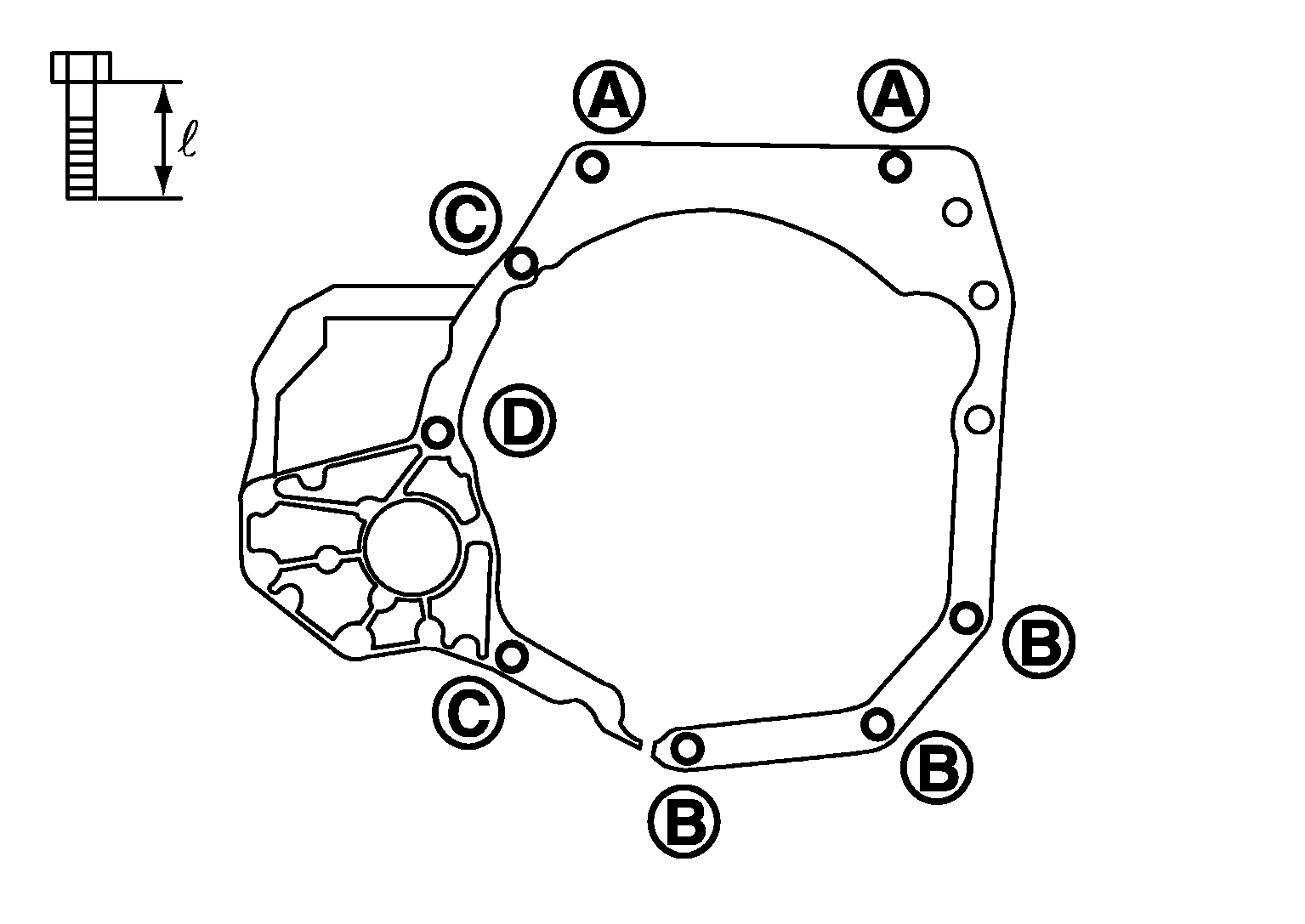

Fig 1: Transaxle To Engine And Engine To Transaxle Bolts And Bolt Length

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol	A	B	C	D
Insertion direction	Transaxle to engine	Engine to transaxle
Quantity	2	3	2	1
Bolt length ( ) mm (in)	55 (2.17)		49 (1.93)	69 (2.72)
Tightening torque N•m (kg-m, ft-lb)	48.0 (4.9, 35)
