Exploded View With Torque Specifications

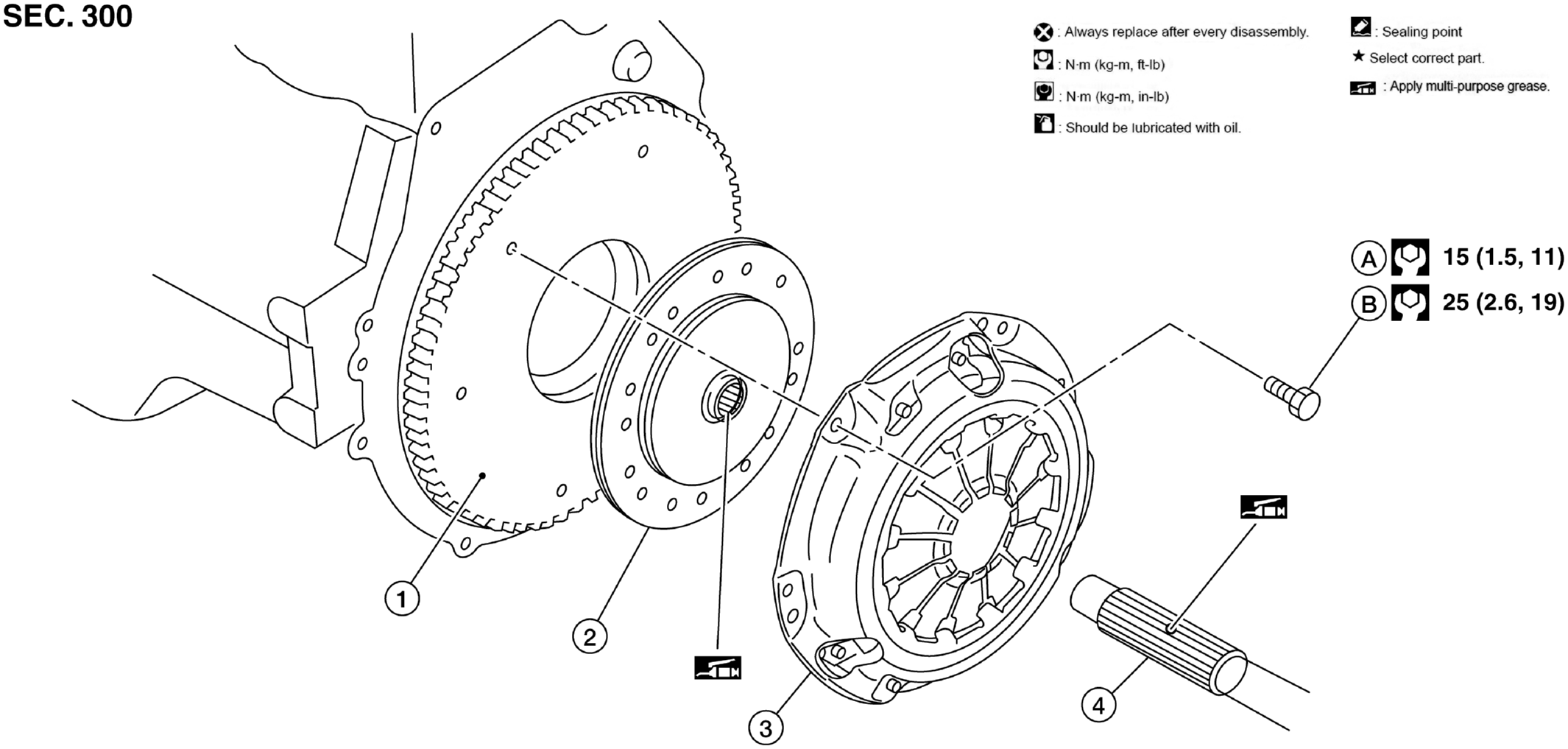

Fig 1: Exploded View Of Clutch Disc And Clutch Cover With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Flywheel	2.	Clutch disc	3.	Clutch cover
4.	Input shaft	A.	First step	B.	Final step
: Apply lithium-based grease including molybdenum disulphide.
