Exploded View With Torque Specifications

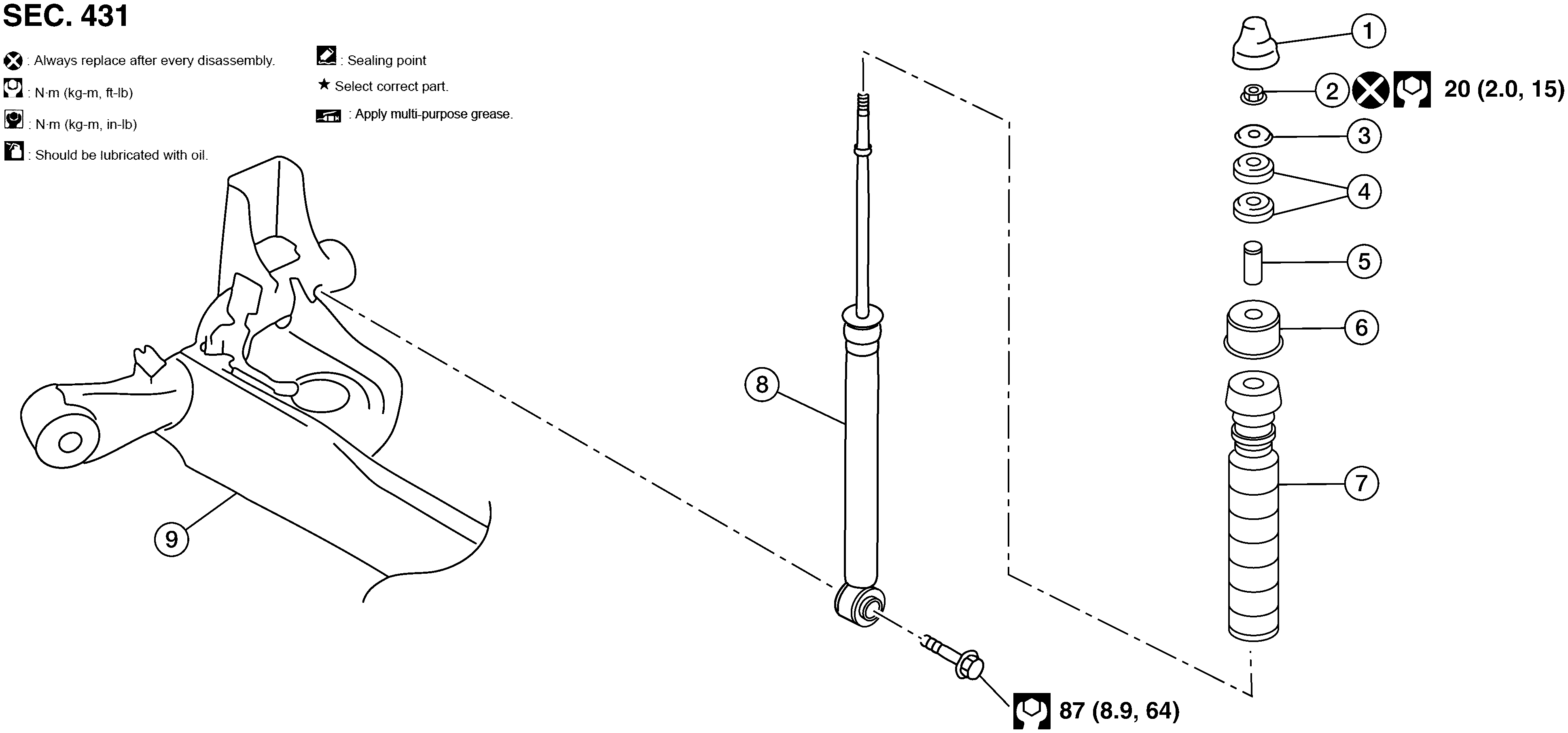

Fig 1: Exploded View Of Rear Shock Absorber With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cap	2.	Piston rod lock nut	3.	Washer
4.	Bushing	5.	Distance tube	6.	Bound bumper cover
7.	Bound bumper	8.	Shock absorber	9.	Rear suspension beam
