WIRE TO WIRE Connector End View (F8)

Connector Color:  WHITE

Fig 1: Terminal-side
GNSW83063Courtesy of NISSAN NORTH AMERICA, INC.

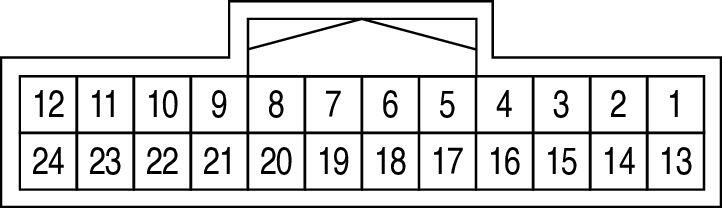

Fig 2: Harness-side
GNSW83062Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. Color of Wire Signal Name (Specification)
1 - -
2 L -
3 R -
4 - -
5 B -
6 P/L -
7 L/G -
8 O -
9 L/Y -
10 L/Y -
11 L/R -
12 BR/W -
13 - -
14 P -
15 BR -
16 G/R -
17 O -
18 LG -
19 L/W -
20 SB -
21 - -
22 - -
23 - -
24 Y -

Harness Layout

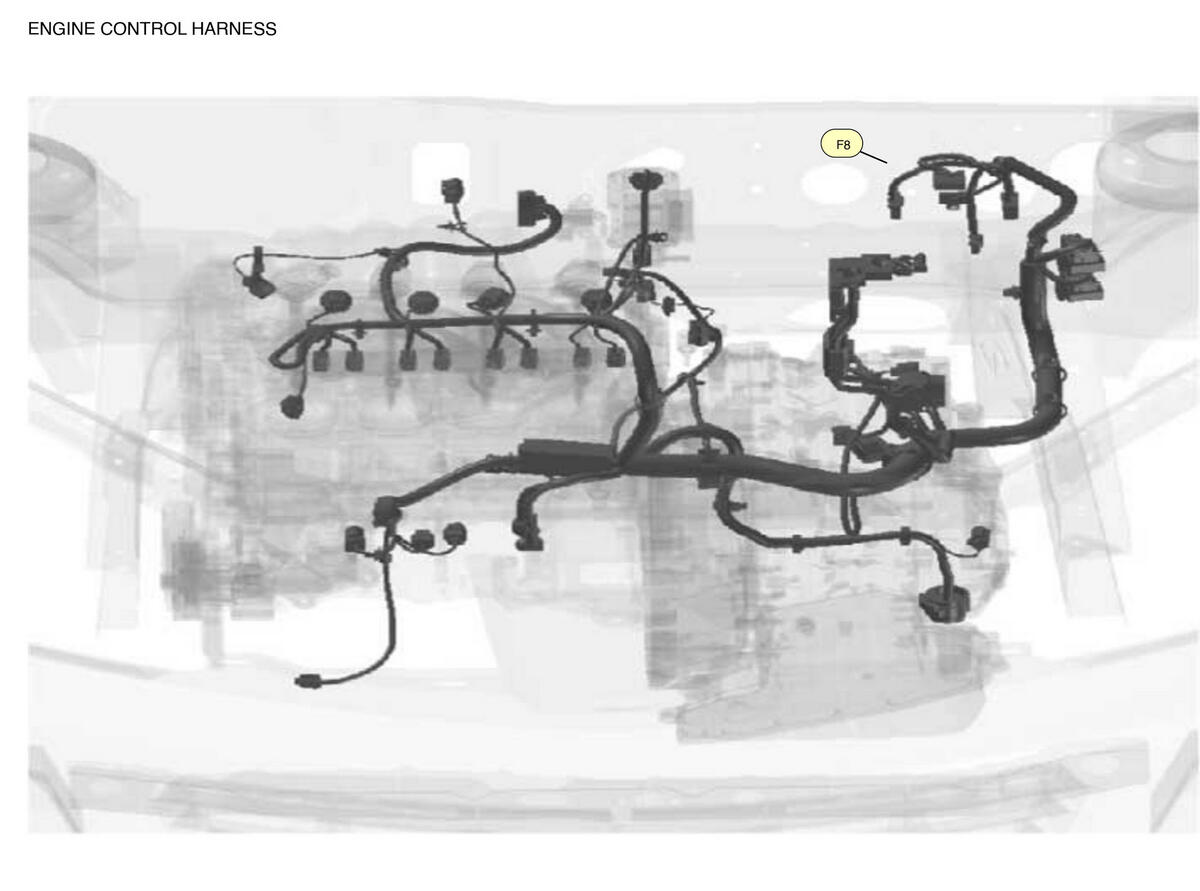

Fig 3: ENGINE CONTROL HARNESS
GNSW83164_LK_F008Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  TH24FW-NH
