Engine Cooling System

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

M/T models

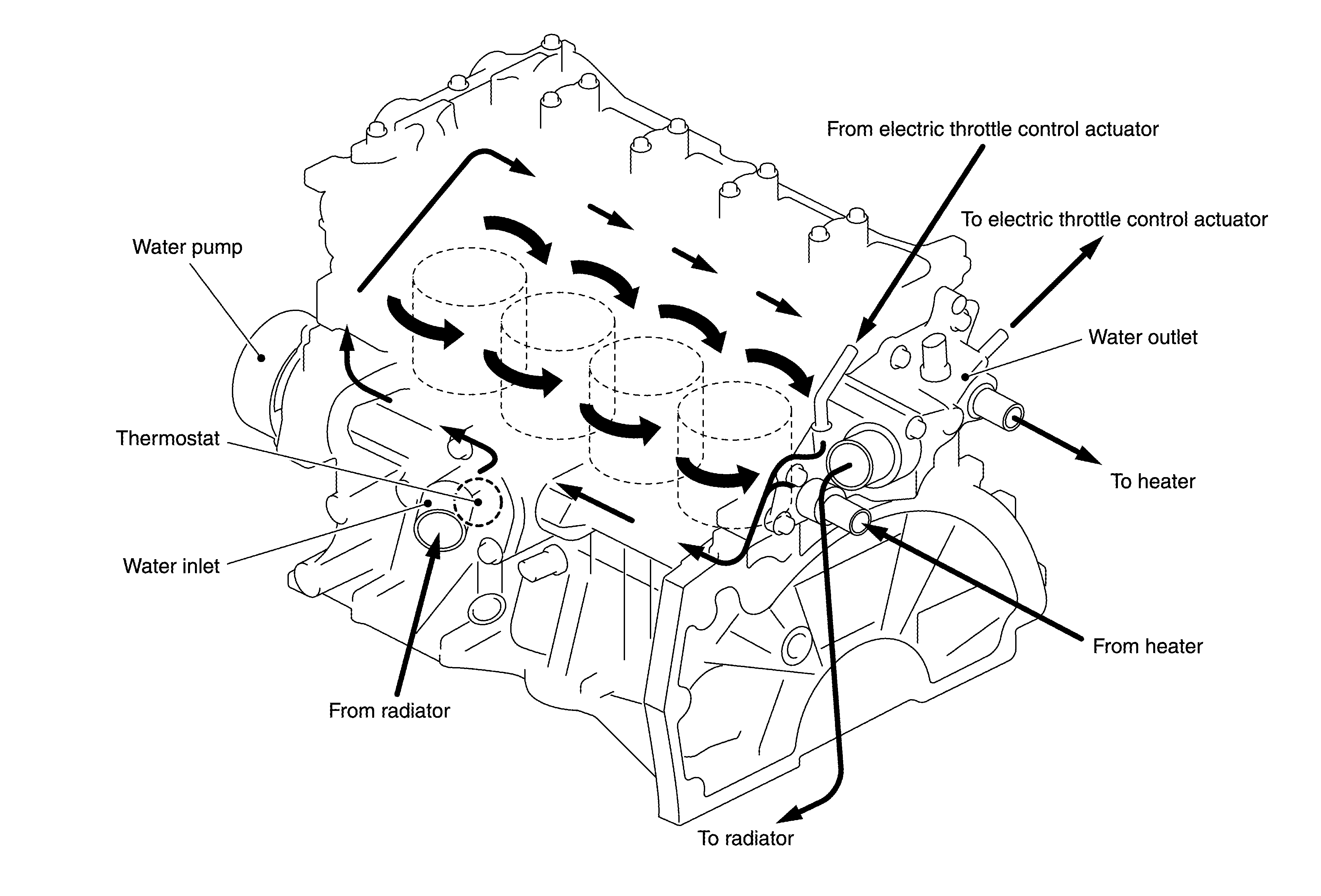

Fig 1: Engine Cooling System Diagram (M/T Models)

Courtesy of NISSAN NORTH AMERICA, INC.

CVT and A/T models

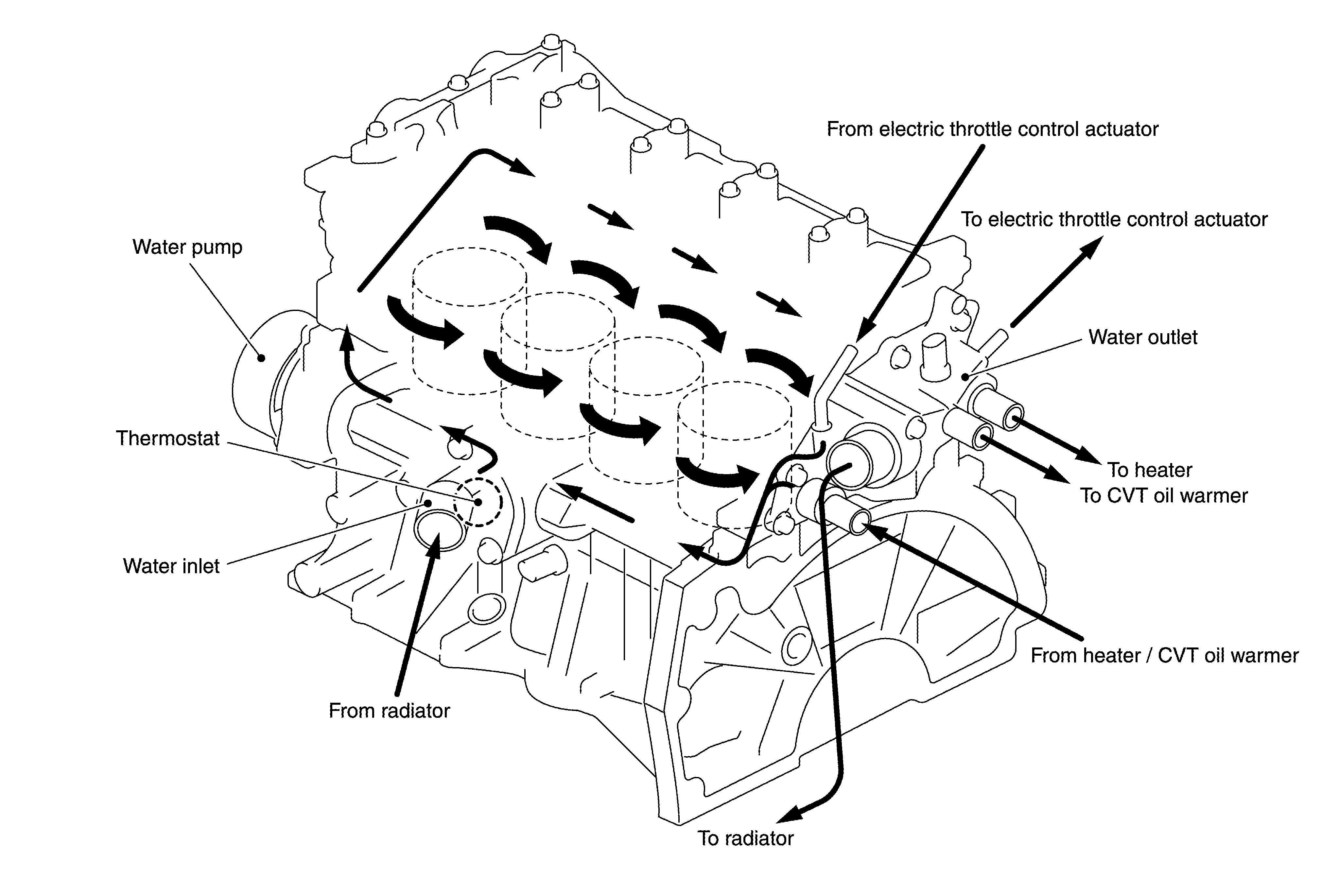

Fig 2: Engine Cooling System Diagram (CVT Models)

Courtesy of NISSAN NORTH AMERICA, INC.
