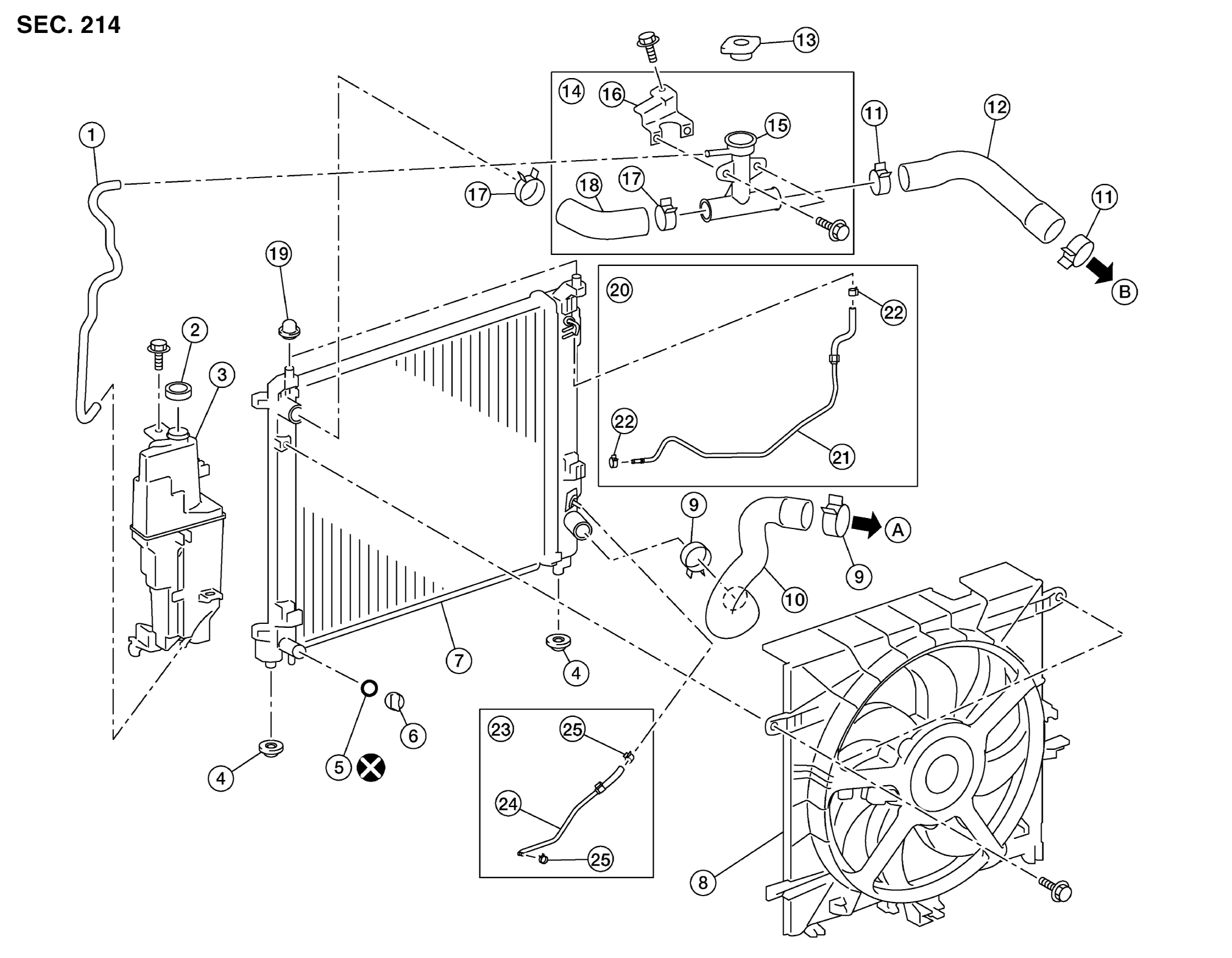

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Reservoir tank hose | 2. | Reservoir tank cap | 3. | Reservoir tank |
| 4. | Mounting rubber (lower) | 5. | O-ring | 6. | Drain plug |
| 7. | Radiator | 8. | Cooling fan assembly | 9. | Clamp |
| 10. | Radiator hose (lower) | 11. | Clamp | 12. | Radiator hose to water outlet (upper) |
| 13. | Radiator cap | 14. | Radiator cap adapter assembly | 15. | Radiator cap adapter |
| 16. | Radiator cap adapter bracket | 17. | Clamp | 18. | Radiator hose (upper) to radiator |
| 19. | Mounting rubber (upper) | 20. | CVT cooler hose/ A/T fluid cooler hose assembly | 21. | CVT cooler hose/ A/T fluid cooler hose |
| 22. | Clamp | 23. | CVT cooler hose/ A/T fluid cooler hose assembly | 24. | CVT cooler hose/ A/T fluid cooler hose |
| 25. | Clamp | A. | To water inlet | B. | To water outlet |
