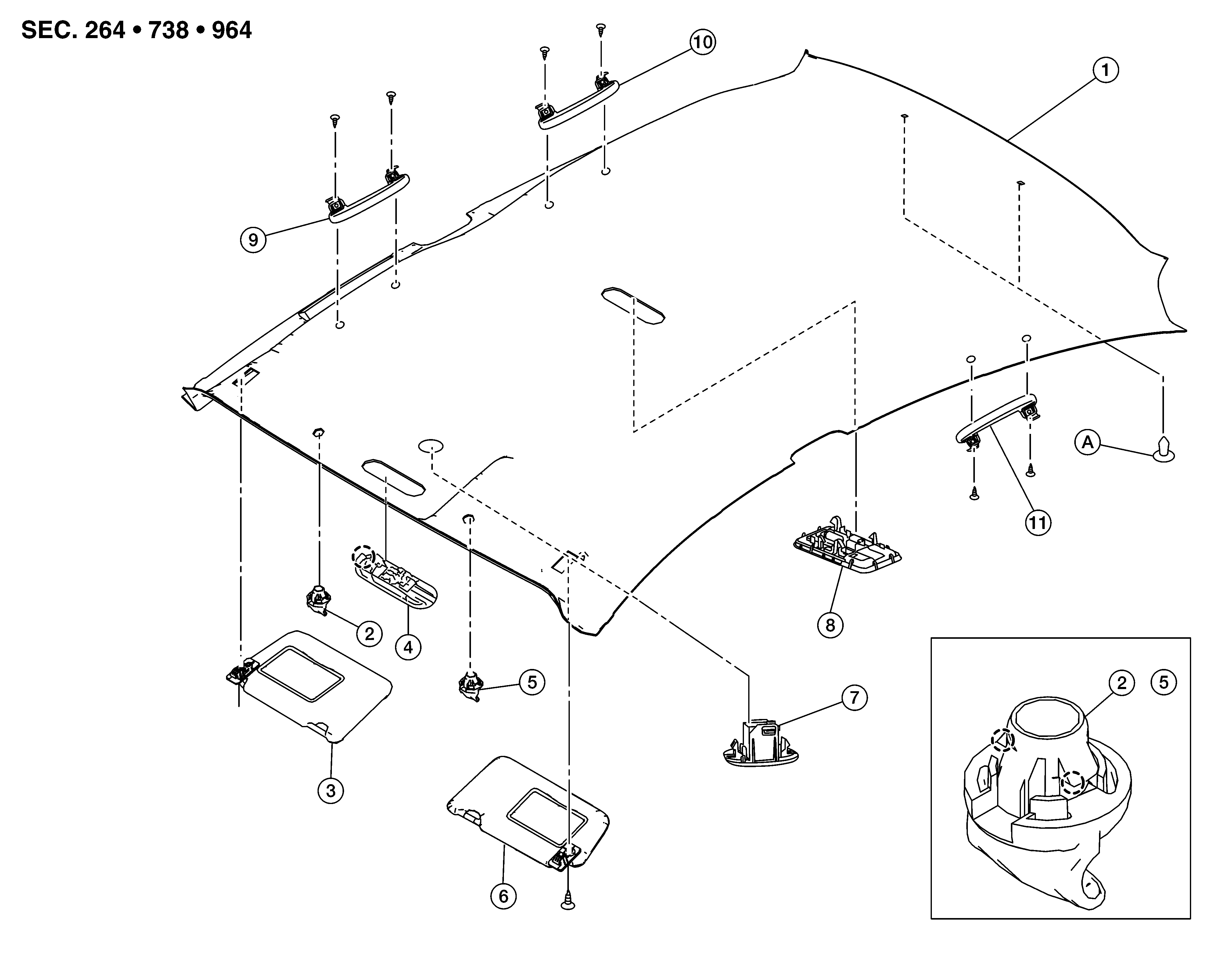

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Headlining assembly | 2. | Sun visor assembly (RH) | 3. | Sun visor assembly (RH) |
| 4. | Map lamp (if equipped) | 5. | Sun visor holder (LH) | 6. | Sun visor assembly (LH) |
| 7. | Microphone finisher (if equipped) | 8. | Room lamp | 9. | Front assist grip (RH) |
| 10. | Rear assist grip (RH) | 11. | Rear assist grip (LH) | A. | Headlining clip |
| Pawl |
