Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

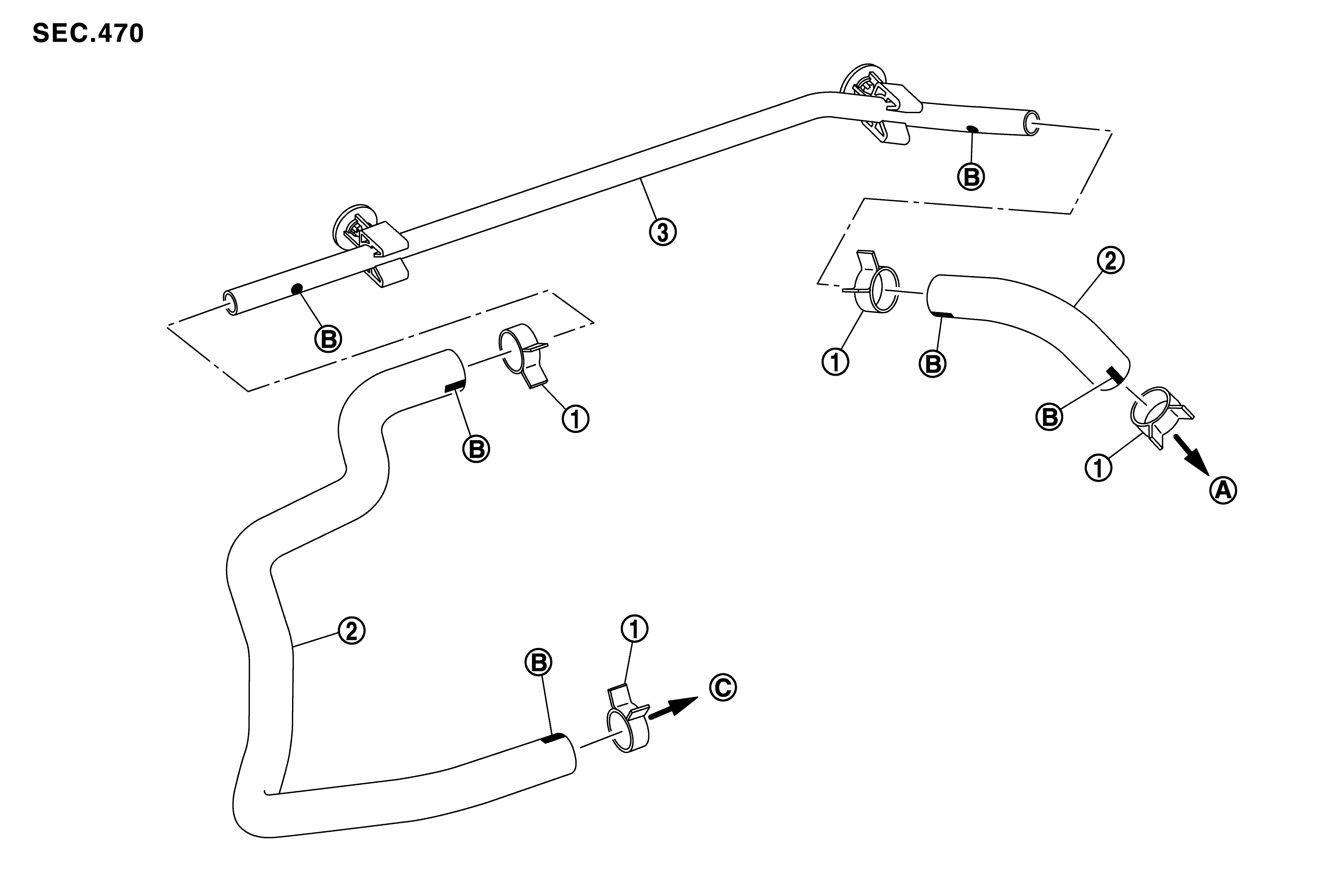

Fig 1: Exploded View Of Vacuum Lines

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Vacuum hose	3.	Vacuum piping
A.	To brake booster	B.	Paint mark	C.	To intake manifold
