Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

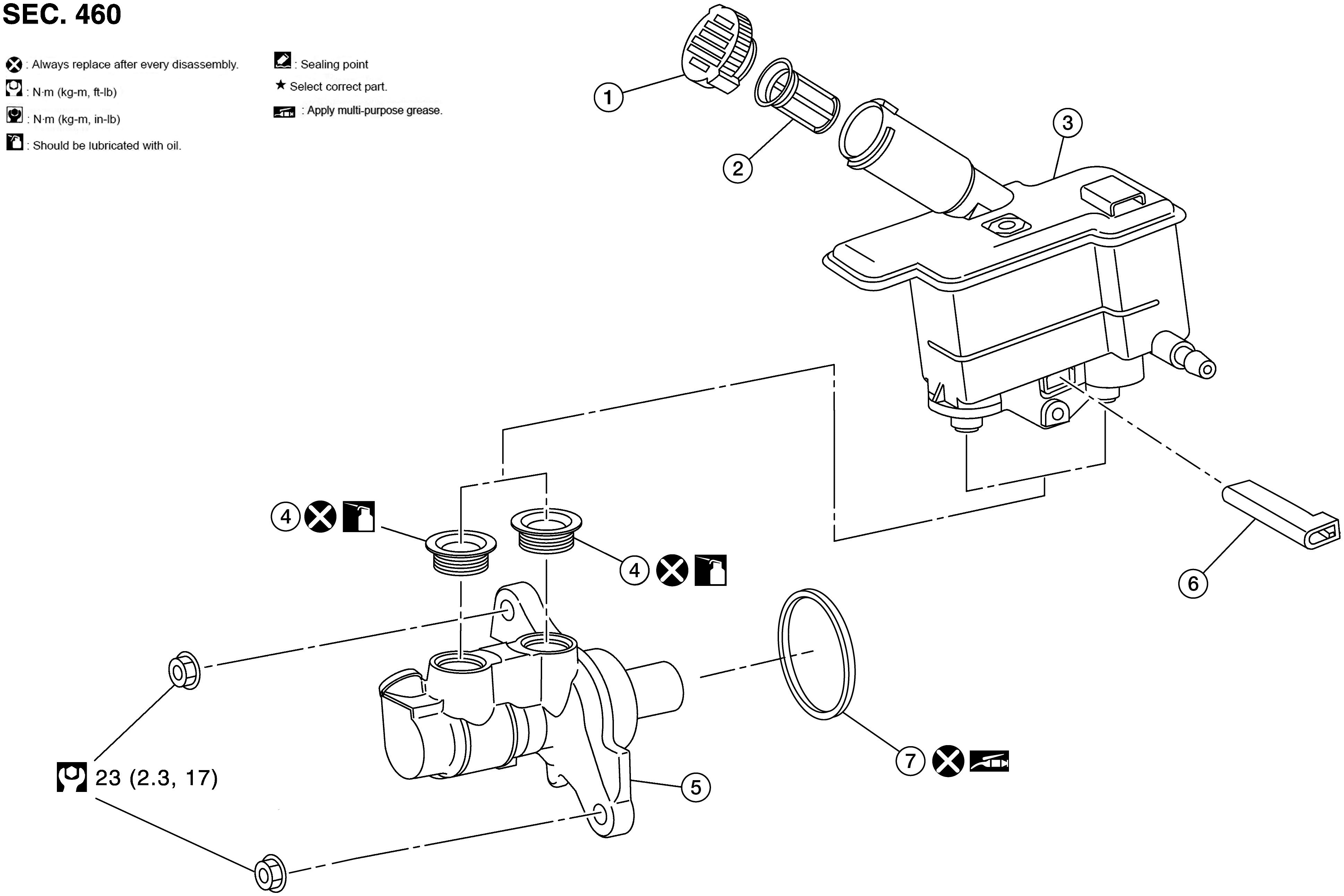

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications
GNSAWFIA0812GB-812Courtesy of NISSAN NORTH AMERICA, INC.
1. Reservoir cap 2. Brake fluid strainer 3. Reservoir tank
4. Grommet 5. Cylinder body 6. Brake fluid level switch
7. O-ring OIL Apply brake fluid GREASE PBC (Poly Butyl Cuprysil) grease or silicone-based grease
