Component Parts Location

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

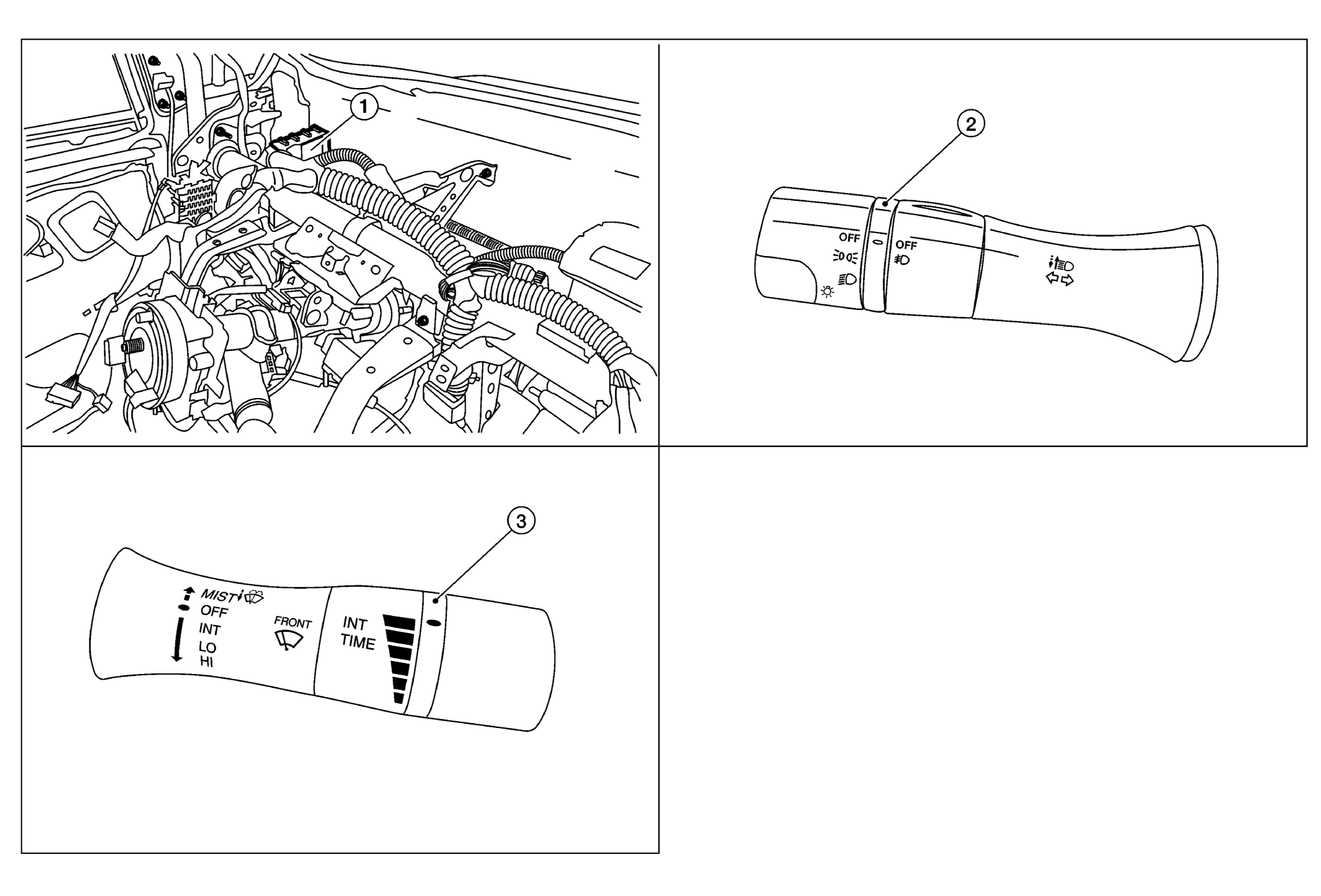

Fig 1: Combination Switch Reading System Components Location
GNSAWMIA1338ZZ-338Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with combination meter removed) 2. Combination switch (lighting and turn signal) 3. Combination switch (wiper and washer)
