Physical Values

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
Terminal No.
(Wire color)		 Description Condition Value
(Approx.)
Signal name Input/ Output
+ -
1
(GR)		 Ground Rear window
defogger relay
control		 Input Rear window defogger switch OFF Battery voltage
ON 0 - 0.5 V
2
(BR)		 Ground INPUT 5 signal Input Combination switch OFF 0 V
TURN RH
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V
HEADLAMP 1
HI BEAM
TAIL LAMP
3
(Y)
Ground		 INPUT 4 signal Input Combination switch OFF 0 V
TURN LH
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V
PASSING
HEADLAMP 2
FR FOG
4
(L)		 Ground INPUT 3 signal Input Combination switch OFF 0 V
FR WIPER LO
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V
FR WIPER INT
(any intermittent position)
5
(G)		 Ground INPUT 2 signal Input Combination switch OFF 0 V
FR WASHER
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V
Wiper intermittent dial 1
Wiper intermittent dial 5
Wiper intermittent dial 6
6
(R)		 Ground INPUT 1 signal Input Combination switch OFF 0 V
FR WIPER HI
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V
Wiper intermittent dial 1
Wiper intermittent dial 2
Wiper intermittent dial 3
Wiper intermittent dial 6
Wiper intermittent dial 7
7
(W)		 Ground Key cylinder unlock sw signal Input Key cylinder switch N position
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
UNLOCK position 0 V
8
(GR)		 Ground Key cylinder lock sw signal Input Key cylinder switch N position
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
LOCK position 0 V
9
(LG)		 Ground Stop lamp switch 1 Input Stop lamp switch OFF (Brake pedal
released)		 0 V
ON (Brake pedal
depressed)		 Battery voltage
12
(GR)		 Ground Central door lock sw signal Input Door lock and unlock switch NEUTRAL position
G08434264Courtesy of NISSAN NORTH AMERICA, INC.

1.0 - 1.5 V
LOCK position 0 V
13
(BR)		 Ground Central door unlock sw signal Input Door lock and unlock switch NEUTRAL position
G08434264Courtesy of NISSAN NORTH AMERICA, INC.

1.0 - 1.5 V
UNLOCK position 0 V
15
(G)		 Ground Rear defogger switch signal Input Rear window defogger switch Not pressed
G08434264Courtesy of NISSAN NORTH AMERICA, INC.

1.0 - 1.5 V
Pressed 0 V
18
(V)		 Ground Keyless tuner ground Input Push-button ignition switch ON 0 V
19
(LG)		 Ground Keyless tuner power supply Output Push-button ignition switch OFF

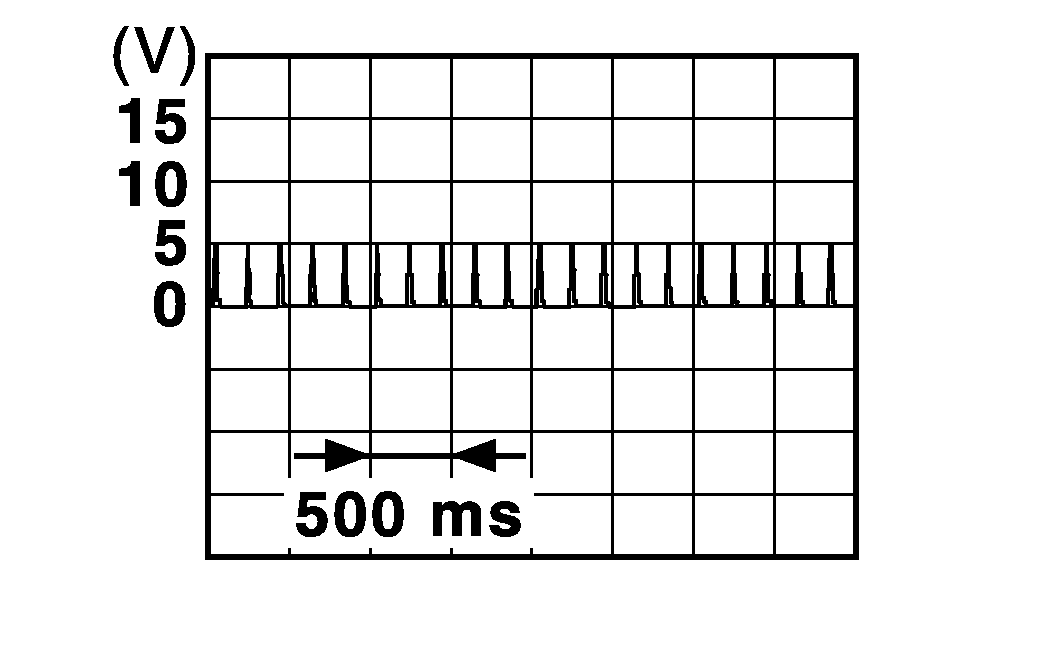

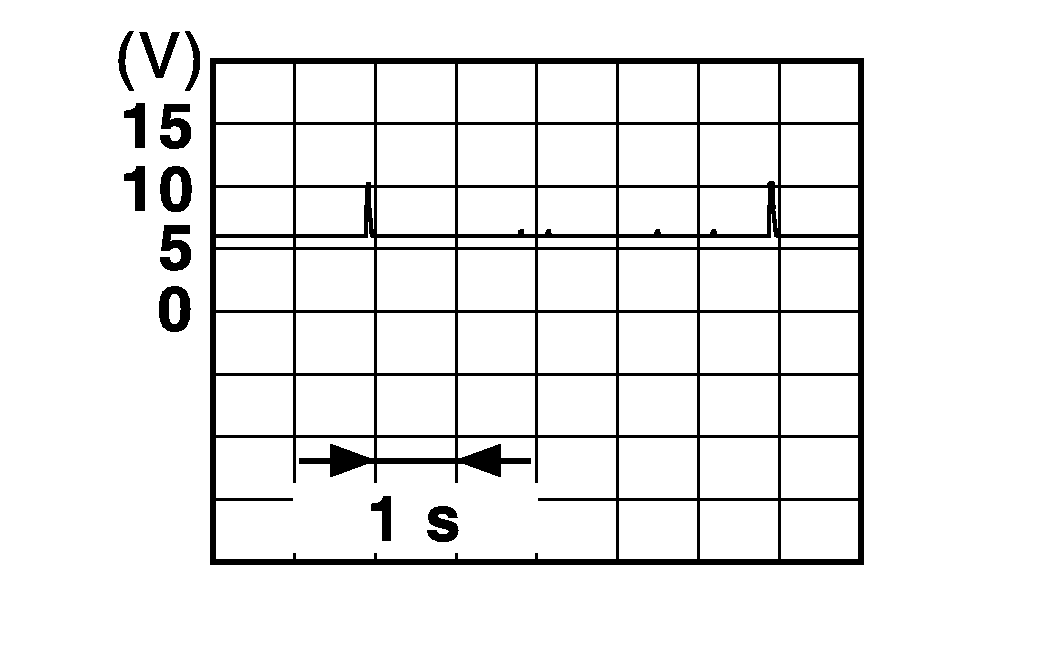

GNSJMKIA3838GB-838Courtesy of NISSAN NORTH AMERICA, INC.
Push-button ignition switch ACC or ON 5 V
20
(G)		 Ground Keyless tuner signal Input Push-button ignition switch OFF Waiting
GNSJMKIA3838GB-838Courtesy of NISSAN NORTH AMERICA, INC.
When operating either button on Intelligent Key

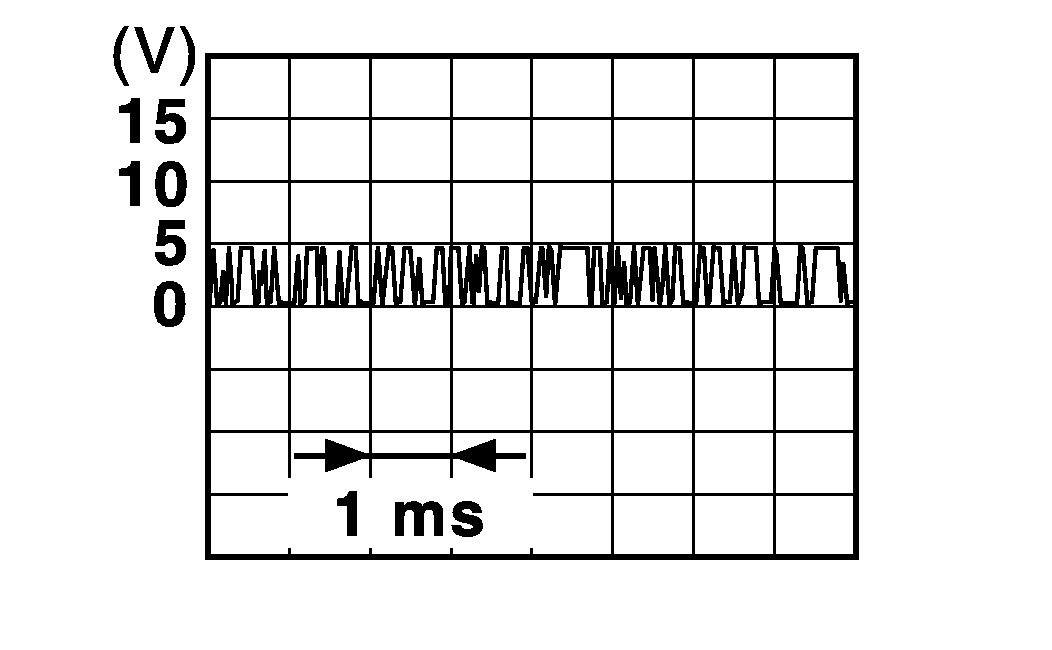

GNSJMKIA3841GB-841Courtesy of NISSAN NORTH AMERICA, INC.
21
(P)		 Ground Immobilizer one way communication (CLOCK) signal Input/Output Intelligent Key battery is removed Brake pedal depressed
NOTE:

Waveform varies each time when brake pedal is depressed

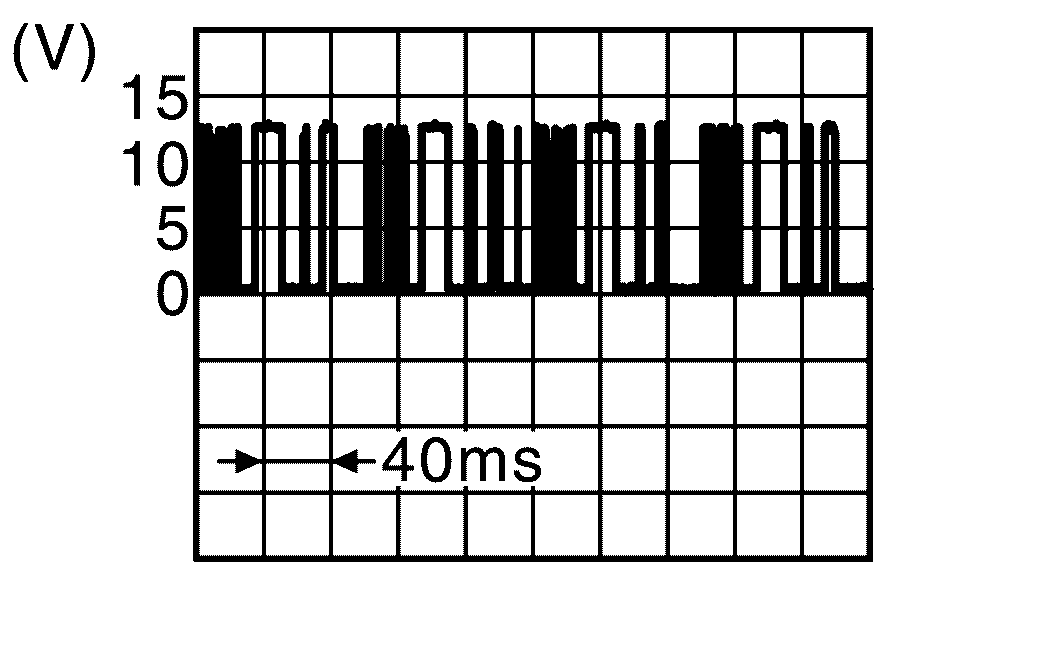

GNSJMKIA6232JP-232Courtesy of NISSAN NORTH AMERICA, INC.
Brake pedal released Battery voltage
22
(W)		 Ground Keyless tuner RSSI signal Input Push-button ignition switch OFF Waiting

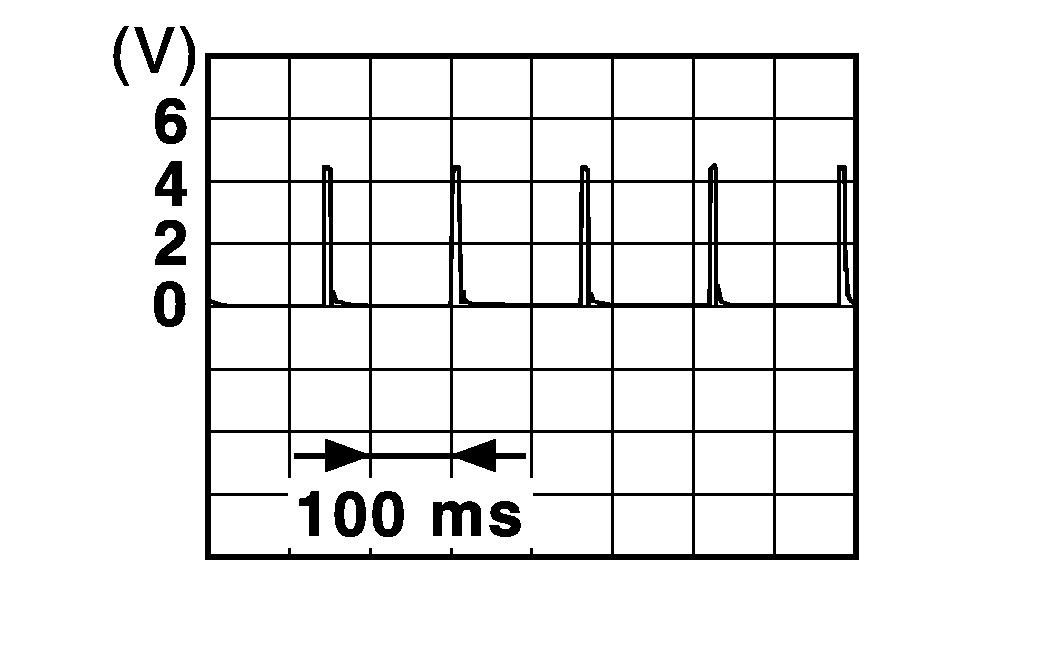

GNSJMKIA5952GB-952Courtesy of NISSAN NORTH AMERICA, INC.
When pressing and holding either button on Intelligent Key

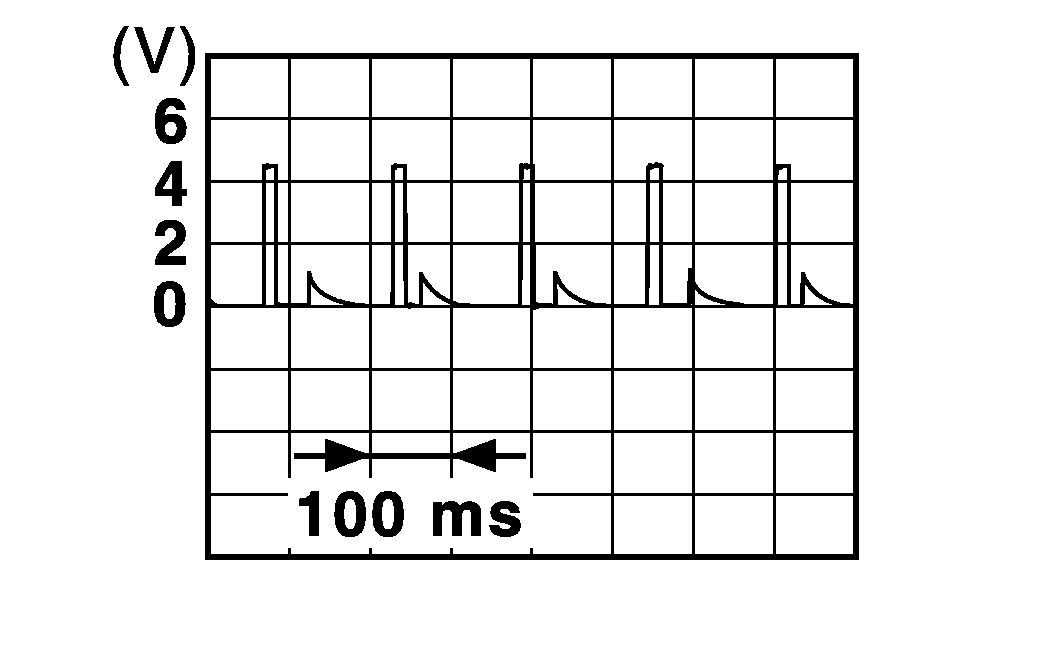

GNSJMKIA5953GB-953Courtesy of NISSAN NORTH AMERICA, INC.
23
(G)		 Ground Security indicator output Output Security indicator lamp ON 0 - 0.5 V
Blinking (push-button ignition switch OFF)
GNSJPMIA0590GB-590Courtesy of NISSAN NORTH AMERICA, INC.

12.0 V
OFF Battery voltage
24
(SB)		 Ground Dongle link (SERIAL) Input/Output Push-button ignition switch OFF 5 V
25
(LG)		 Ground Immobilizer two way communication signal Input/Output During waiting Brake pedal depressed
NOTE:

Waveform varies each time when brake pedal is depressed

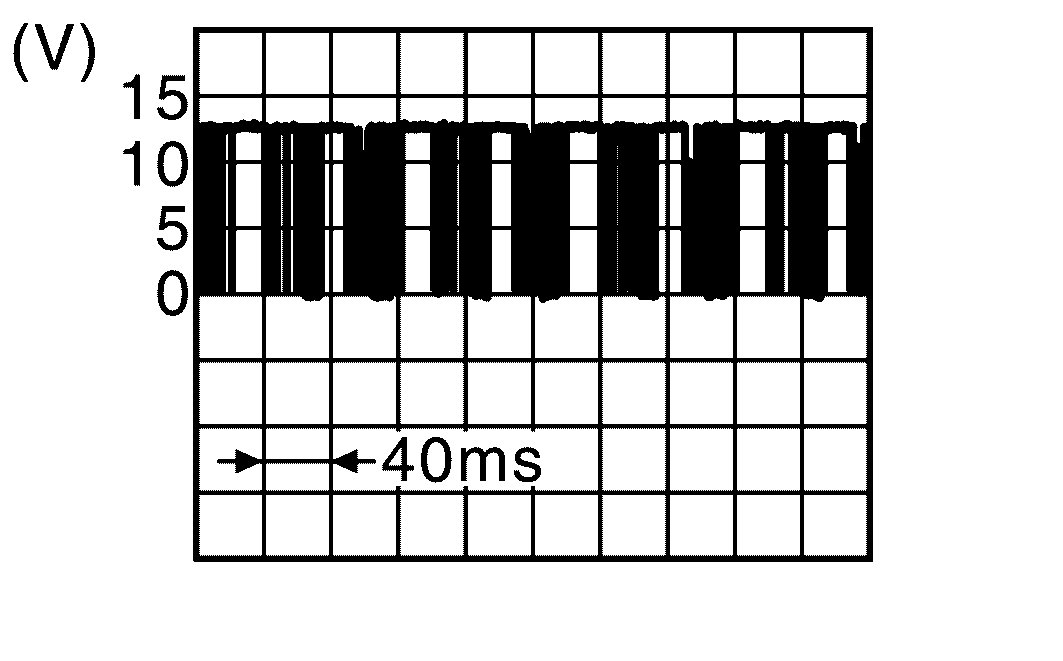

GNSJMKIA6233JP-233Courtesy of NISSAN NORTH AMERICA, INC.
Brake pedal released Battery voltage
26
(O)		 Ground THERMO amp. signal Input Push-button ignition switch ON and blower fan switch ON A/C switch OFF Battery voltage
A/C switch ON 0 V
27
(V)		 Ground Air conditioner switch signal Input A/C switch OFF Battery voltage
ON 0 V
28
(SB)		 Ground Blower fan sw signal Input Fan switch OFF 0 V
ON
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
29
(SB)		 Ground Hazard sw signal Input Hazard switch OFF Battery voltage
ON 0 - 1.5 V
32
(P)		 Ground OUTPUT 5 Output Combination switch OFF
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
FR FOG
GNSPKIB4956J-956Courtesy of NISSAN NORTH AMERICA, INC.

1.0 V
Wiper intermittent dial 1
Wiper intermittent dial 2
Wiper intermittent dial 6
Wiper intermittent dial 7
33
(V)		 Ground OUTPUT 4 Output Combination switch OFF
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
TAIL LAMP
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V
Wiper intermittent dial 1
Wiper intermittent dial 5
Wiper intermittent dial 6
34
(W)		 Ground OUTPUT 3 Output Combination switch OFF
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
HEADLAMP 2
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V
HI BEAM
Wiper intermittent dial 1
Wiper intermittent dial 2
Wiper intermittent dial 3
35
(GR)		 Ground OUTPUT 2 Output Combination switch OFF
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
HEADLAMP 1
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V
PASSING
FR WIPER HI
FR WIPER INT
(any intermittent position)
36
(LG)		 Ground OUTPUT 1 Output Combination switch OFF
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
TURN RH
GNSPKIB4958J-958Courtesy of NISSAN NORTH AMERICA, INC.

1.2 V
TURN LH
FR WIPER LO
FR WASHER
37
(R)		 Ground Park position switch signal Input Selector lever P (Park) position 0 - 1.5 V
Any position other than P (Park) Battery voltage
38
(G)		 Ground Keyless intelligent tuner signal Input Push-button ignition switch OFF or ACC 0 - 0.5 V
ON Battery voltage
39
(L)		 Ground CAN high Input/Output - -
40
(P)		 Ground CAN low Input/Output - -
42
(P)		 Ground Trunk room lamp switch signal Input Trunk lid switch OFF (trunk lid closed)
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
ON (trunk lid open) 0 V
45
(P)		 Ground Door switch (AS) signal Input Front door switch RH OFF (front RH door closed)
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
ON (front RH door open) 0 V
46
(LG)		 Ground Door switch (RR) signal Input Rear door switch RH OFF (rear RH door closed)
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
ON (rear RH door open) 0 V
47
(SB)		 Ground Door switch (DR) signal Input Front door switch LH OFF (front LH door closed)
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
ON (front LH door open) 0 V
48
(W)		 Ground Door switch (RL) signal Input Rear door switch LH OFF (rear LH door closed)
G04078527Courtesy of NISSAN NORTH AMERICA, INC.

7.0 - 8.0 V
ON (rear LH door open) 0 V
49
(L)		 Ground Luggage lamp control Output Trunk lid is closed (Trunk room lamp turns OFF) Battery voltage
Trunk lid is opened (Trunk room lamp turns ON) 0 - 1 V
51
(V)		 Ground Request sw (trunk) signal Input Trunk lid opener switch ON (Pressed) 0 - 1.5 V
OFF (Not pressed) Battery voltage
53
(R)		 Ground Trunk open output Output Trunk open switch OFF (Actuator is not activated) 0 V
ON (Actuator is activated) Battery voltage
55
(G)		 Ground Door unlock output (RR, RL) Output Rear doors UNLOCK (Actuator is activated) Battery voltage
Actuator is not activated 0 V
56
(W)		 Ground Battery saver output Output Interior room lamp battery saver timed out 0 V
Except when interior room lamp battery saver timed out Battery voltage
57
(Y)		 Ground Battery power supply Input Push-button ignition switch OFF Battery voltage
59
(G)		 Ground Door unlock output (AS) Output Front RH door UNLOCK (Actuator is activated) Battery voltage
Actuator is not activated 0 V
60
(V)		 Ground Flasher output (LEFT) Output Push-button ignition switch ON Turn signal switch OFF 0 V
Turn signal switch LH
GNSPKIC6370E-370Courtesy of NISSAN NORTH AMERICA, INC.

6.5 V
61
(W)		 Ground Flasher output (RIGHT) Output Push-button ignition switch ON Turn signal switch OFF 0 V
Turn signal switch RH
GNSPKIC6370E-370Courtesy of NISSAN NORTH AMERICA, INC.

6.5 V
63
(R)		 Ground Room lamp control Output Interior room lamp OFF Battery voltage
ON 0 - 1.0 V
65
(SB)		 Ground Door lock output Output All doors LOCK (Actuator is activated) Battery voltage
Actuator is not activated 0 V
66
(G)		 Ground Door unlock output Output All doors UNLOCK (Actuator is activated) Battery voltage
Actuator is not activated 0 V
67
(B)		 Ground Ground Output Push-button ignition switch ON 0 V
68
(L)		 Ground Power window power supply (IGN) Output Push-button ignition switch ON Battery voltage
70
(G)		 Ground Battery power supply Input Push-button ignition switch OFF Battery voltage
72
(L)		 Ground A/C indicator Input - -
75
(GR)		 Ground Request sw (DR) signal Input Driver door request switch ON (Pressed) 0 - 1.5 V
OFF (Not pressed) Battery voltage
76
(L)		 Ground Engine start sw Input Push-button ignition switch START pressed 0 - 1.5 V
Not pressed Battery voltage
78
(P)		 Ground Door antenna (DR) + Output Push-button ignition switch ON
Driver door request switch pressed		 Intelligent Key not in antenna detection area
(Approx. 2 m)

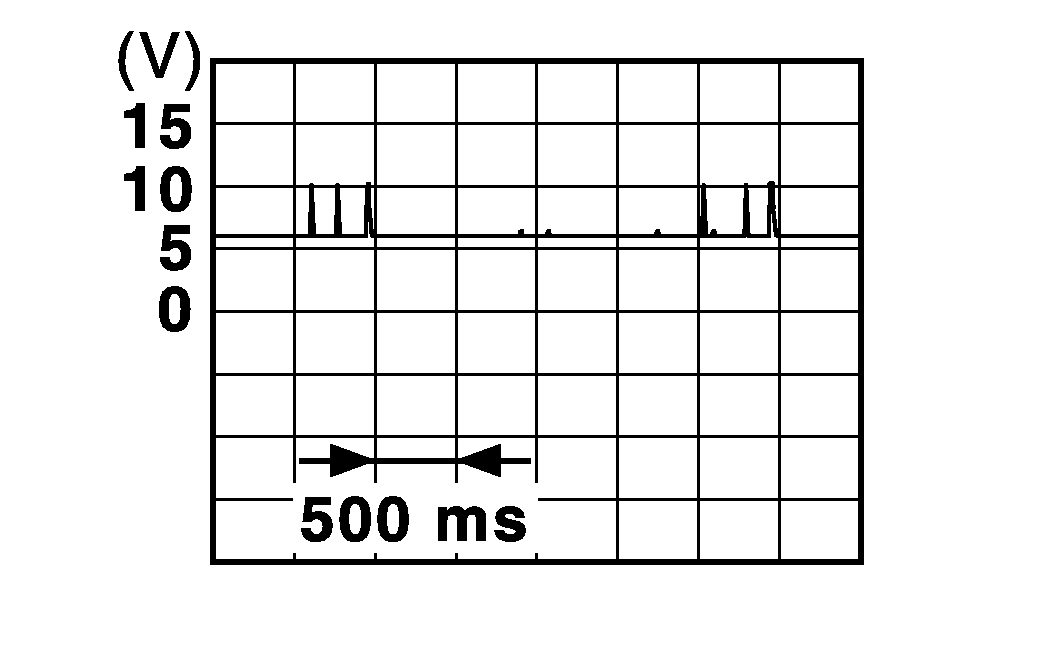

GNSJMKIA5954GB-954Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)

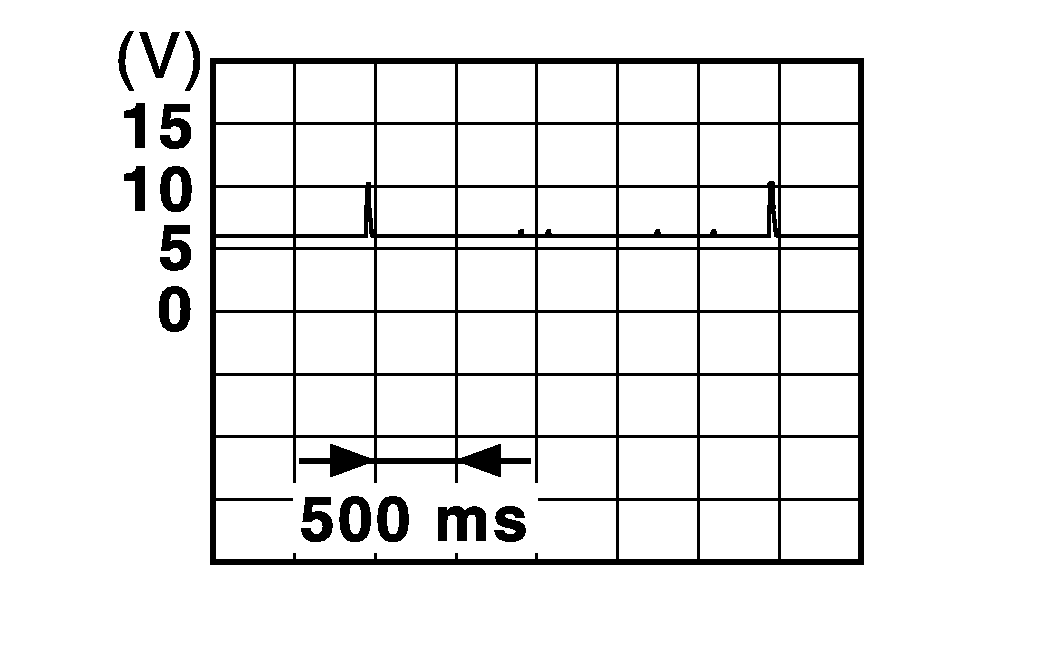

GNSJMKIA5955GB-955Courtesy of NISSAN NORTH AMERICA, INC.
79
(V)		 Ground Door antenna (DR) - Output Push-button ignition switch ON
Driver door request switch pressed		 Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5954GB-954Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA5955GB-955Courtesy of NISSAN NORTH AMERICA, INC.
80
(LG)		 Ground Door antenna (AS) + Output Push-button ignition switch ON
Passenger door request switch pressed		 Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5954GB-954Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA5955GB-955Courtesy of NISSAN NORTH AMERICA, INC.
81
(Y)		 Ground Door antenna (AS) - Output Push-button ignition switch ON
Passenger door request switch pressed		 Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5954GB-954Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA5955GB-955Courtesy of NISSAN NORTH AMERICA, INC.
82
(W)		 Ground Outside key antenna (rear bumper) + Output Push-button ignition switch ON
Trunk lid opener switch pressed		 Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5954GB-954Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA5955GB-955Courtesy of NISSAN NORTH AMERICA, INC.
83
(B)		 Ground Outside key antenna (rear bumper) - Output
When the trunk lid opener switch is operated with push-button ignition switch ON		 Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5954GB-954Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA5955GB-955Courtesy of NISSAN NORTH AMERICA, INC.
84
(P)		 Ground Inside key antenna (instrument center) + Output Push-button ignition switch ON Intelligent Key not in antenna detection area
(Approx. 2 m)

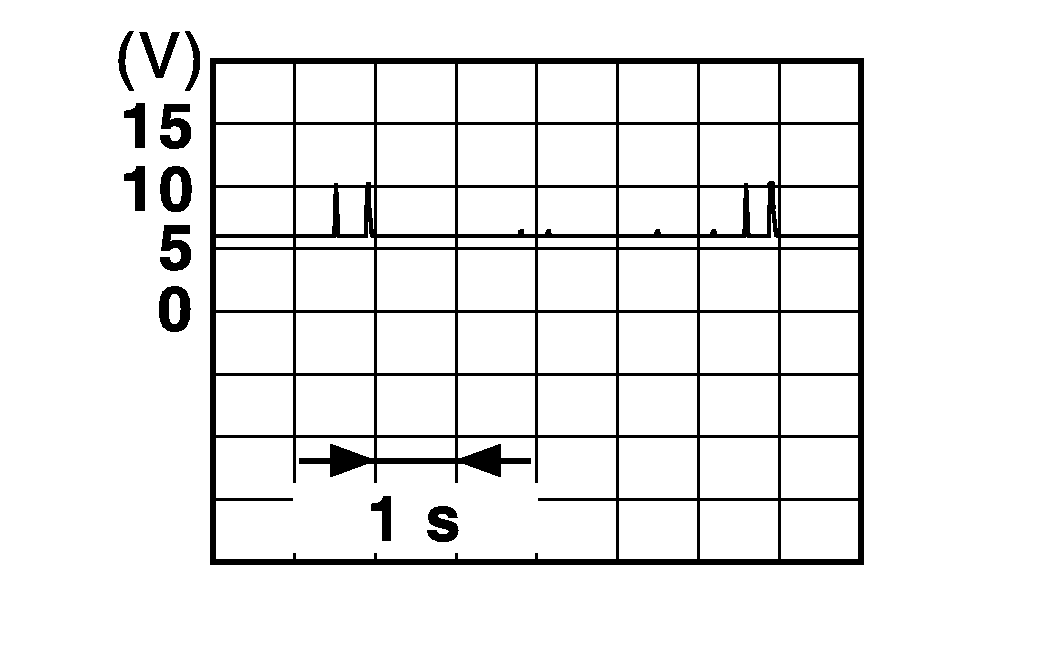

GNSJMKIA5951GB-951Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA3839GB-839Courtesy of NISSAN NORTH AMERICA, INC.
85
(L)		 Ground Inside key antenna (instrument center) - Output Push-button ignition switch ON Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5951GB-951Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA3839GB-839Courtesy of NISSAN NORTH AMERICA, INC.
86
(G)		 Ground Inside key antenna (console) + Output Push-button ignition switch ON Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5951GB-951Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA3839GB-839Courtesy of NISSAN NORTH AMERICA, INC.
87
(R)		 Ground Inside key antenna (console) - Output Push-button ignition switch ON Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5951GB-951Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA3839GB-839Courtesy of NISSAN NORTH AMERICA, INC.
88
(V)		 Ground Inside key antenna (trunk room) + Output Push-button ignition switch ON Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5951GB-951Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA3839GB-839Courtesy of NISSAN NORTH AMERICA, INC.
89
(LG)		 Ground Inside key antenna (trunk room) - Output Push-button ignition switch ON Intelligent Key not in antenna detection area
(Approx. 2 m)
GNSJMKIA5951GB-951Courtesy of NISSAN NORTH AMERICA, INC.
Intelligent Key in antenna detection area
(80 cm or less)
GNSJMKIA3839GB-839Courtesy of NISSAN NORTH AMERICA, INC.
90
(W)		 Ground Push-button ignition switch illumination power supply Output Push-button ignition switch illumination ON Battery voltage
OFF 0 - 1.5 V
91
(V)		 Ground ACC/ON indicator lamp Output Push-button ignition switch OFF Battery voltage
ACC or ON 0 - 1.5 V
92
(B)		 Ground Push-button ignition switch illumination lamp Output Push-button ignition switch illumination ON 5.5 V
OFF 0 - 1.5 V
93
(R)		 Ground Intelligent Key warning buzzer Output Intelligent Key warning buzzer Sounding 0 - 1.5 V
Not sounding Battery voltage
96
(SB)		 Ground Accessory relay control Output Ignition Push-button switch OFF 0 - 0.5 V
ACC or ON Battery voltage
97
(R)		 Ground Starter relay control Output Push-button ignition switch ON Selector lever in P (Park) or N (Neutral) position Battery voltage
Selector lever not in P (Park) or N (Neutral) position 0 - 0.5 V
98
(BG)		 Ground Ignition relay (IPDM E/R) control Output Push-button ignition switch OFF or ACC Battery voltage
ON 0 - 0.5 V
99
(GR)		 Ground Ignition relay (F/B) control Output Push-button ignition switch OFF or ACC 0 - 0.5 V
ON Battery voltage
100
(P)		 Ground Request sw (AS) signal Input Passenger door request switch ON (Pressed) 0 - 1.5 V
OFF (Not pressed) Battery voltage
102
(BR)		 Ground P/N position Input Selector lever Selector lever in P (Park) or N (Neutral) position Battery voltage
Selector lever not in P (Park) or N (Neutral) position 0 - 1.5 V
103
(LG)		 Ground Front defrost switch Input - -
104
(V)		 Ground CVT shift selector (park position switch) power supply Output Push-button ignition switch ON Battery voltage
105
(SB)		 Ground Stop lamp switch 2 Input Push-button ignition switch OFF Battery voltage
106
(Y)		 Ground Blower relay control Output Push-button ignition switch OFF or ACC 0 - 0.5 V
ON Battery voltage
scientia non olet · About LEMON Manuals
