Engine Cooling System Schematic

M/T models

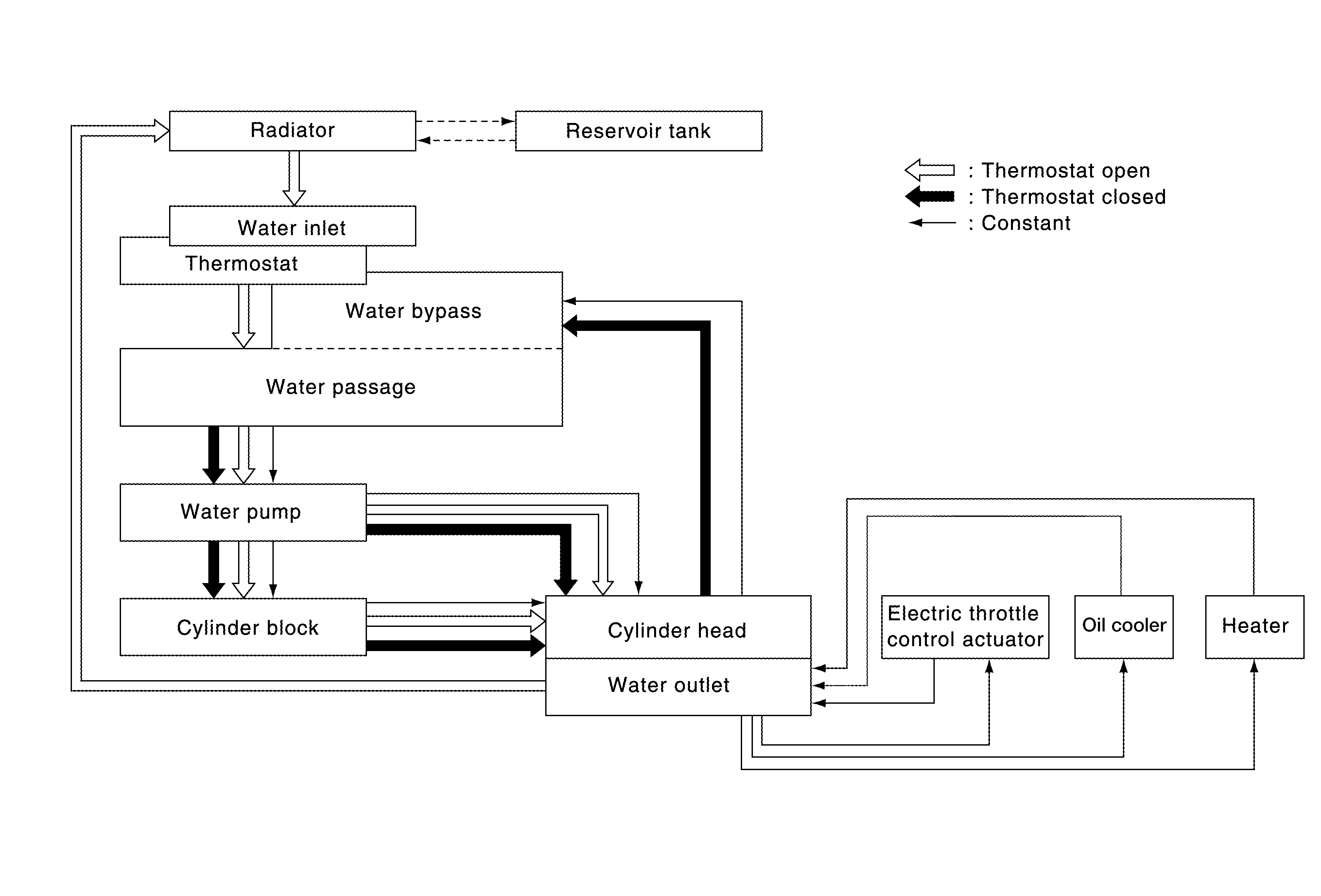

Fig 1: Engine Cooling System Schematic (M/T Models)
G08199384Courtesy of NISSAN NORTH AMERICA, INC.

CVT models

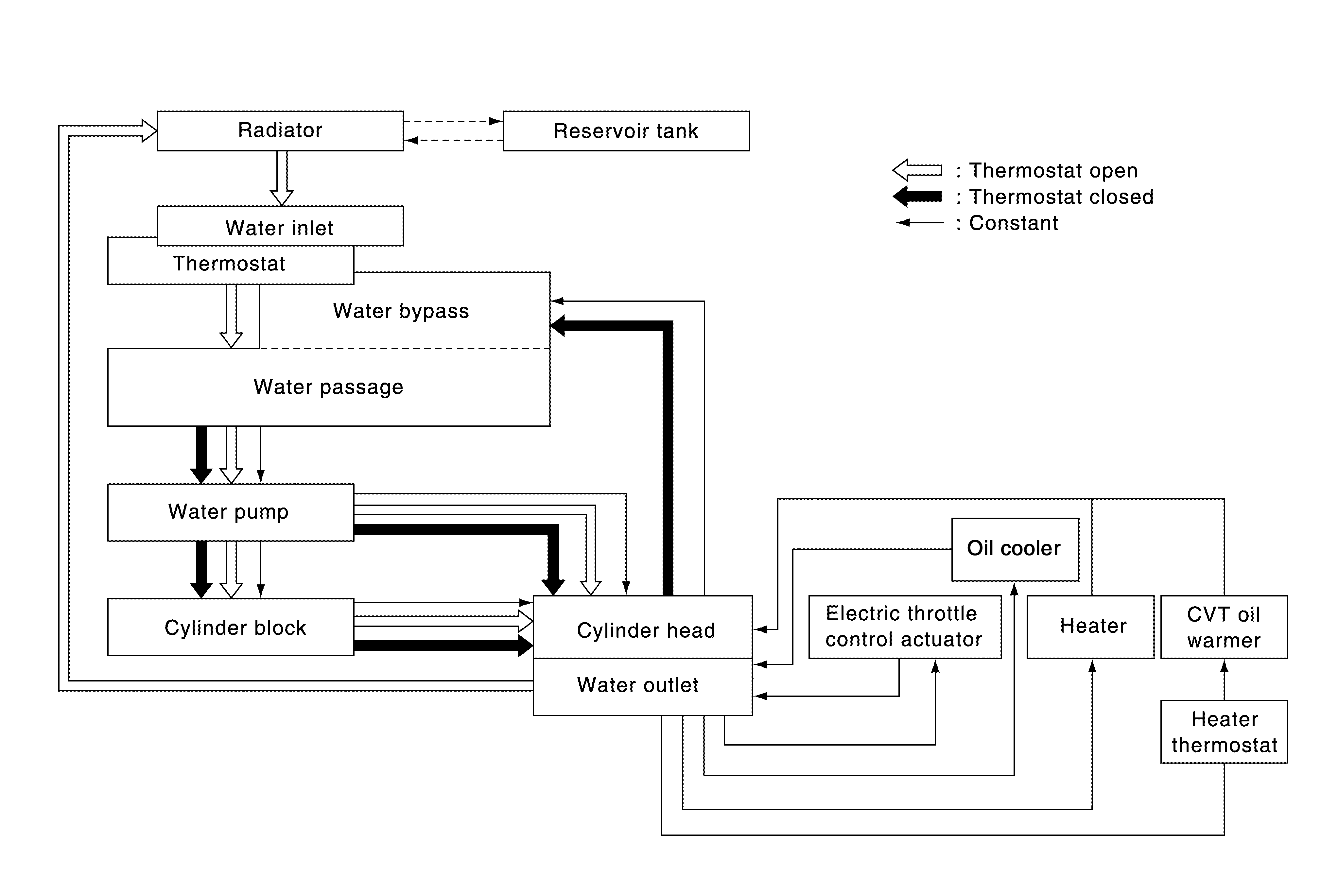

Fig 2: Engine Cooling System Schematic (CVT Models)
G08199385Courtesy of NISSAN NORTH AMERICA, INC.
