Exploded View With Torque Specifications

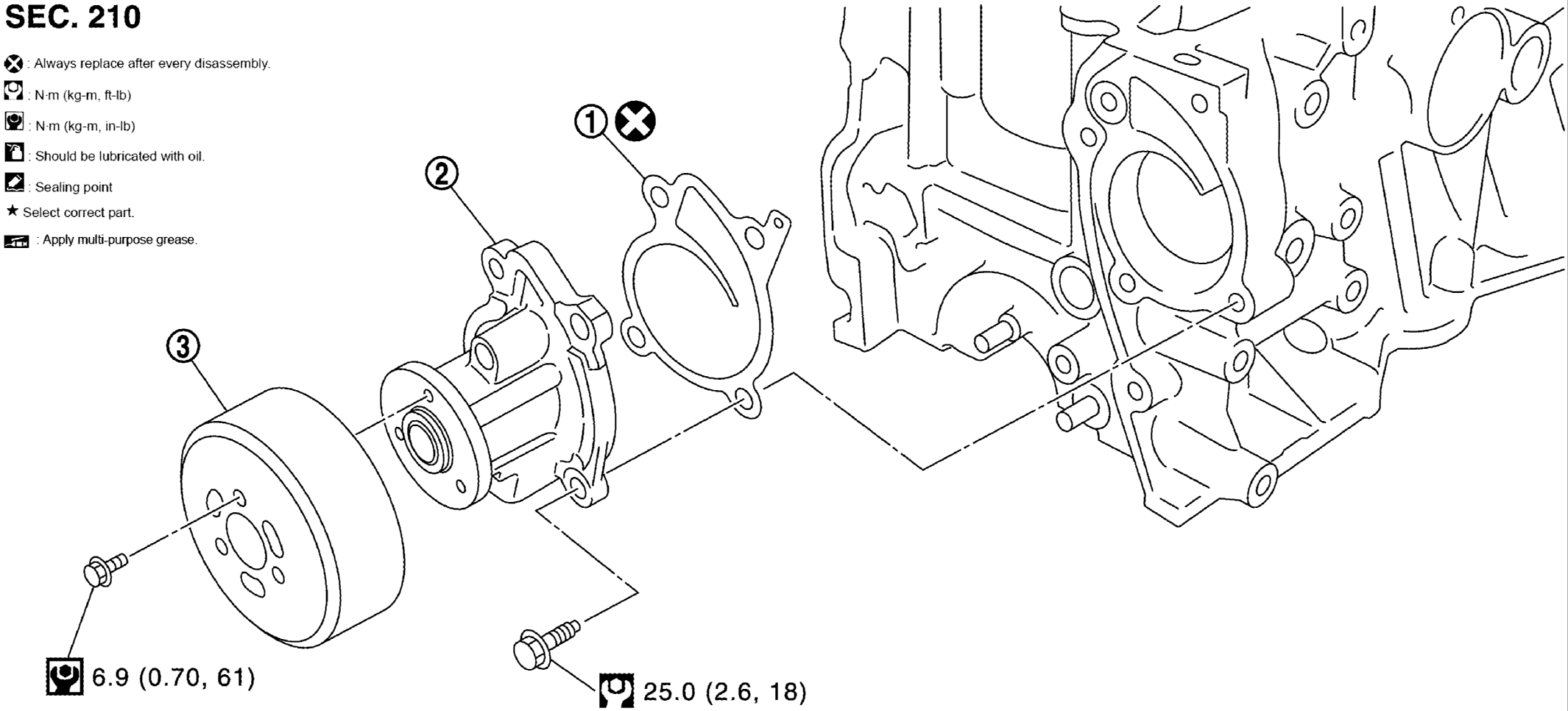

Fig 1: Exploded View Of Water Pump With Torque Specifications

GNSJPBIA4104GB-104

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Gasket

2.

Water pump

3.

Water pump pulley
