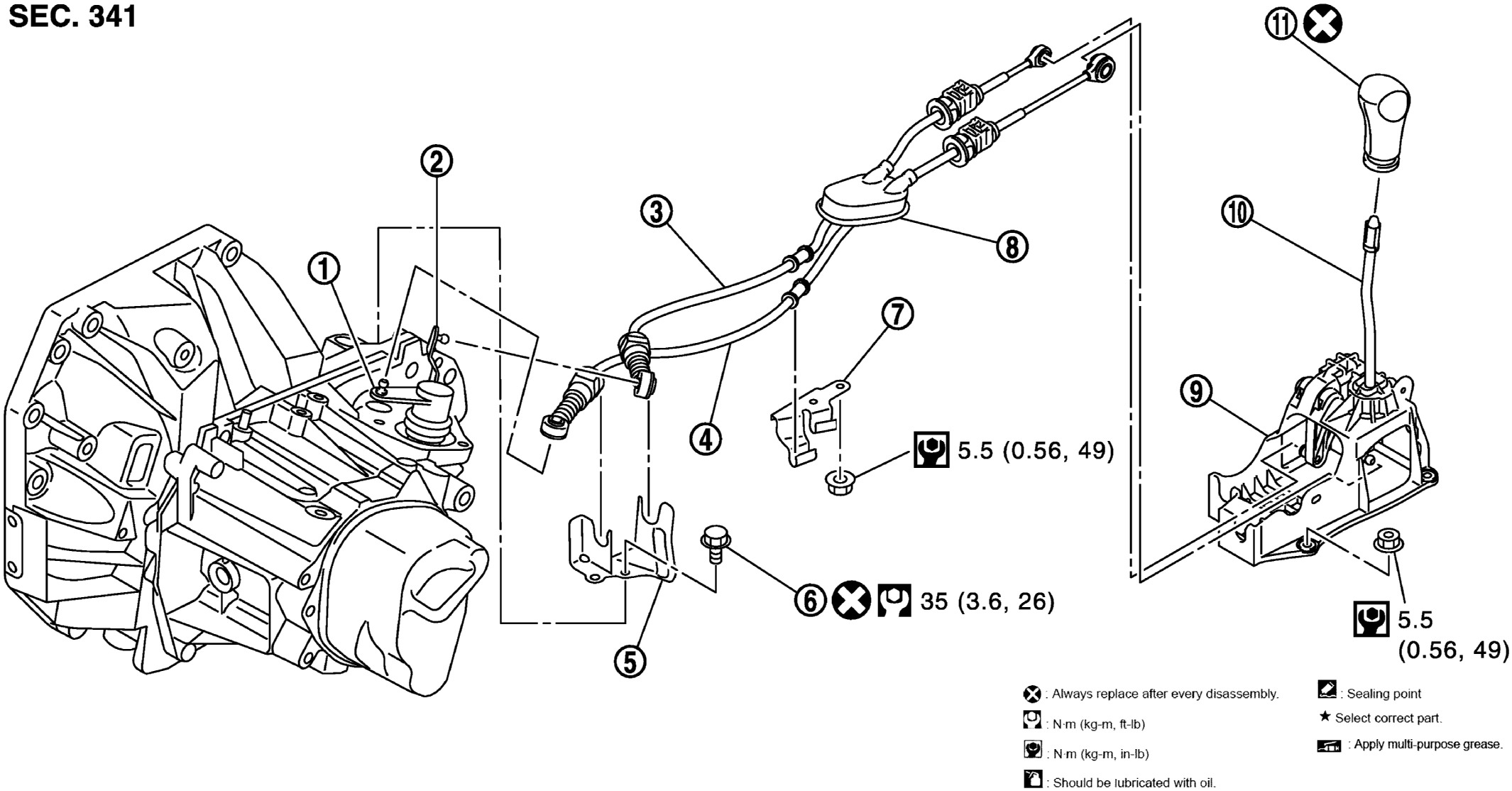

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Shifter lever A |
2. |
Selector lever |
3. |
Selector cable |
| 4. |
Shifter cable |
5. |
Cable mounting bracket |
6. |
Tapping bolt |
| 7. |
Bracket |
8. |
Grommet |
9. |
Shift selector assembly |
| 10. |
Shift selector |
11. |
Shift selector handle |
|
|
