Exploded View With Torque Specifications

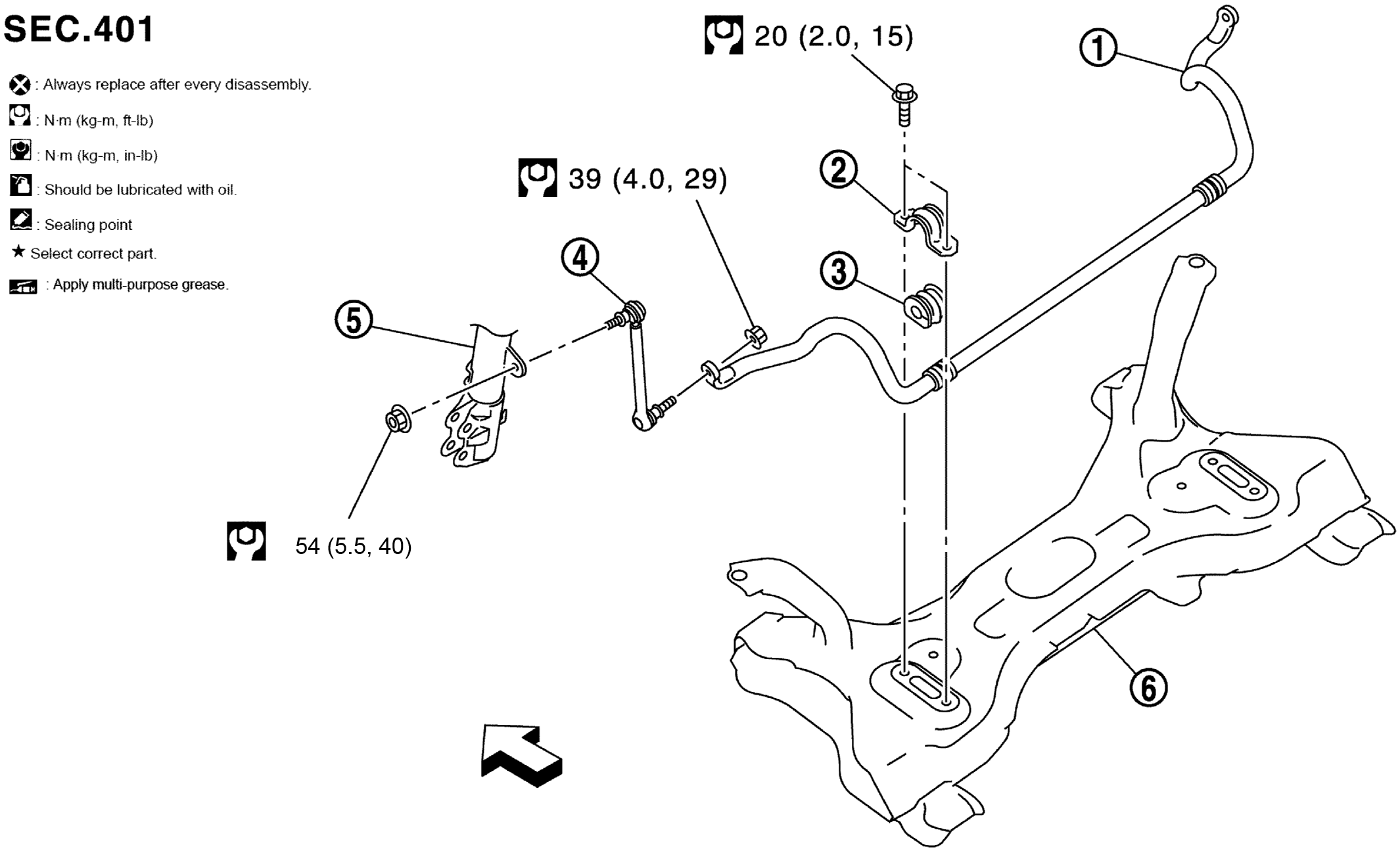

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar	2.	Stabilizer clamp	3.	Stabilizer bushing
4.	Stabilizer connecting rod	5.	Strut	6.	Front suspension member
Front
