Exploded View With Torque Specifications

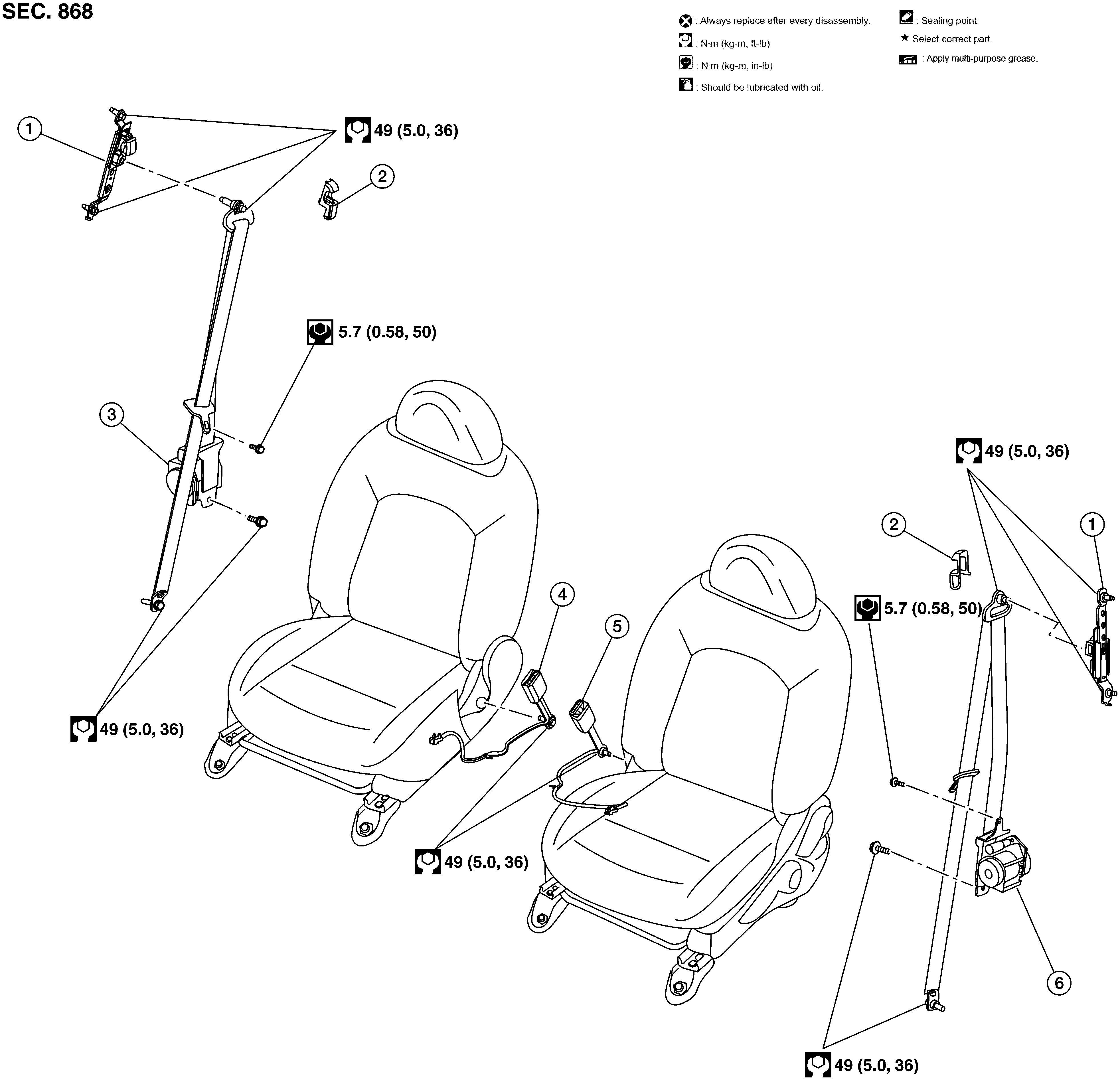

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications
GNSAWHIA0550ZZ-550Courtesy of NISSAN NORTH AMERICA, INC.
1. Seat belt height adjuster (LH/RH) 2. Seat belt height adjuster finisher (LH/RH) 3. Seat belt retractor (RH)
4. Seat belt buckle (RH) 5. Seat belt buckle (LH) 6. Seat belt retractor (LH)
