Exploded View With Torque Specifications

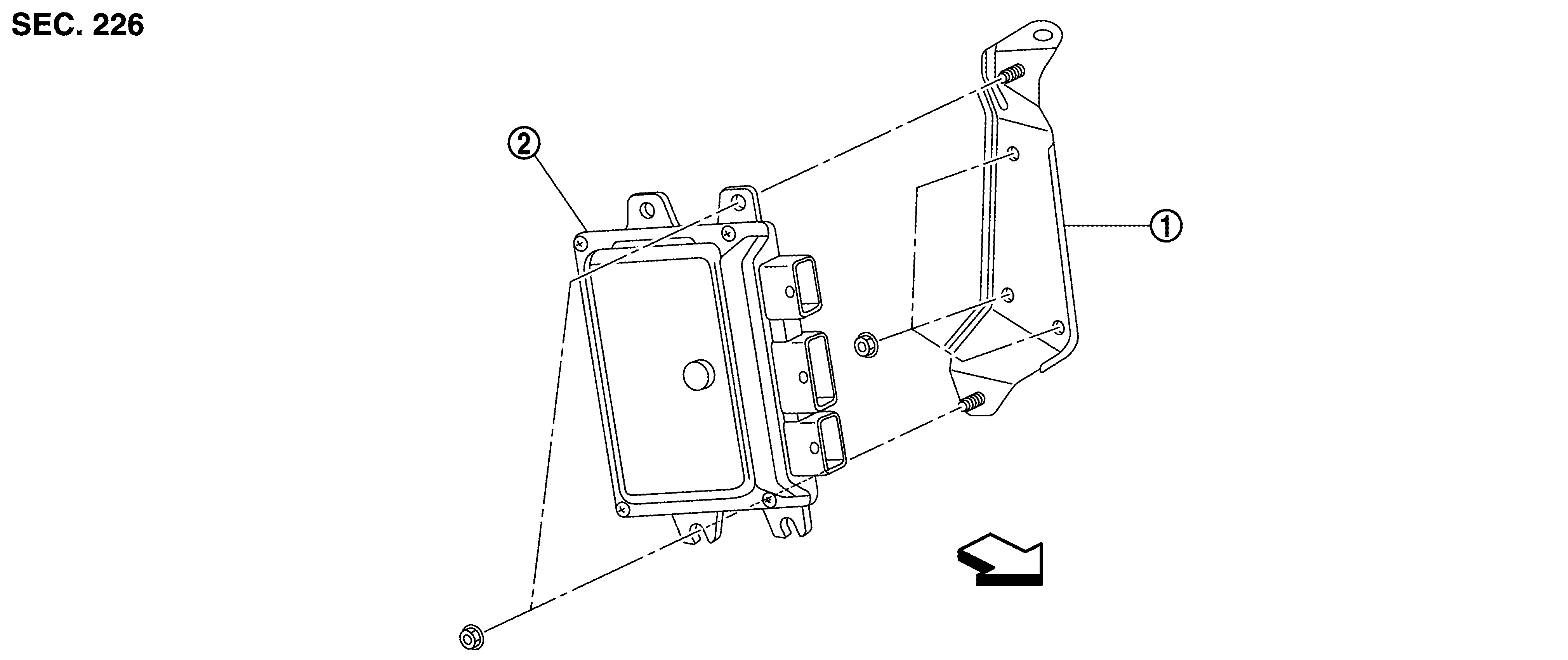

Fig 1: Exploded View Of ECM

GNSJPBIA4276ZZ-276

Courtesy of NISSAN NORTH AMERICA, INC.

1.

ECM bracket

2.

ECM

Front
