Engine Lubrication System Schematic

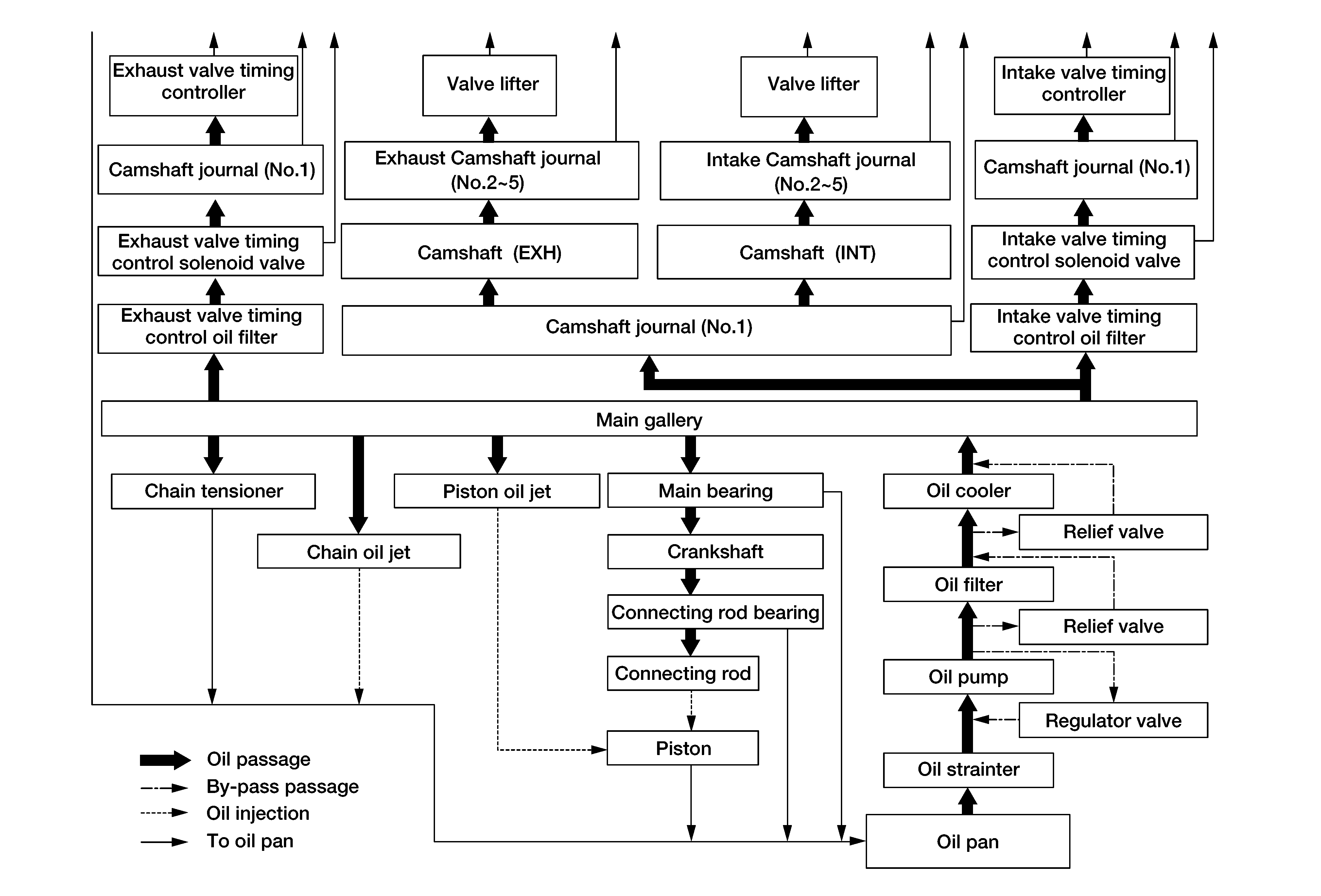

Fig 1: Engine Lubrication System Schematic

G09617488

Courtesy of NISSAN NORTH AMERICA, INC.
