Exploded View With Torque Specifications

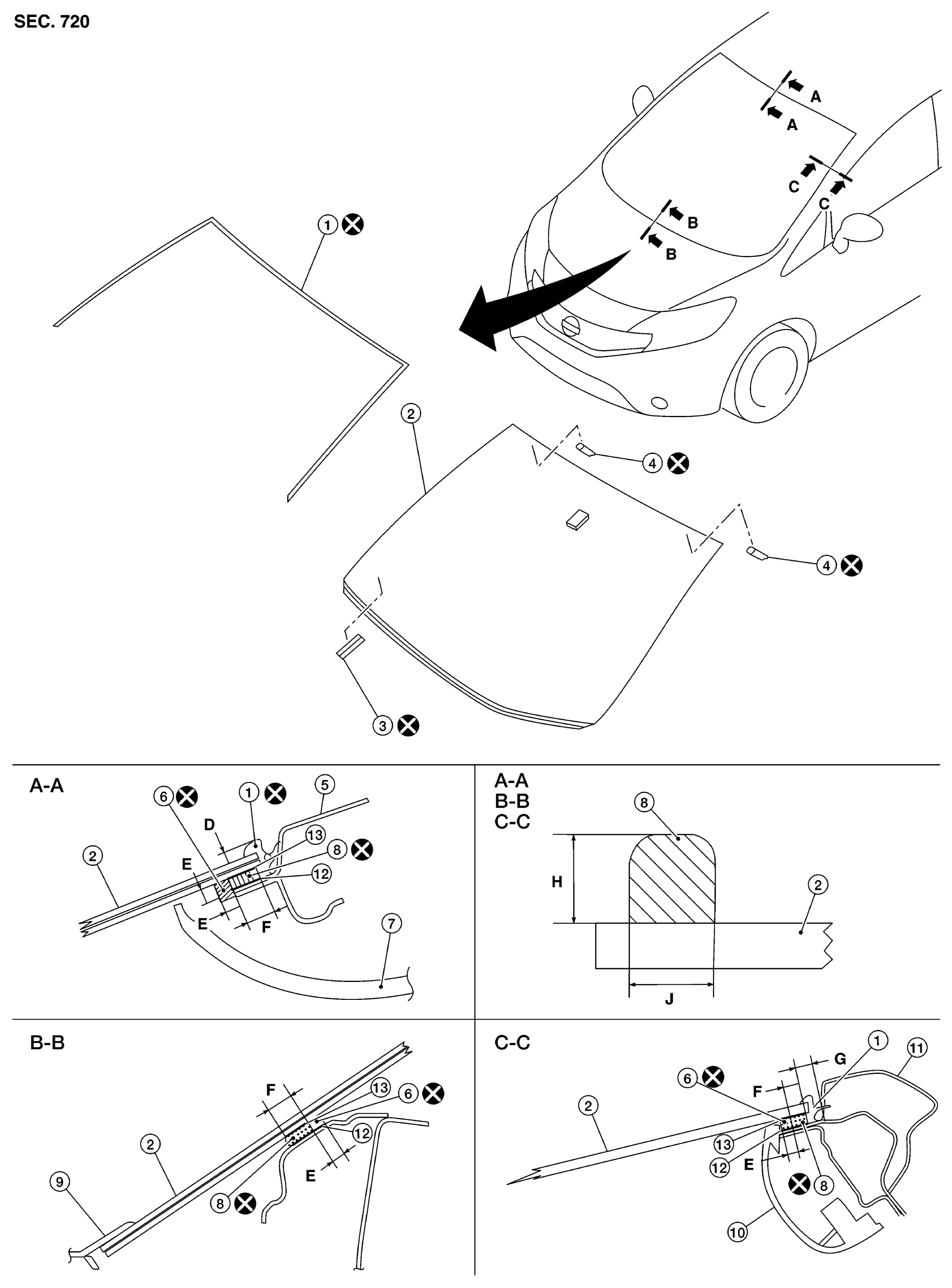

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield glass molding	2.	Windshield glass	3.	Spacer
4.	Spacer	5.	Roof	6.	Dam rubber
7.	Headlining	8.	Adhesive	9.	Cowl top cover
10.	Front pillar finisher	11.	Body side outer	12.	Body primer
13.	Primer	D.	3.8 mm (0.15 in)	E.	5.0 mm (0.20 in)
F.	8.0 mm (0.31 in)	G.	6.2 mm (0.24 in)	H.	12.0 - 14.0 mm (0.47 - 0.55 in)
J.	7.0 - 9.0 mm (0.28 - 0.35 in)
