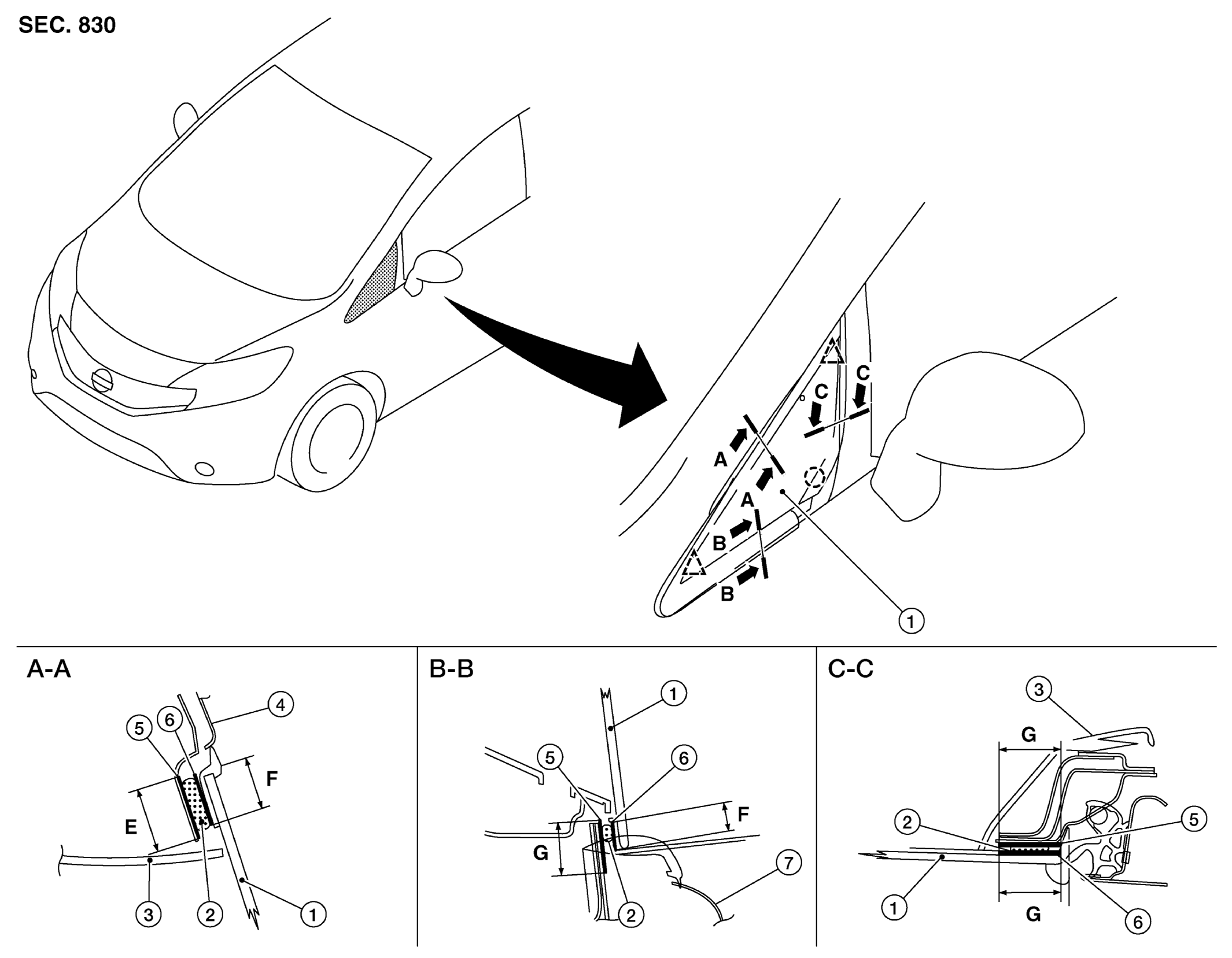

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Opera window glass |
2. |
Adhesive |
3. |
Front pillar finisher |
| 4. |
Body side outer |
5. |
Body primer |
6. |
Primer |
| 7. |
Front fender |
E. |
12.0 mm (0.47 in) |
F. |
11.0 mm (0.43 in) |
| G. |
20.0 mm (0.79 in) |
 |
Clip |
 |
Pawl |
