Exploded View With Torque Specifications

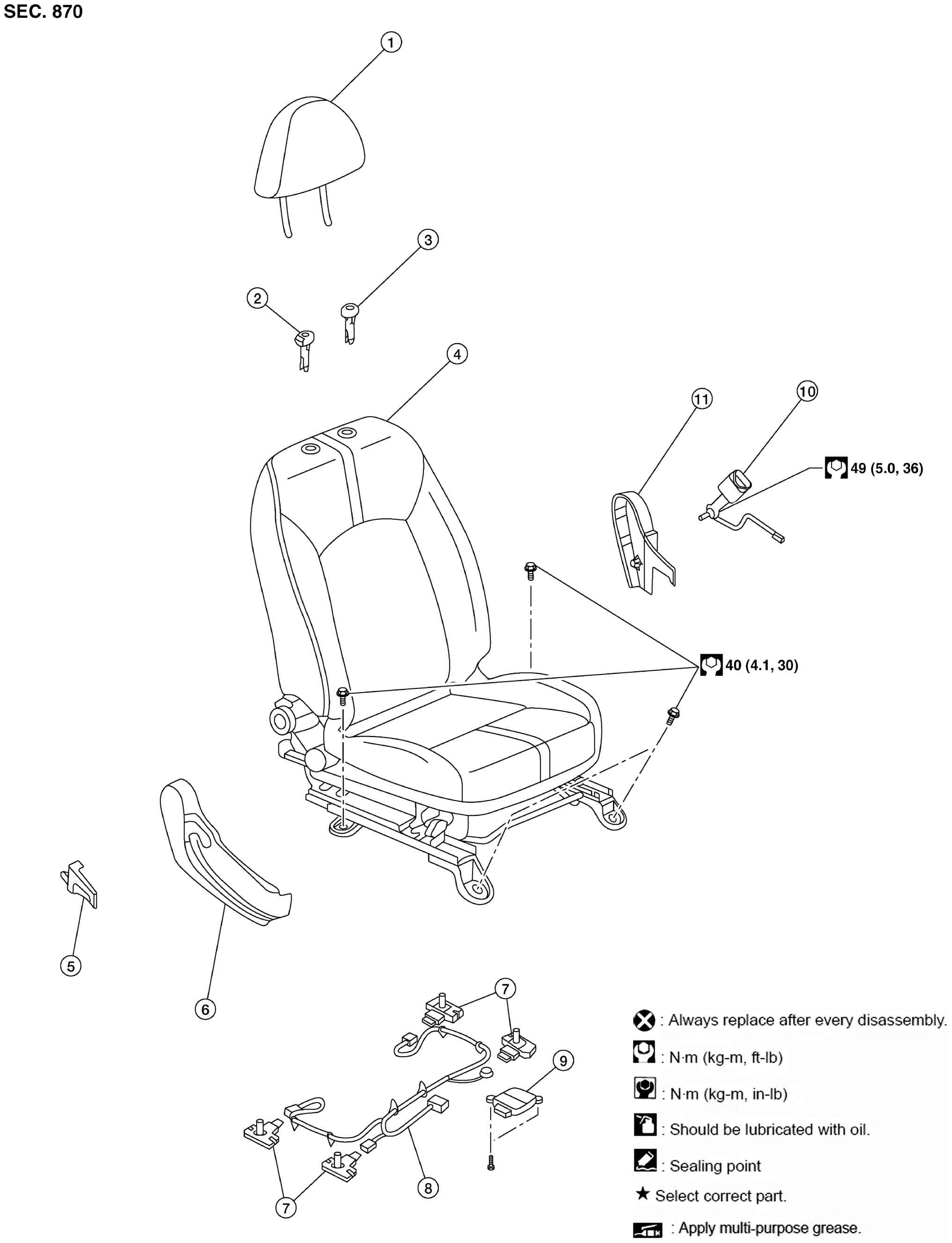

Fig 1: Exploded View Of Passenger Side With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Headrest holder (free)	3.	Headrest holder (locked)
4.	Seat assembly	5.	Recline lever	6.	Seat cushion outer finisher (RH)
7.	Occupant classification system sensors	8.	Occupant classification system harness	9.	Occupant classification system control unit
10.	Seat belt buckle	11.	Seat cushion outer finisher (LH)
