Descriptions For Clips

Replace any clips which are damaged during removal or installation.

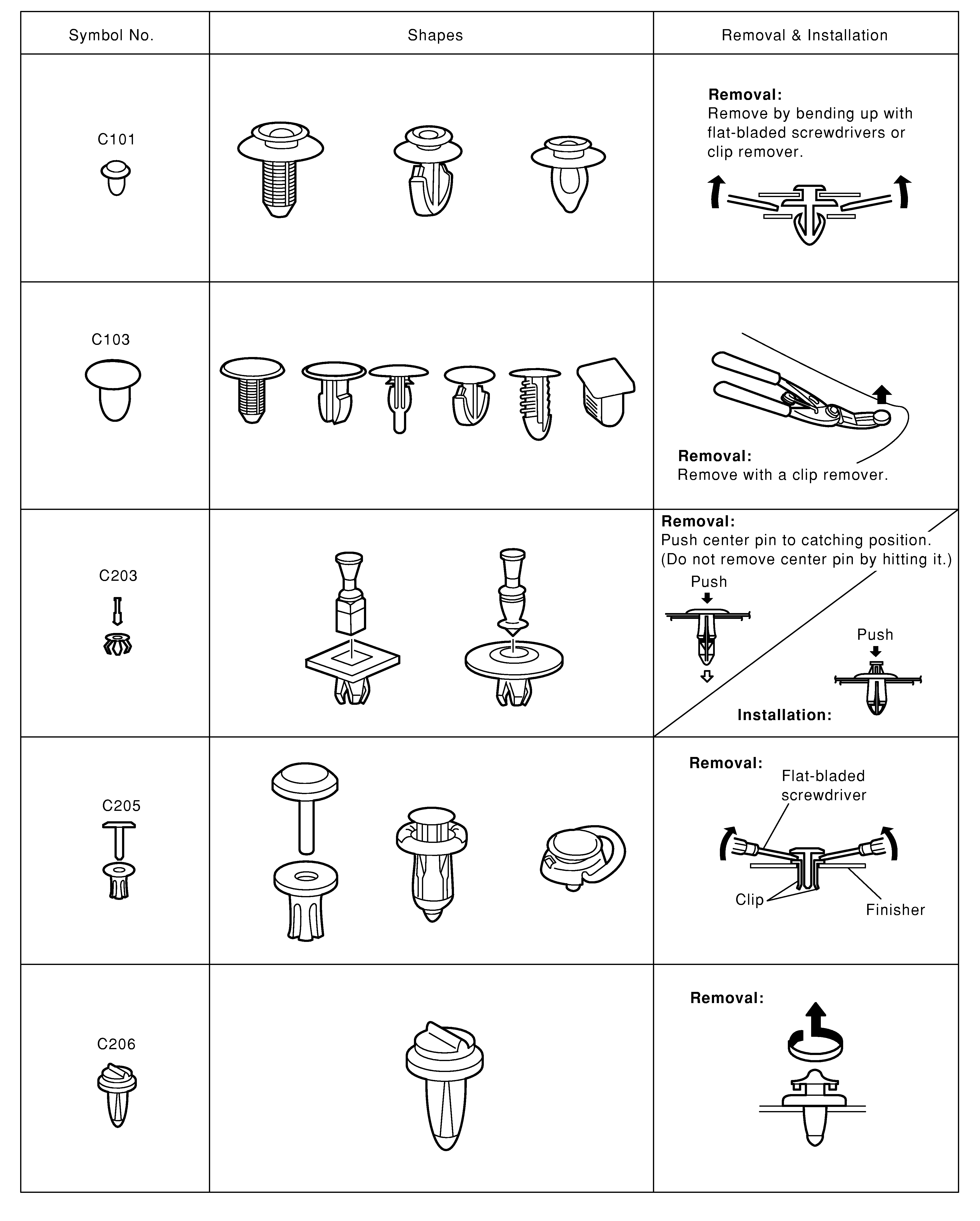

Fig 1: Clips And Fasteners Removal And Installation Chart (1 Of 4)
G04077514Courtesy of NISSAN NORTH AMERICA, INC.

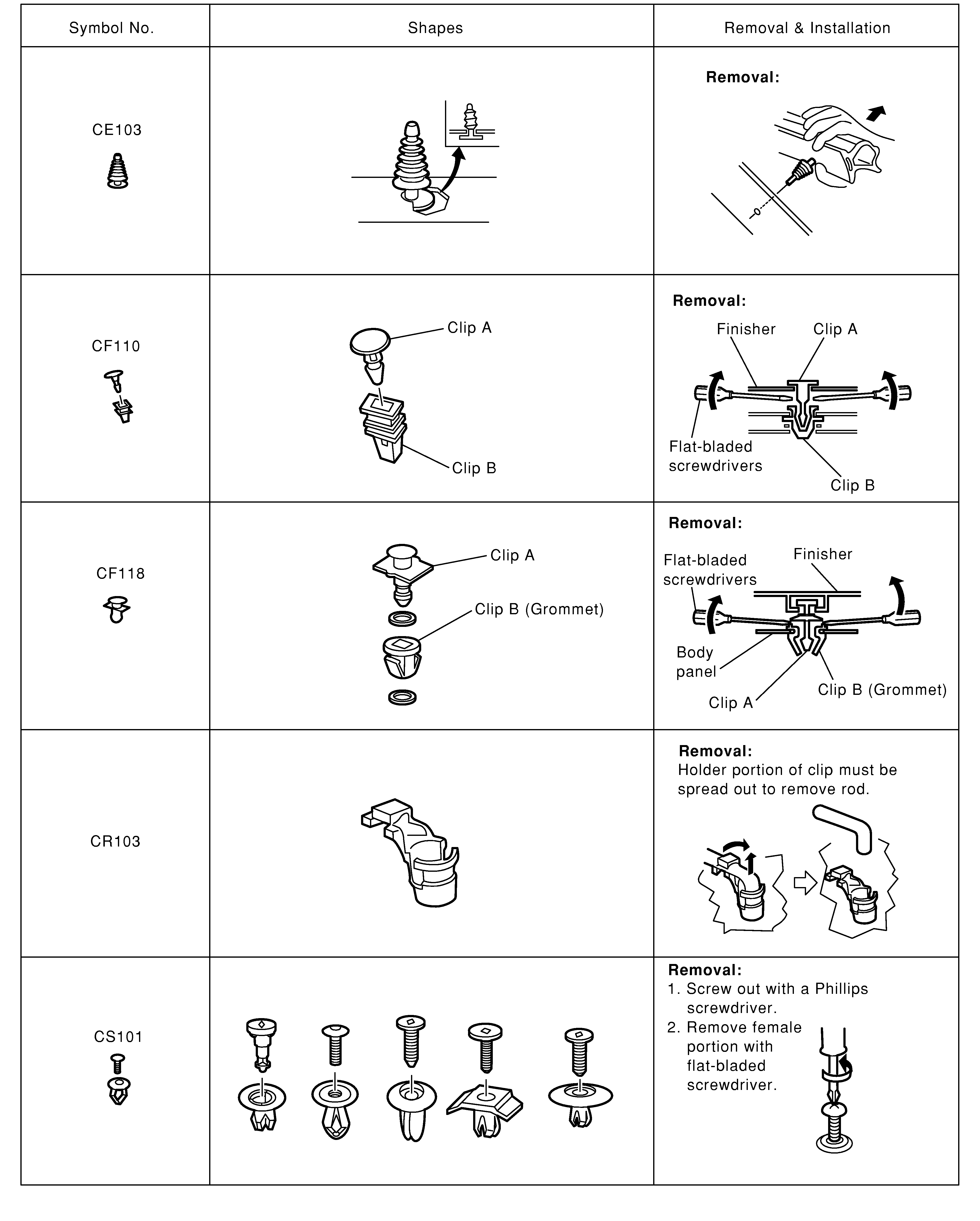

Fig 2: Clips And Fasteners Removal And Installation Chart (2 Of 4)
G04077515Courtesy of NISSAN NORTH AMERICA, INC.

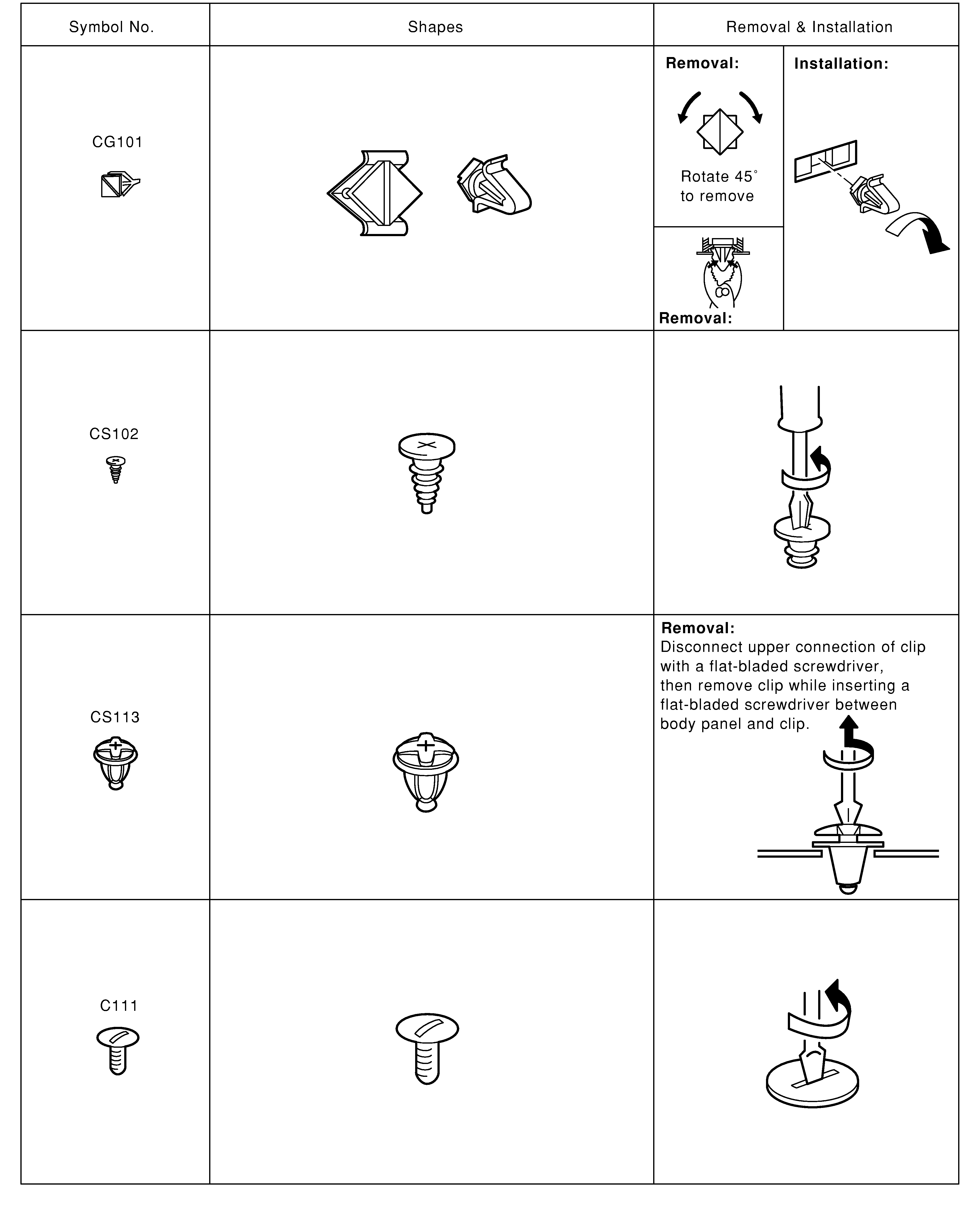

Fig 3: Clips And Fasteners Removal And Installation Chart (3 Of 4)
G04077516Courtesy of NISSAN NORTH AMERICA, INC.

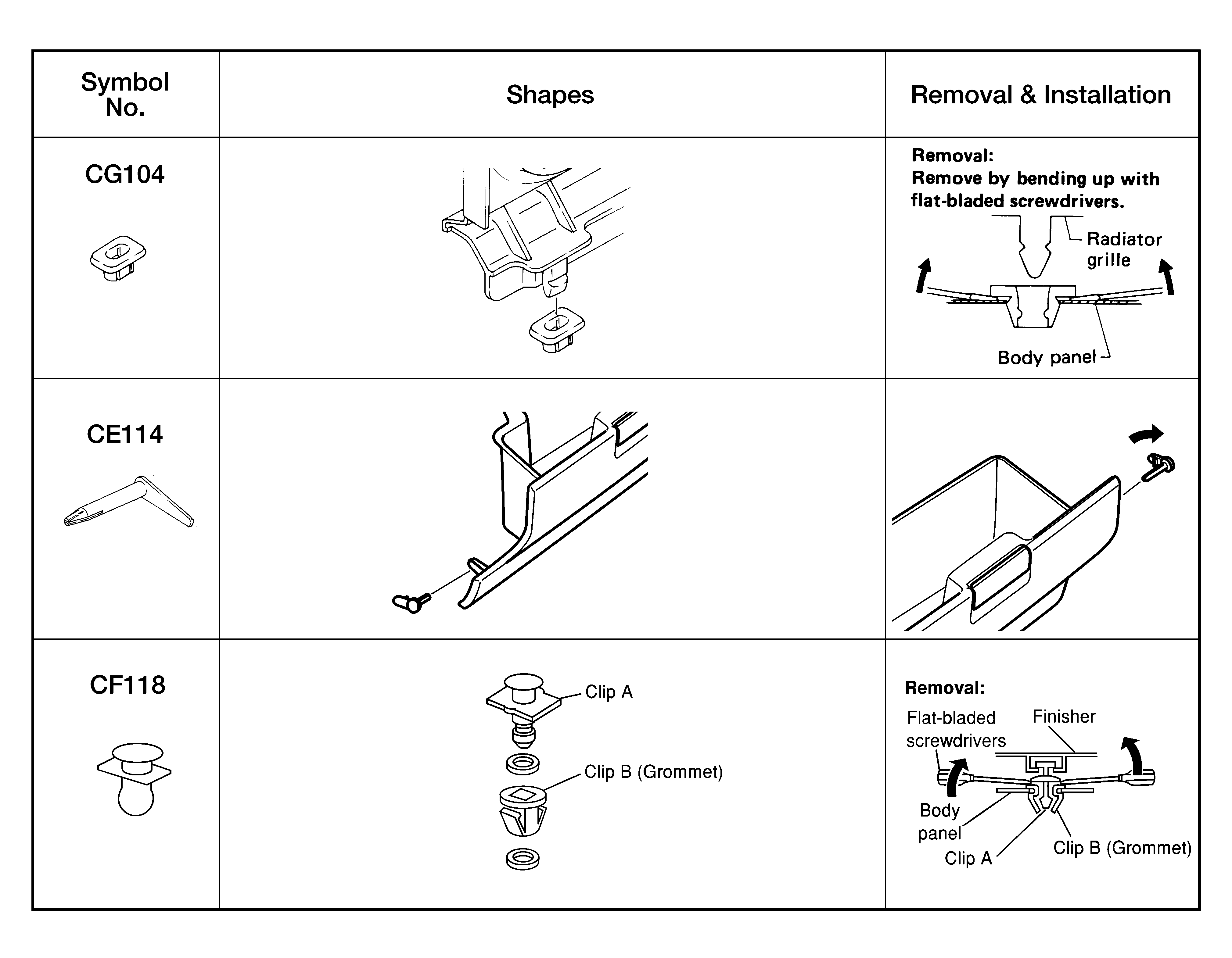

Fig 4: Clips And Fasteners Removal And Installation Chart (4 Of 4)
G06986957Courtesy of NISSAN NORTH AMERICA, INC.
