Exploded View With Torque Specifications

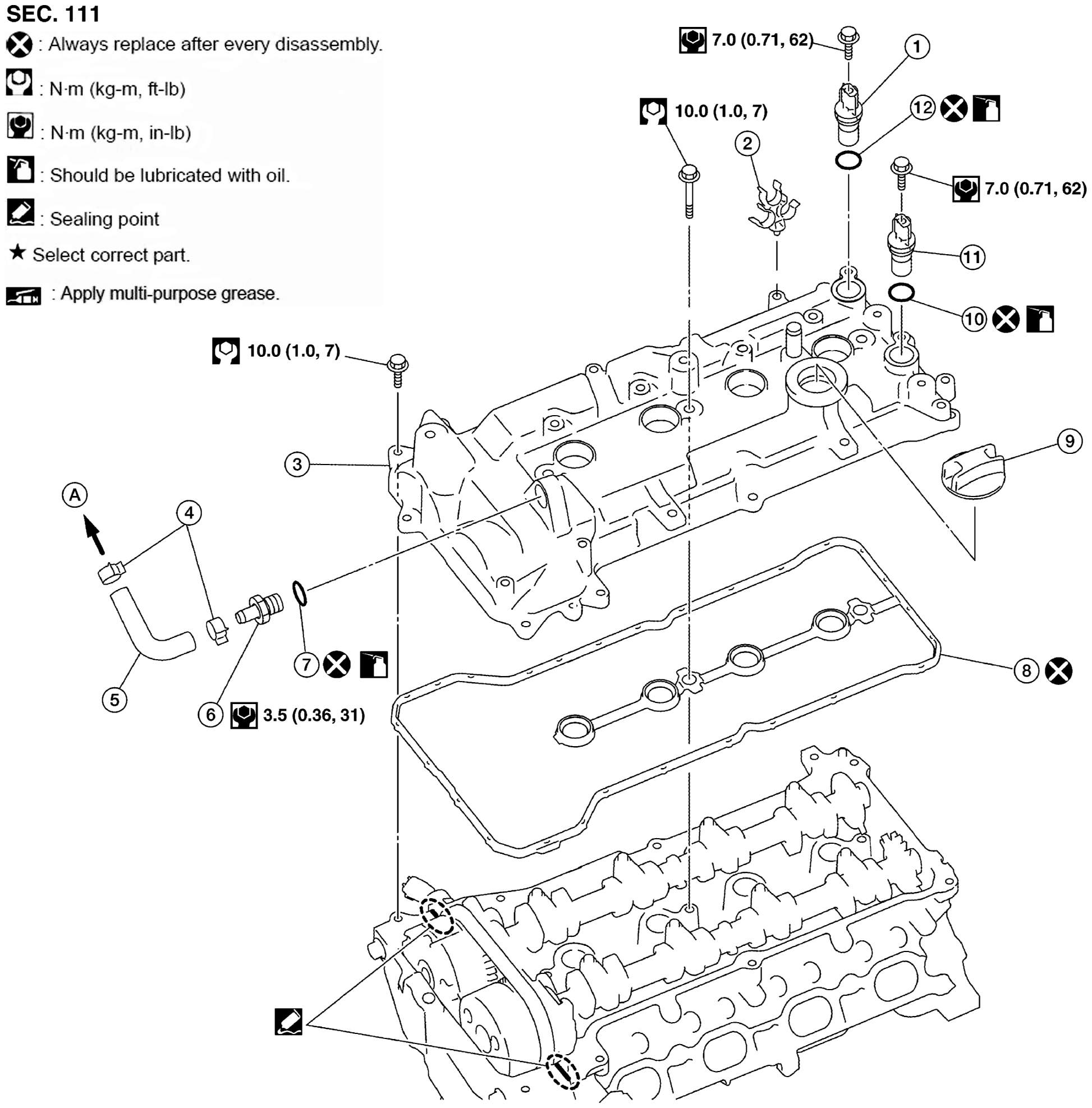

Fig 1: Exploded View Of Rocker Cover With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Exhaust camshaft position sensor	2.	Clip	3.	Rocker cover
4.	Clamp	5.	Hose	6.	PCV valve
7.	O - ring	8.	Rocker cover gasket	9.	Oil filler cap
10.	O - ring	11.	Intake camshaft position sensor	12.	O-ring
A.	To intake manifold
