CVT UNIT Connector End View (F46)

Connector Color: GRAY

Fig 1: Terminal-side

GNSW82999

Courtesy of NISSAN NORTH AMERICA, INC.

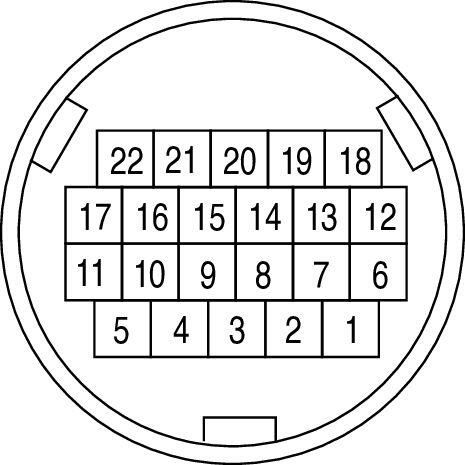

Fig 2: Harness-side

GNSW82998

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR/B	-
2	Y/B	-
3	-	-
4	-	-
5	-	-
6	G/B	-
7	BR/W	-
8	G	-
9	-	-
10	-	-
11	-	-
12	G/W	-
13	-	-
14	L/R	-
15	R/W	-
16	L/W	-
17	V	-
18	LG	-
19	-	-
20	V	-
21	-	-
22	LG	-

Circuit Diagram

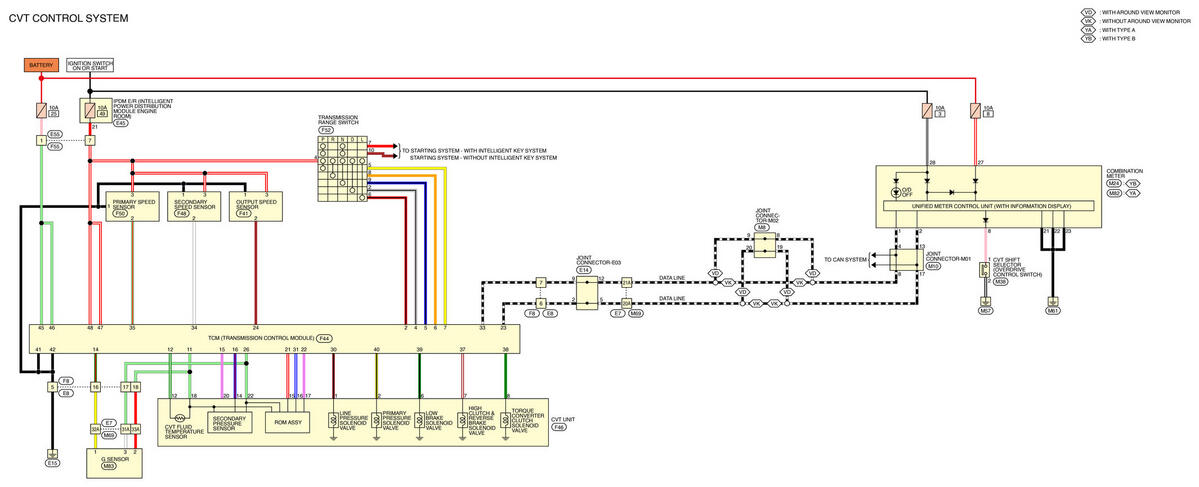

Fig 3: CVT CONTROL SYSTEM

GNSW82788

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

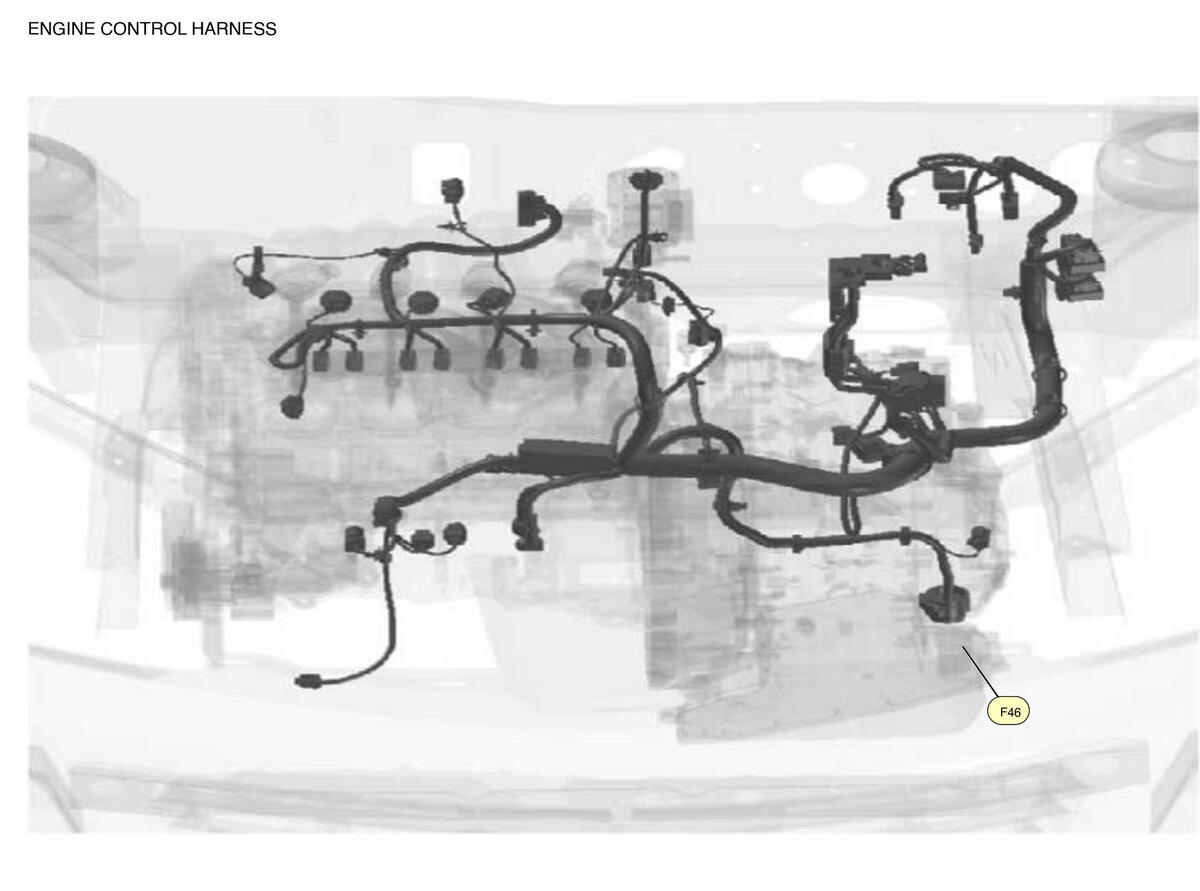

Fig 4: ENGINE CONTROL HARNESS

GNSW83164_LK_F046

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: RK22FGY
