Driver Air Bag Module

The driver air bag module is single stage and located in the steering wheel assembly. It operates with the SRS system in a frontal collision exceeding a specified level.

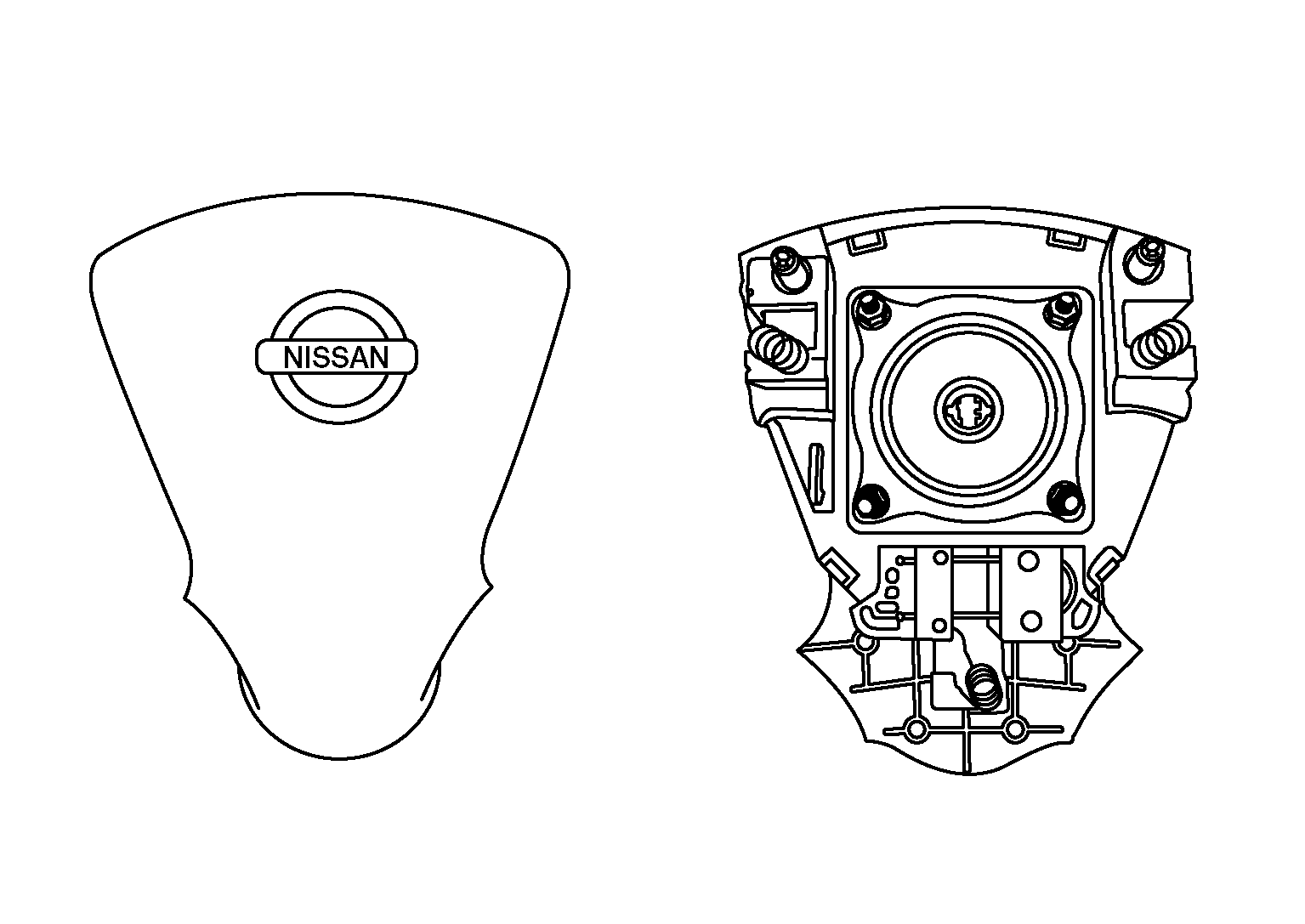

Fig 1: Driver Air Bag Module Is Single Stage
GNSAWHIA0827ZZ-827Courtesy of NISSAN NORTH AMERICA, INC.
