Exploded View

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Drum Brake

Fig 1: Rear Drum Brake Piping With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake tube	2.	Brake hose	3.	Lock plate
A.	To drum brake	B.	To brake pipe connector		Front

Disc Brake

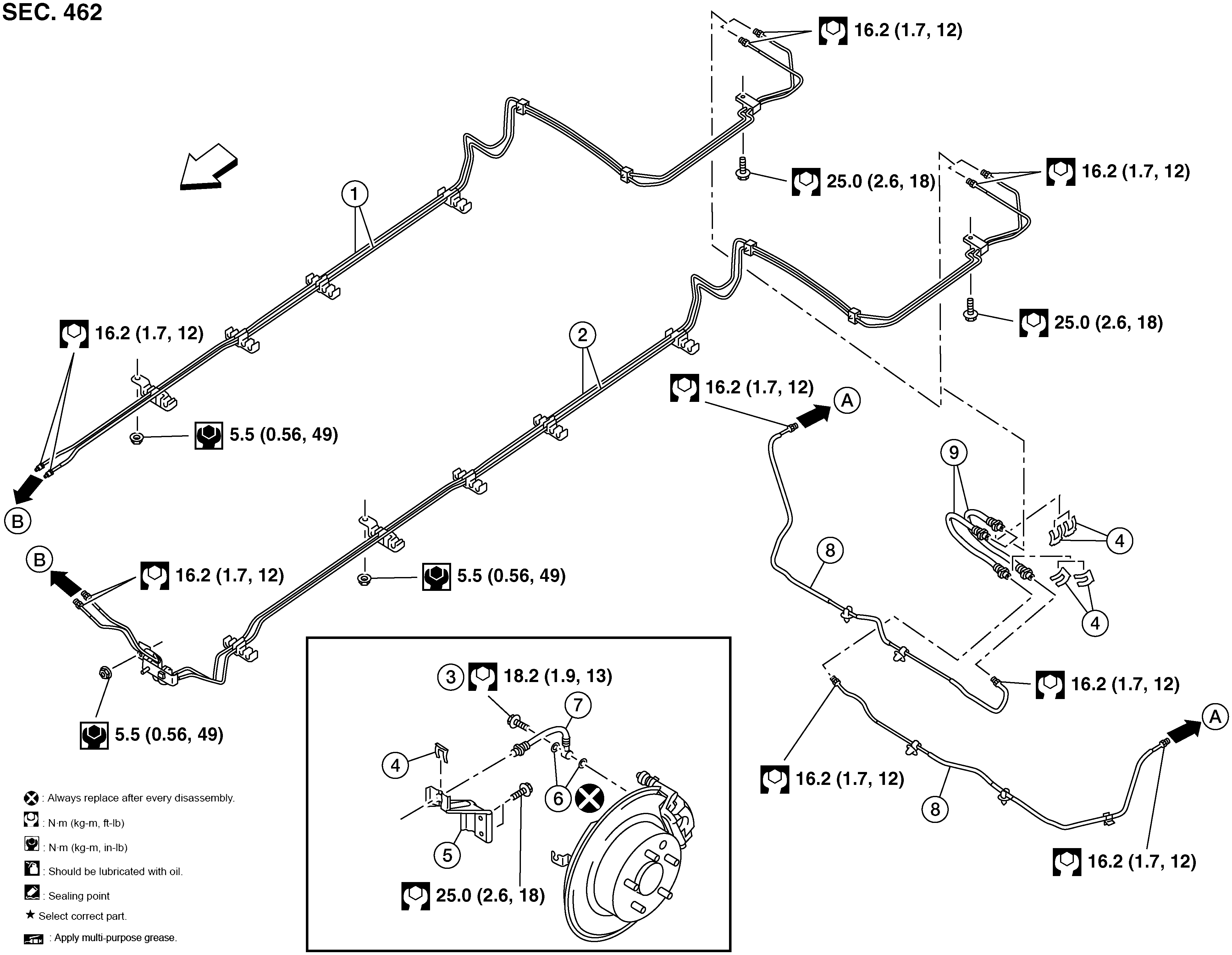

Fig 2: Rear Disc Brake Piping With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake tube (MR16DDT)	2.	Brake tube (EXCEPT MR16DDT)	3.	Union bolt
4.	Lock plate	5.	Brake hose bracket	6.	Copper sealing washer
7.	Rear brake hose	8.	Brake tube	9.	Brake hose
A.	To disc brake	B.	To brake pipe connector		Front
