Exploded View With Torque Specifications

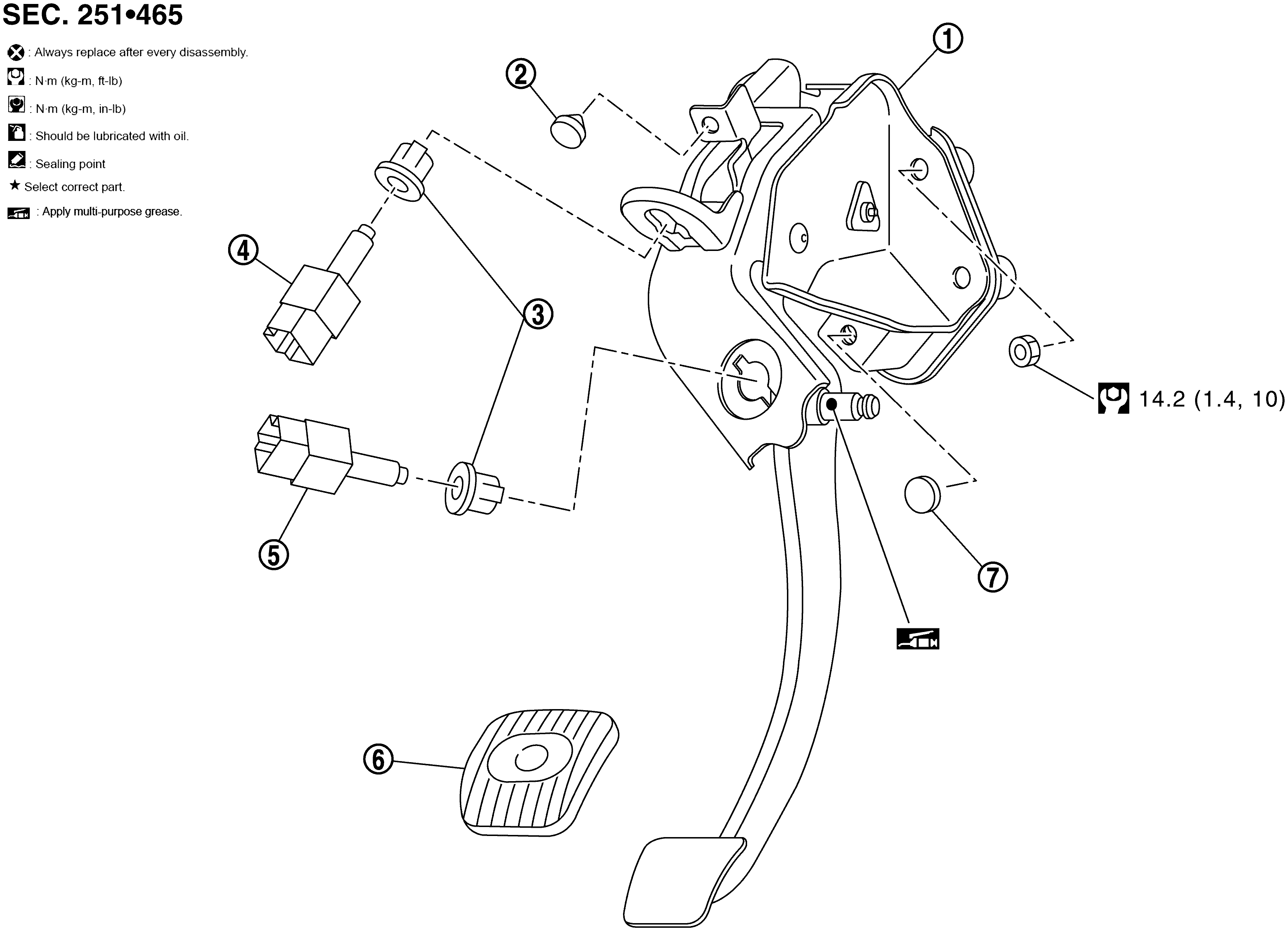

Fig 1: Exploded View Of Clutch Pedal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clutch pedal	2.	Stopper rubber	3.	Clip
4.	Clutch interlock switch	5.	Clutch pedal position switch	6.	Pedal pad
7.	Pedal stopper rubber
