Component Parts Location

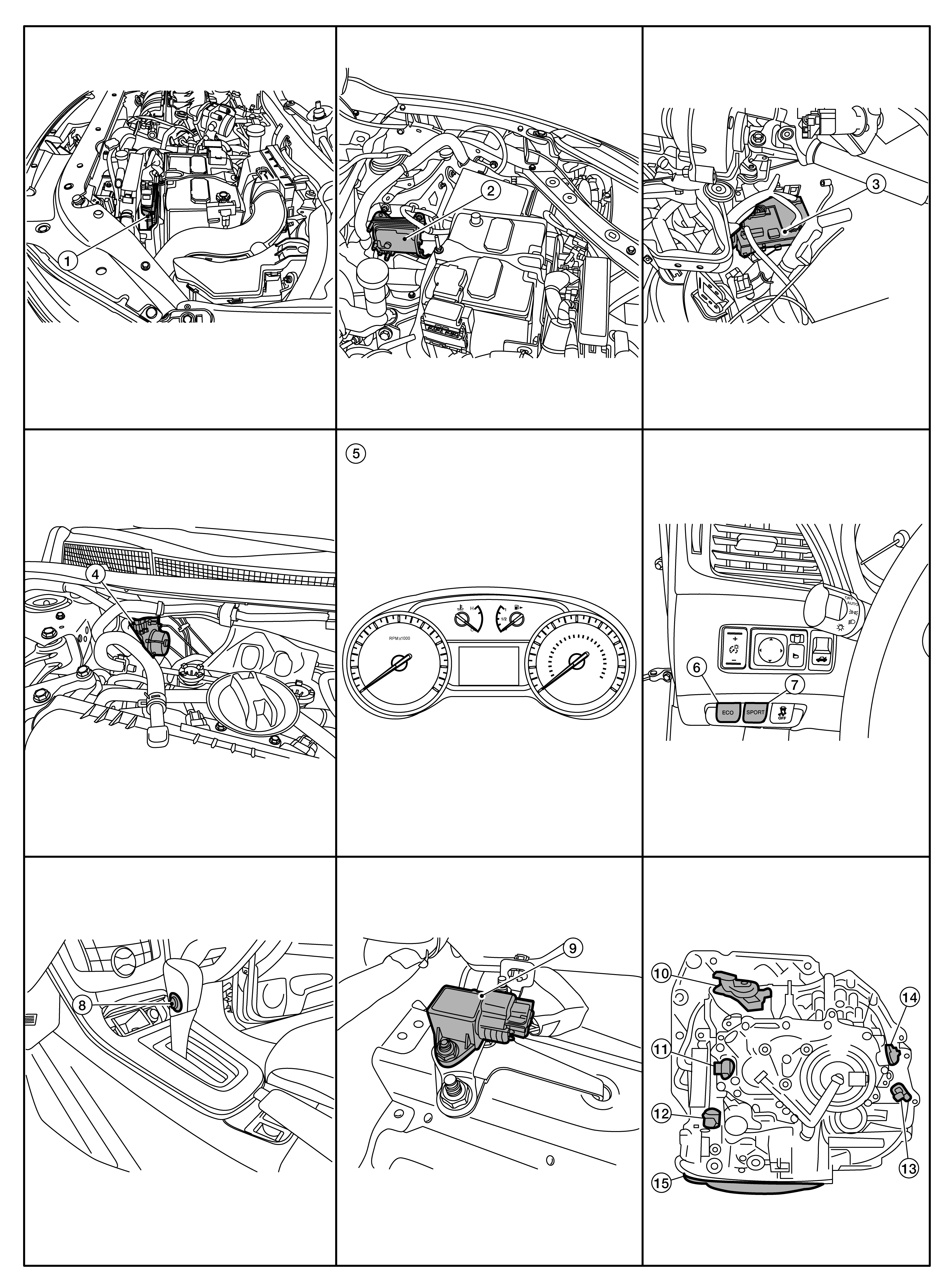

Fig 1: CVT Control System Component Location
G08989670WHITE-1WHITE-2WHITE-3WHITE-4WHITE-5WHITE-6WHITE-7WHITE-8WHITE-9WHITE-10WHITE-11WHITE-12WHITE-13WHITE-14WHITE-15Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
WHITE-1 ECM Mainly transmits the following signal to TCM via CAN communication.
  • Engine and CVT integrated control signal
    NOTE:

    General term for the communication (torque-down permission, torque-down request, etc.) exchanged between the ECM and TCM.

  • Engine speed signal
  • Accelerator pedal position signal
  • Closed throttle position signal
  • N idle instruction signal

Mainly receives the following signals from TCM via CAN communication.
  • N idle instruction signal
  • Malfunction indicator lamp (MIL) signal

Refer to COMPONENT PARTS LOCATION for detailed installation location.
WHITE-2 TCM TCM
WHITE-3 BCM Mainly transmits the following signal to TCM via CAN communication.
  • Stop lamp switch signal
  • Turn indicator signal

Refer to COMPONENT PARTS LOCATION (With intelligent key system) or COMPONENT PARTS LOCATION (Without intelligent key system) for detailed installation location.
WHITE-4 ABS actuator and electric unit (control unit) Mainly transmits the following signal to TCM via CAN communication.
  • Vehicle speed signal (ABS)
  • ABS operation signal
  • TCS operation signal
  • VDC operation signal
  • ABS malfunction signal

Refer to COMPONENT PARTS LOCATION (Without ICC) or COMPONENT PARTS LOCATION (With ICC) for detailed installation location.
WHITE-5 Combination meter Mainly transmits the following signal to TCM via CAN communication.
  • Overdrive control switch signal

Mainly receives the following signals from TCM via CAN communication.
  • Shift position indicator signal
  • OD OFF indicator lamp signal

Refer to COMPONENT PARTS LOCATION (TYPE A) or COMPONENT PARTS LOCATION (TYPE B) for detailed installation location.
NOTE:

To identify vehicle type, refer to INFORMATION .

WHITE-6 ECO mode switch ECO MODE SWITCH
WHITE-7 SPORT mode switch SPORT MODE SWITCH
WHITE-8 Overdrive control switch OVERDRIVE CONTROL SWITCH
WHITE-9 G sensor G SENSOR
WHITE-10 Transmission range switch TRANSMISSION RANGE SWITCH
WHITE-11 Primary speed sensor PRIMARY SPEED SENSOR
WHITE-12 CVT unit connector -
WHITE-13 Output speed sensor OUTPUT SPEED SENSOR
WHITE-14 Secondary speed sensor SECONDARY SPEED SENSOR
WHITE-15 Control valve ROM assembly* ROM ASSEMBLY
CVT fluid temperature sensor* CVT FLUID TEMPERATURE SENSOR
Secondary pressure sensor* SECONDARY PRESSURE SENSOR
Primary pressure solenoid valve* PRIMARY PRESSURE SOLENOID VALVE
Low brake solenoid valve* LOW BRAKE SOLENOID VALVE
High clutch & reverse brake solenoid valve* HIGH CLUTCH & REVERSE BRAKE SOLENOID VALVE
Torque converter clutch solenoid valve* TORQUE CONVERTER CLUTCH SOLENOID VALVE
Line pressure solenoid valve* LINE PRESSURE SOLENOID VALVE

*: These components are included in control valve assembly.
