Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name		Description

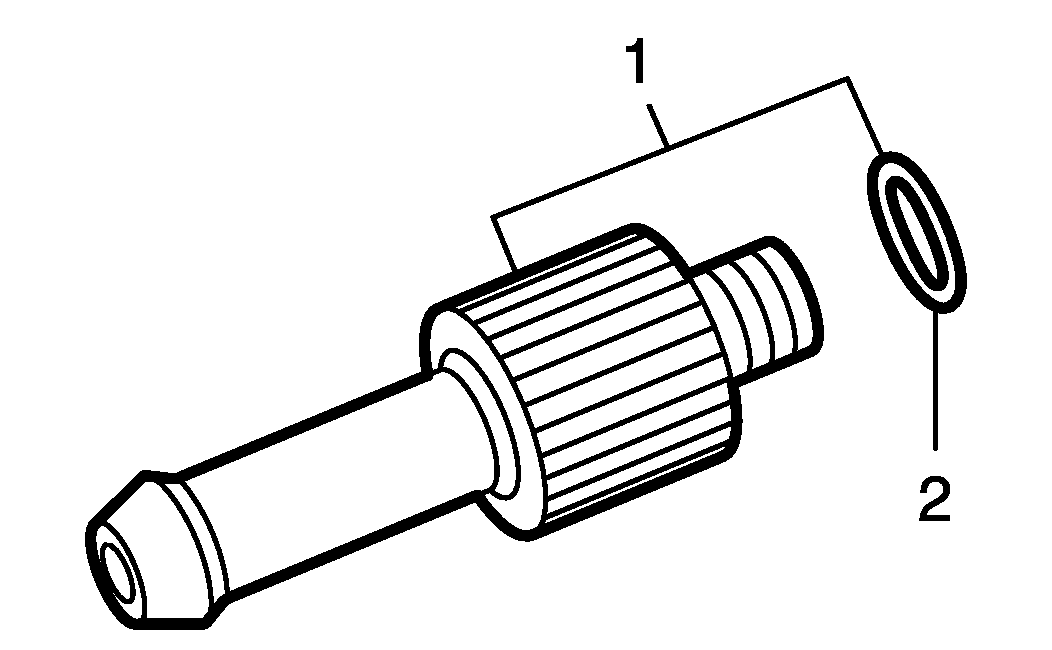

KV311039S0 (-) Charging pipe set KV31103920* (-) O-ring	Courtesy of NISSAN NORTH AMERICA, INC.	CVT fluid changing and adjustment
KV38107900 (-) Differential side oil seal protector	Courtesy of NISSAN NORTH AMERICA, INC.	Installing drive shaft a: 32 mm (1.26 in) dia.

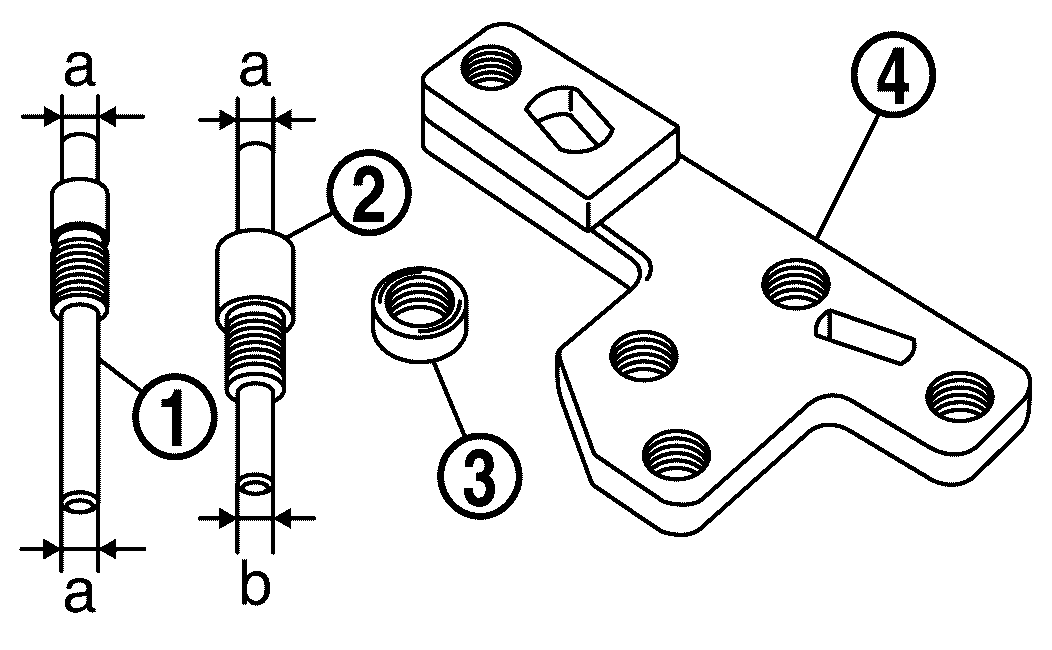

KV381099S0 (-) Unified transmission range switch adjuster	Courtesy of NISSAN NORTH AMERICA, INC.	Installing transmission range switch Pin "1" a: 5 mm (0.20 in) dia.  Pin "2" a: 5 mm (0.20 in) dia.  b: 4 mm (0.16 in) dia.  Spacer nut Base plate

*: The O-ring as a unit part is set as a SST.
