Removal And Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal.
CAUTION:
- When replacing an engine or transaxle you must make sure any dowels are installed correctly during re-assembly
- The transaxle assembly must not interfere with the wire harnesses and clutch tube.
- Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive train components.
- When installing transaxle assembly, do not bring input shaft into contact with clutch cover.
- Tapping work for tapping bolts is not applied to new transaxle case. Do not perform tapping by other than screwing tapping bolts because tapping is formed by screwing tapping bolts into transaxle case.

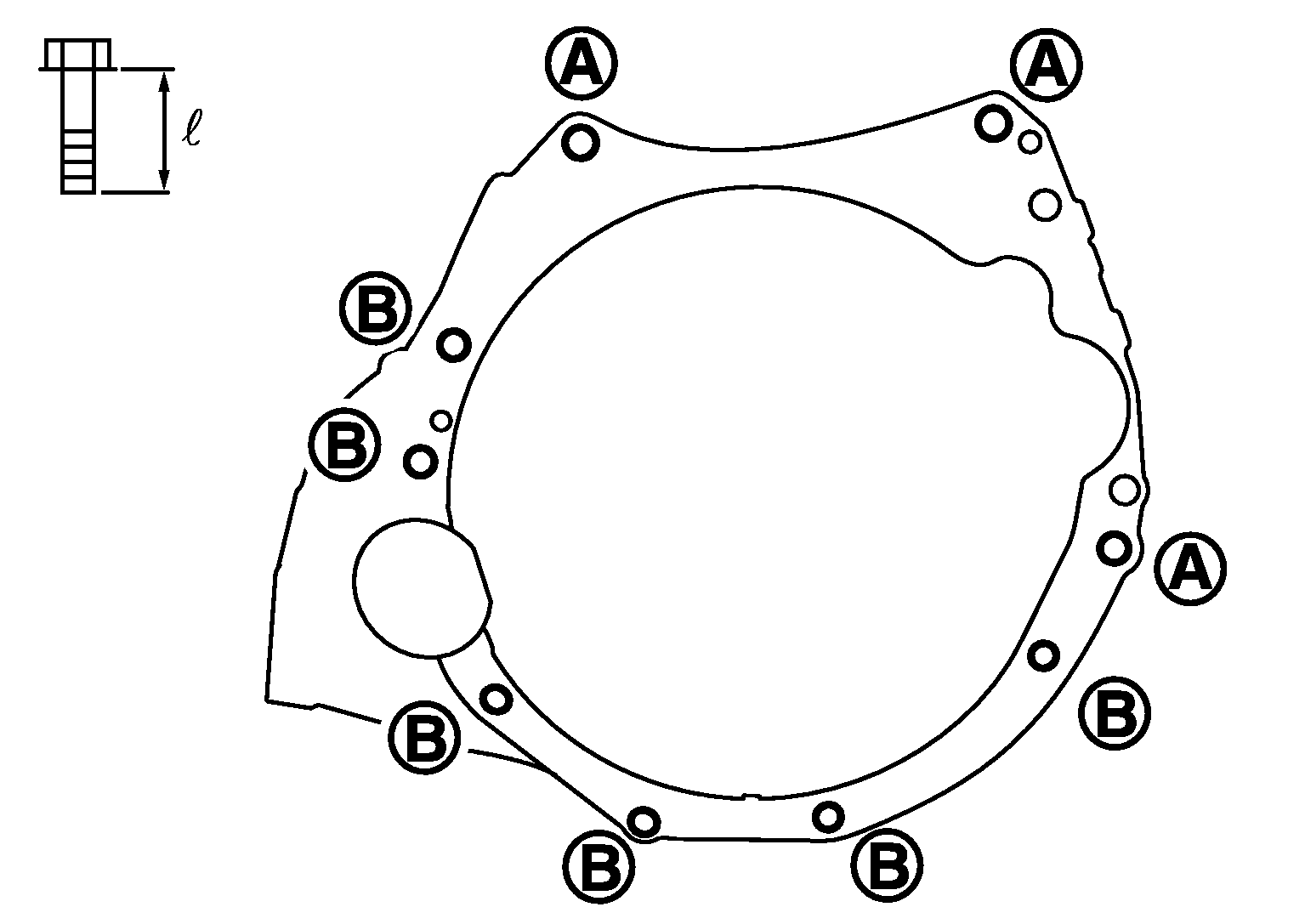

Tighten transaxle assembly mounting bolts to the specified torque. As shown viewing from the engine.
| Bolt symbol | (A) | (B) |
|---|---|---|
| Insertion direction | Transaxle to engine | Engine to transaxle |
| Quantity | 3 | 6 |
| Bolt length " |
60 (2.36) | 50 (1.97) |
| Tightening torque N•m (kg-m, ft-lb) |
62.0 (6.3, 46) | |
