Reverse Gear Noise Prevention Function (Synchronizing Method)

WARNING: This page is about a different variant/trim than selected.

Reverse gear assembly consists of reverse input gear, return spring, reverse baulk ring, and reverse output gear. When the shifter lever is moved to the reverse position, the construction allows smooth shift operation by stopping the reverse idler shaft rotation by frictional force of synchronizer.

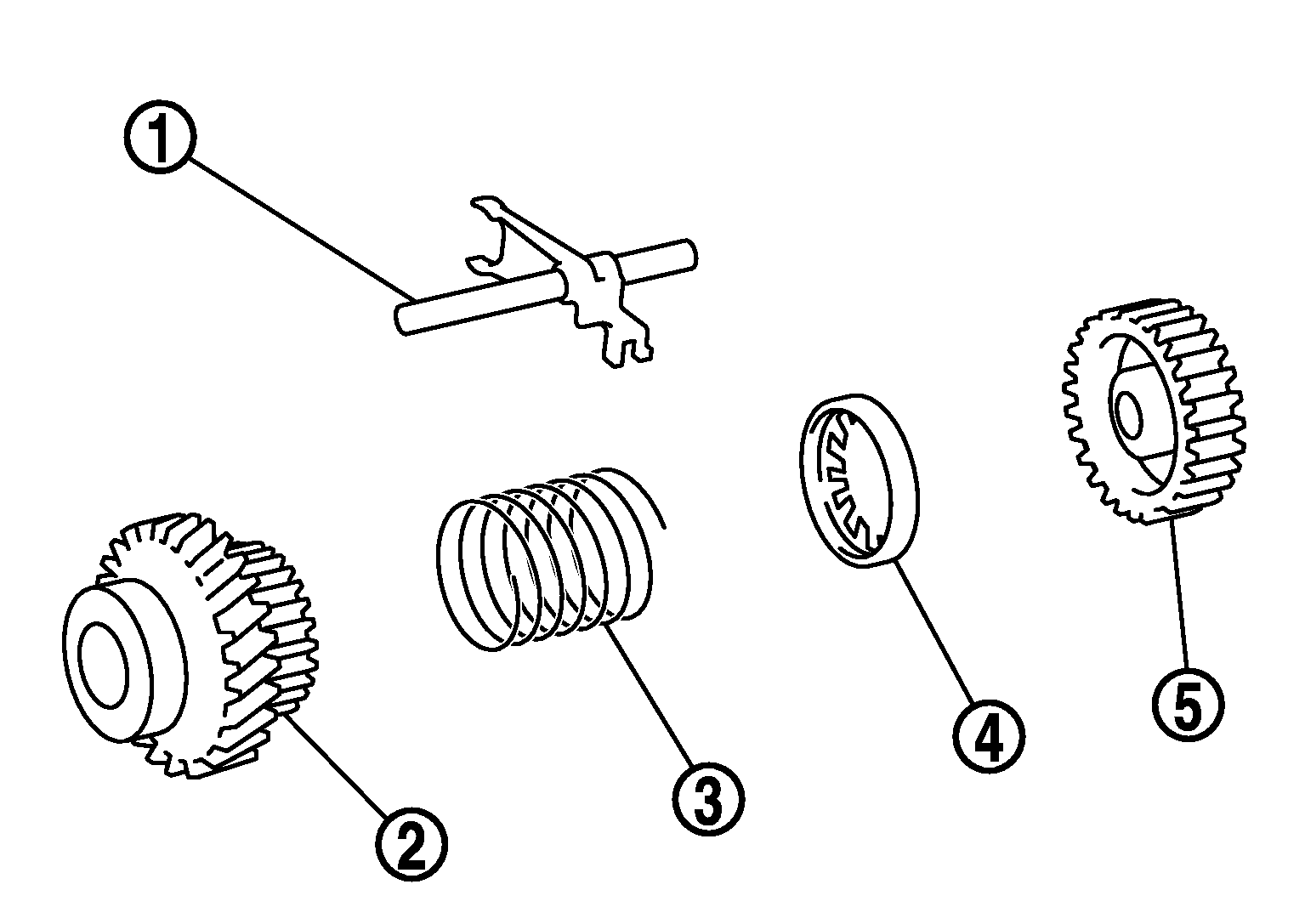

Fig 1: Gear Assembly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	: Reverse fork rod
2.	: Reverse output gear
3.	: Return spring
4.	: Reverse baulk ring
5.	: Reverse input gear
