Component Location
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

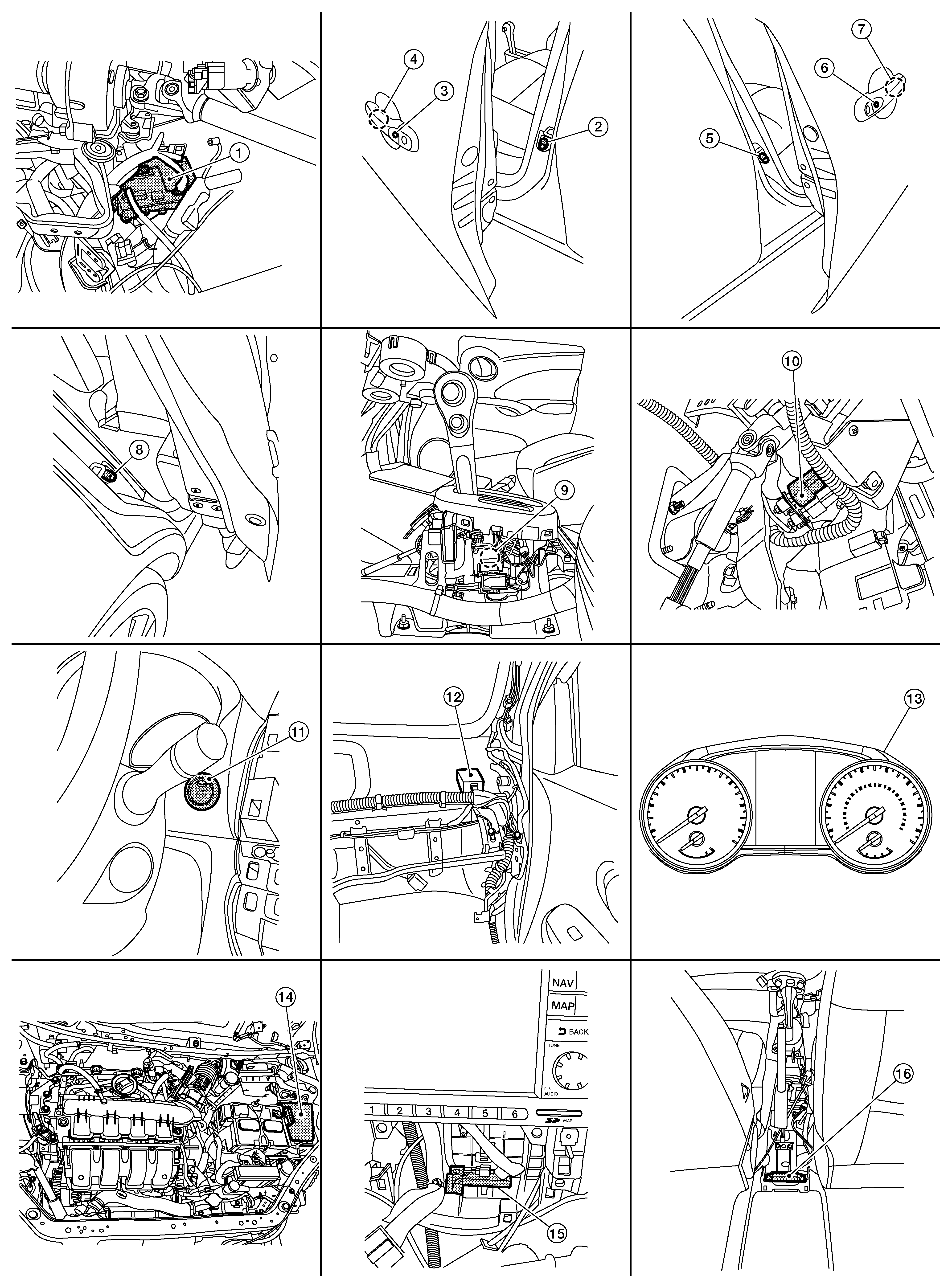

| 1. | BCM (view with instrument panel removed) | 2. | Front door switch LH | 3. | Door request switch LH |
| 4. | Outside key antenna (driver side) | 5. | Front door switch RH | 6. | Door request switch RH |
| 7. | Outside key antenna (passenger side) | 8. | Rear door switch RH (rear door switch LH similar) | 9. | CVT shift selector (park position switch) (if equipped) (view with center console removed) |
| 10. | Stop lamp switch | 11. | Push-button ignition switch | 12. | Remote keyless entry receiver (view with instrument panel removed) |
| 13. | Combination meter | 14. | IPDM E/R | 15. | Inside key antenna (instrument center) |

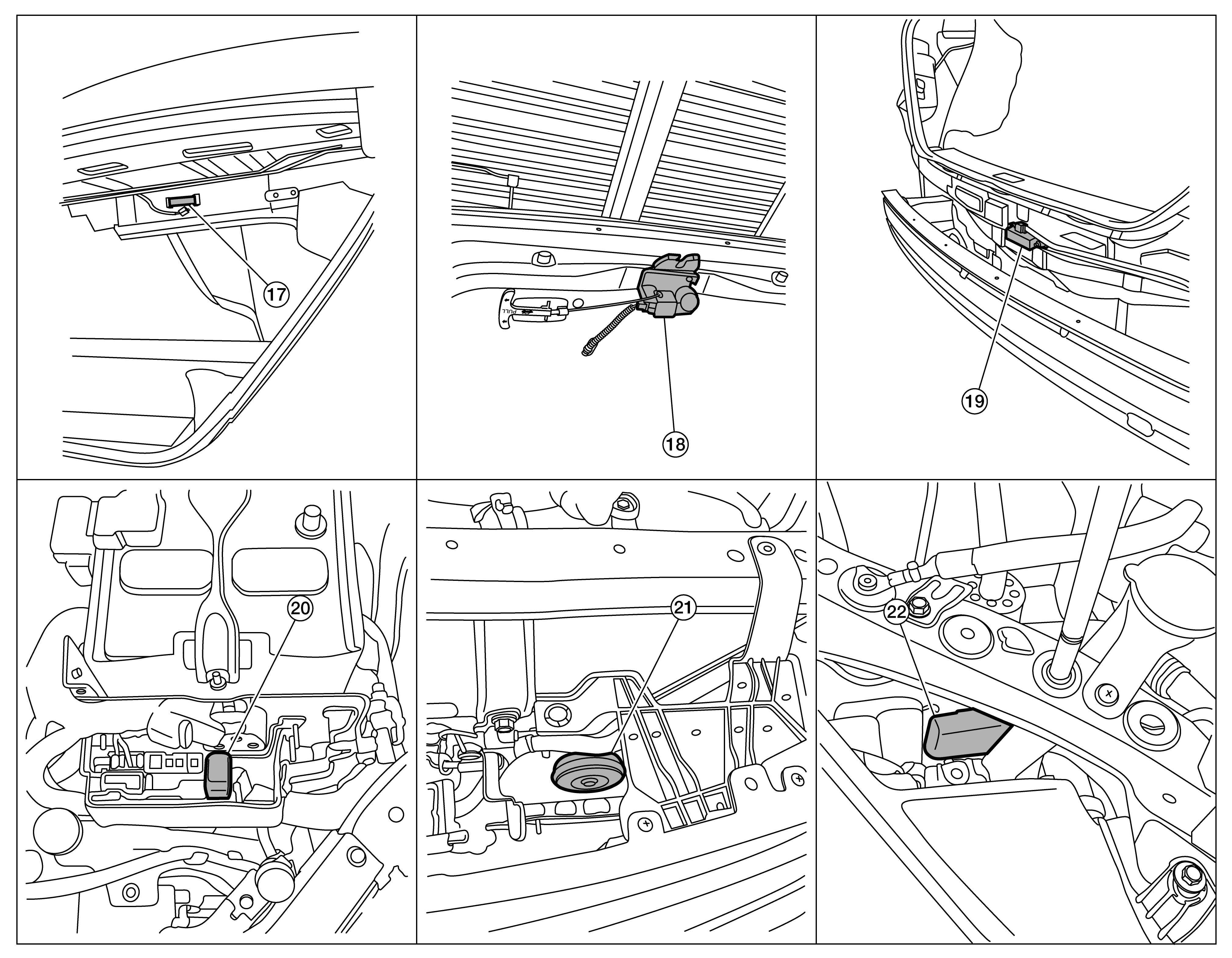

| 16. | Inside key antenna (console) (view with center console removed) | 17. | Inside key antenna (trunk room) | 18. | Trunk lid opener assembly |
| 19. | Outside key antenna (rear bumper) (view with rear bumper fascia removed) | 20. | Horn relay | 21. | Horn |
| 22. | Intelligent Key warning buzzer |
