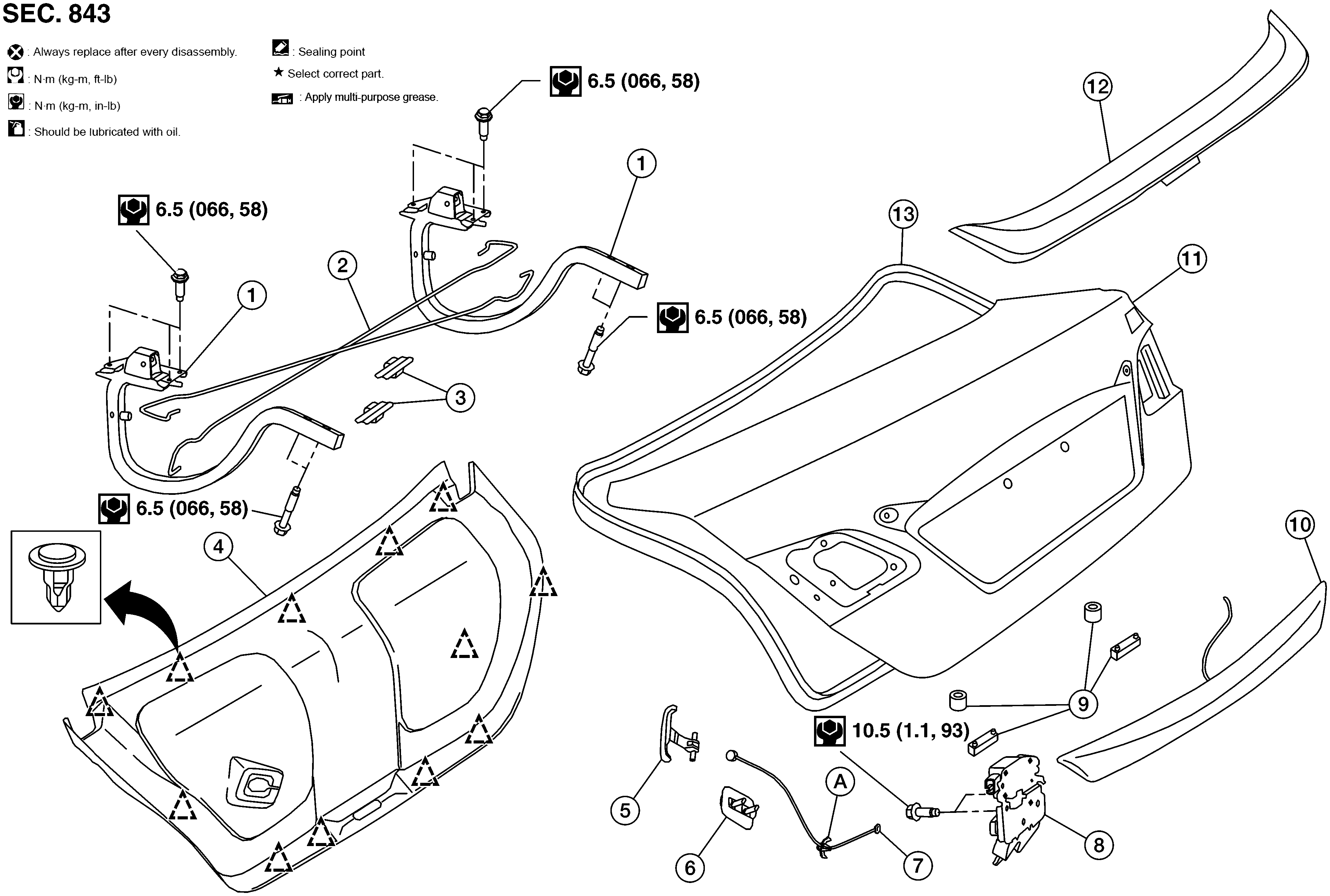

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Trunk lid hinge (LH/RH) | 2. | Torsion bar (LH/RH) | 3. | Torsion bar clips |
| 4. | Trunk lid finisher (if equipped) | 5. | Emergency release handle | 6. | Emergency release handle clip |
| 7. | Emergency release handle cable | 8. | Trunk lid lock | 9. | Trunk lid bumpers |
| 10. | License lamp finisher | 11. | Trunk lid | 12. | Rear spoiler (if equipped) |
| 13. | Weather-strip | A. | Clip | Clip |
