Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

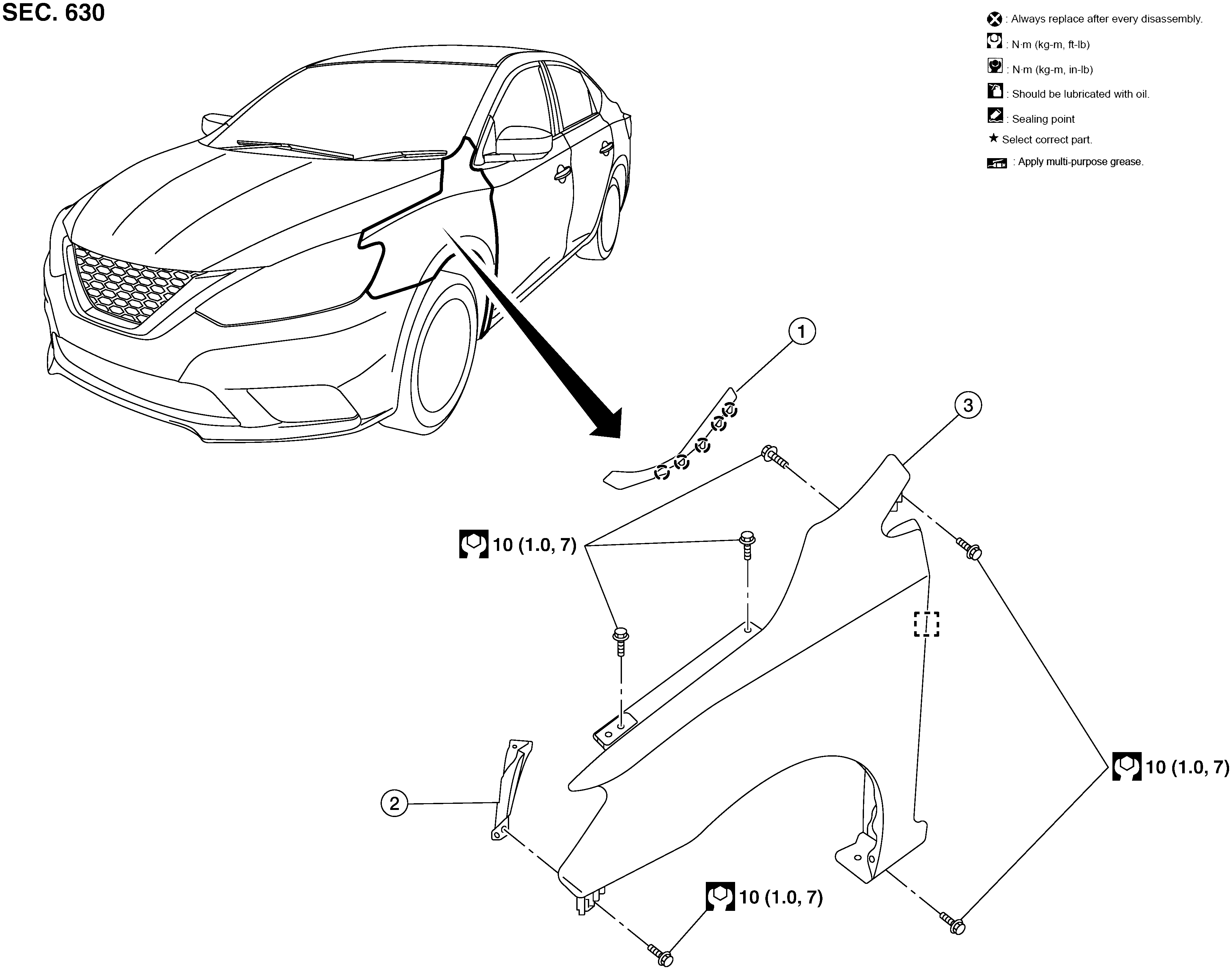

GNSAWKIA4018ZZ-018Courtesy of NISSAN NORTH AMERICA, INC.
1. Cowl top side cover 2. Front fender stay 3. Front fender
SHIKAKU-H Clip MARU-H Pawl
