Front Fender: Adjustment: Notes
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front combination lamp assembly | 2. | Fender | 3. | Front bumper fascia |
| 4. | Hood assembly | 5. | Body side outer | 6. | Front door |

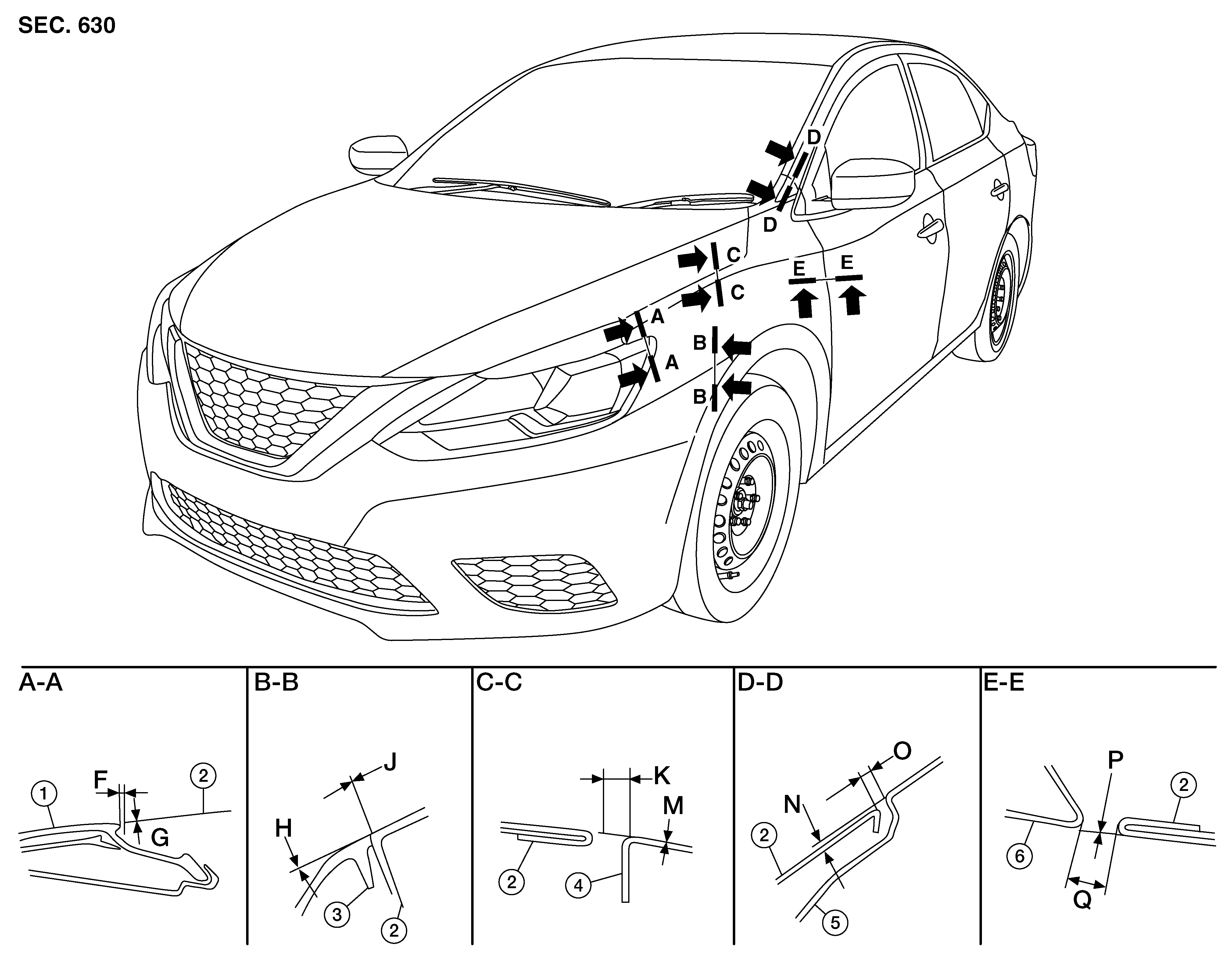

Check the clearance and the surface height between hood and each part by visual inspection and tactile feel.
If the clearance and the surface height are out of specification, adjust them according to the adjustment procedures.
Unit: mm (in)
| Section | Item | Measurement | Standard |
|---|---|---|---|
| A - A | F | Clearance | 1.5 +- 1.3 (0.06 +- 0.05) |
| G | Surface height | 0.7 +- 1.3 (0.03 +- 0.05) | |
| B - B | H | Surface height | 0.7 +- 1.0 (0.03 +- 0.04) |
| J | Clearance | 0.0 +- 1.0 (0.00 +- 0.04) | |
| C - C | K | Clearance | 3.7 +- 1.0 (0.15 +- 0.04) |
| M | Surface height | 0.0 +- 1.0 (0.00 +- 0.04) | |
| D - D | N | Surface height | 0.0 +- 1.0 (0.00 +- 0.04) |
| O | Clearance | 3.0 +- 1.0 (0.12 +- 0.04) | |
| E - E | P | Surface height | 0.0 +- 1.0 (0.0 +- 0.04) |
| Q | Clearance | 4.0 +- 1.0 (0.16 +- 0.04) |
