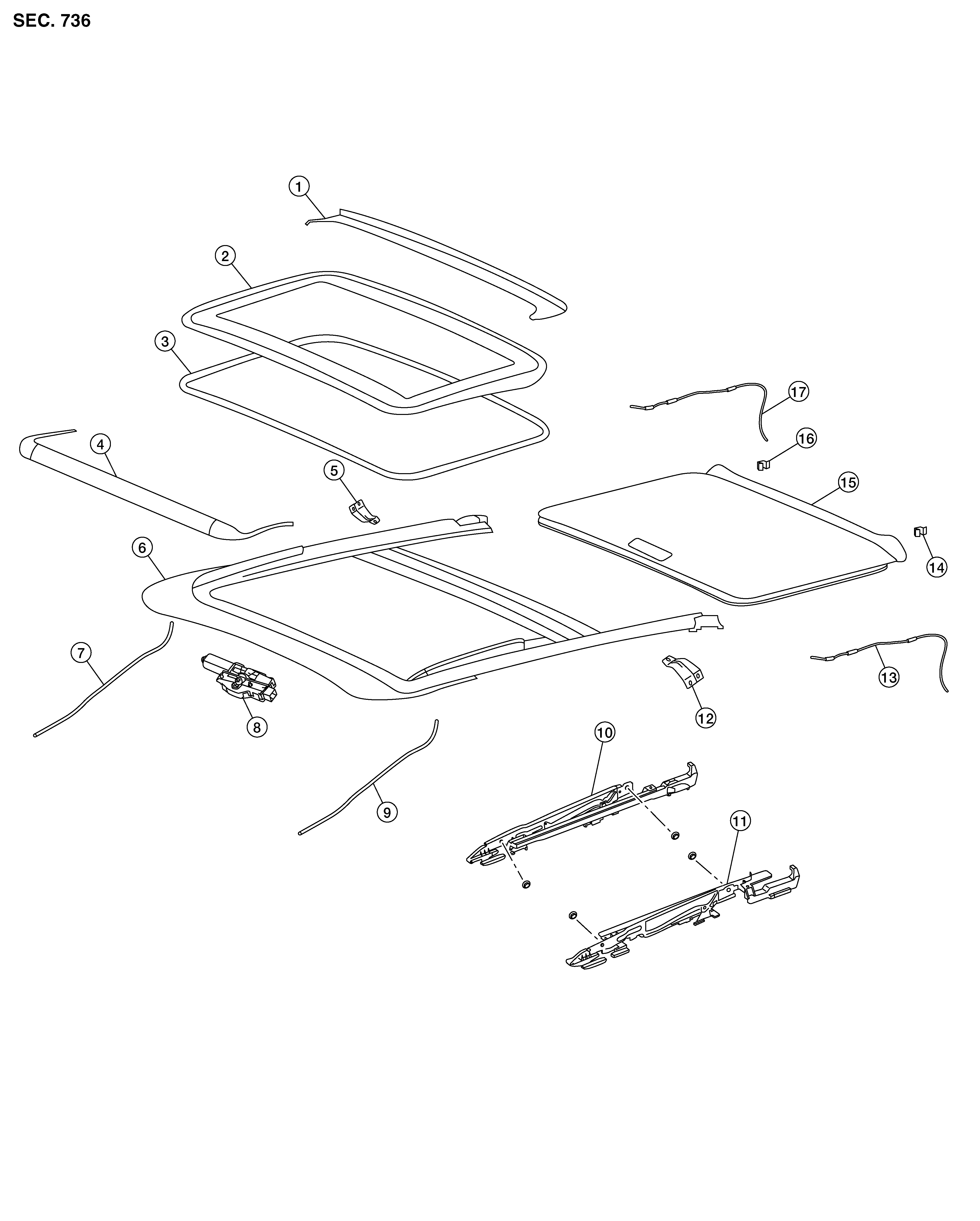

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Drain assembly | 2. | Glass lid | 3. | Weather-strip |
| 4. | Wind deflector | 5. | Side bracket (RH) | 6. | Moonroof rail assembly |
| 7. | Drain hose front (RH) | 8. | Moonroof motor assembly | 9. | Drain hose front (LH) |
| 10. | Moonroof guide (RH) | 11. | Moonroof guide (LH) | 12. | Side bracket (LH) |
| 13. | Drain hose rear (LH) | 14. | Sunshade stopper (LH) | 15. | Sunshade |
| 16. | Sunshade stopper (RH) | 17. | Drain hose rear (RH) |
