Exploded View With Torque Specifications

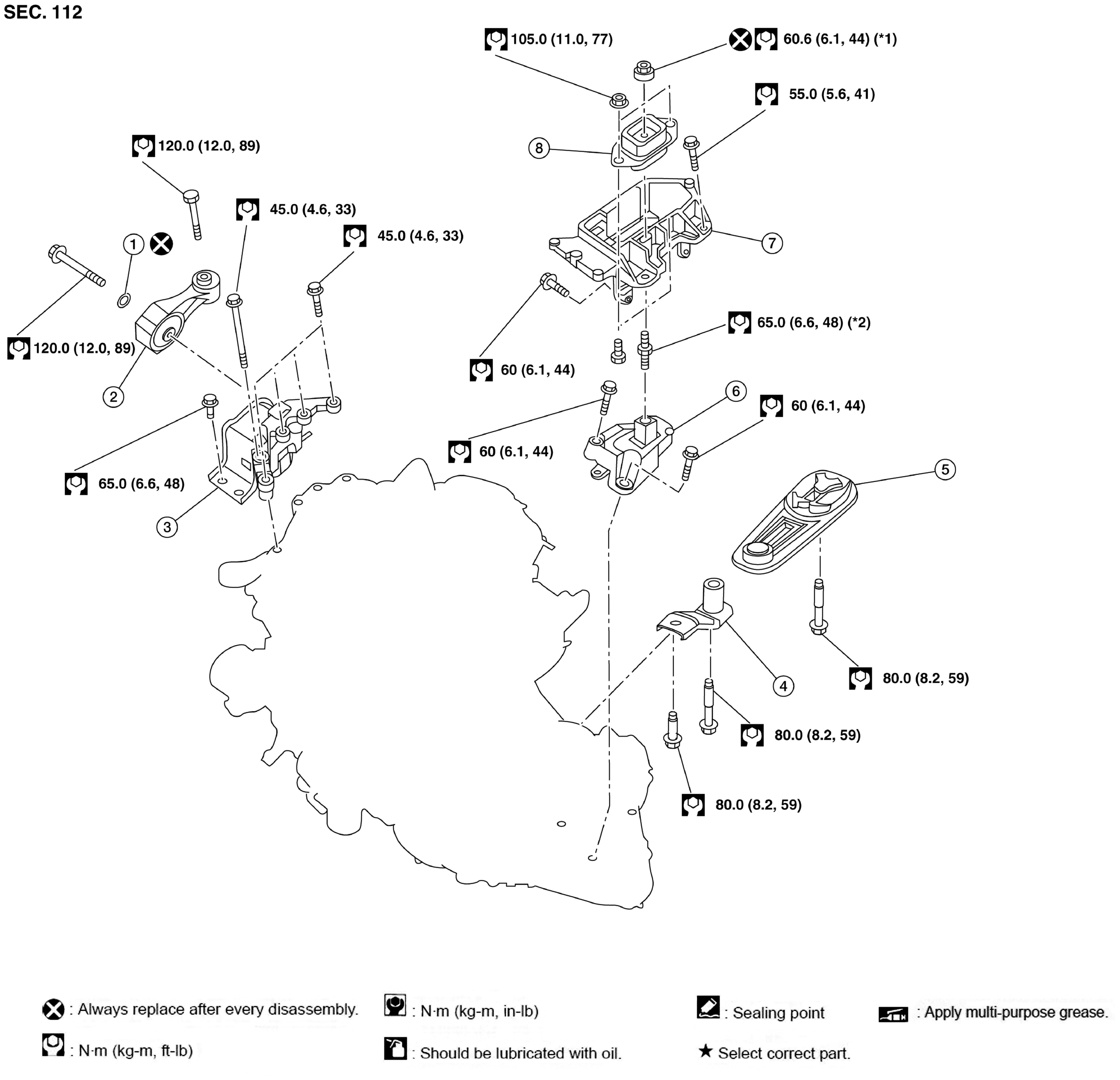

Fig 1: Exploded View Of Engine Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Washer	2.	Upper torque rod (RH) (if equipped)	3.	Engine mounting insulator (RH)
4.	Rear torque rod bracket	5.	Rear torque rod	6.	Engine mounting bracket (LH)
7.	Engine mounting frame support (LH)	8.	Engine mounting insulator (LH)

CAUTION:

Check that the stud bolt (* 2) is tight at the specified torque before tightening the nut (* 1) shown. [Stud bolt (* 2) may be loosened after loosening the nut (* 1)]
