Component Parts Location

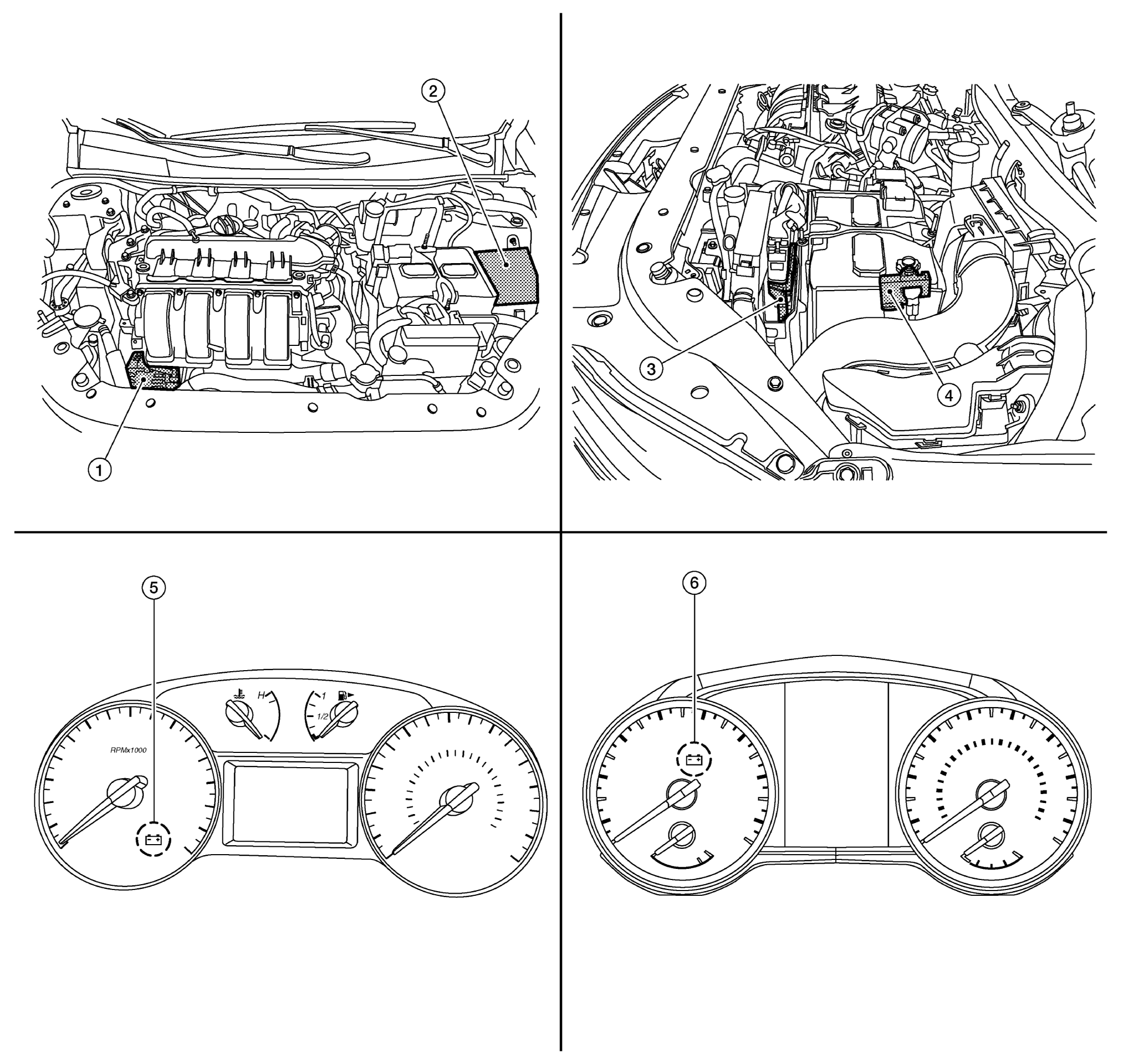

Fig 1: Charging System Components Location
GNSAWMIA1791GB-791Courtesy of NISSAN NORTH AMERICA, INC.
1. Generator 2. IPDM E/R (view with air inlet duct removed) 3. ECM
4. Battery current sensor 5. Combination meter (Type A) 6. Combination meter (Type B)
