Brake Control System: Wiring Diagram

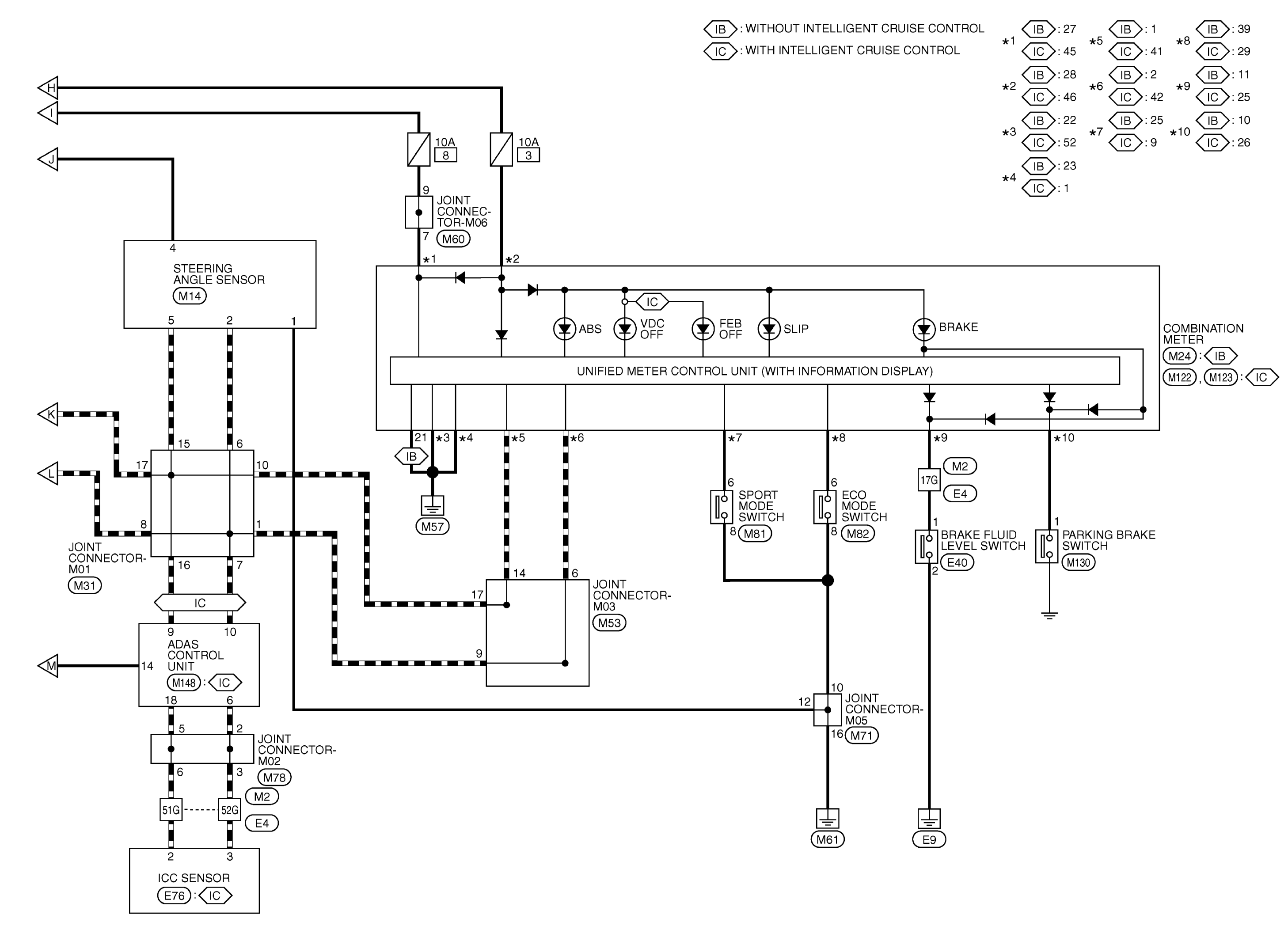

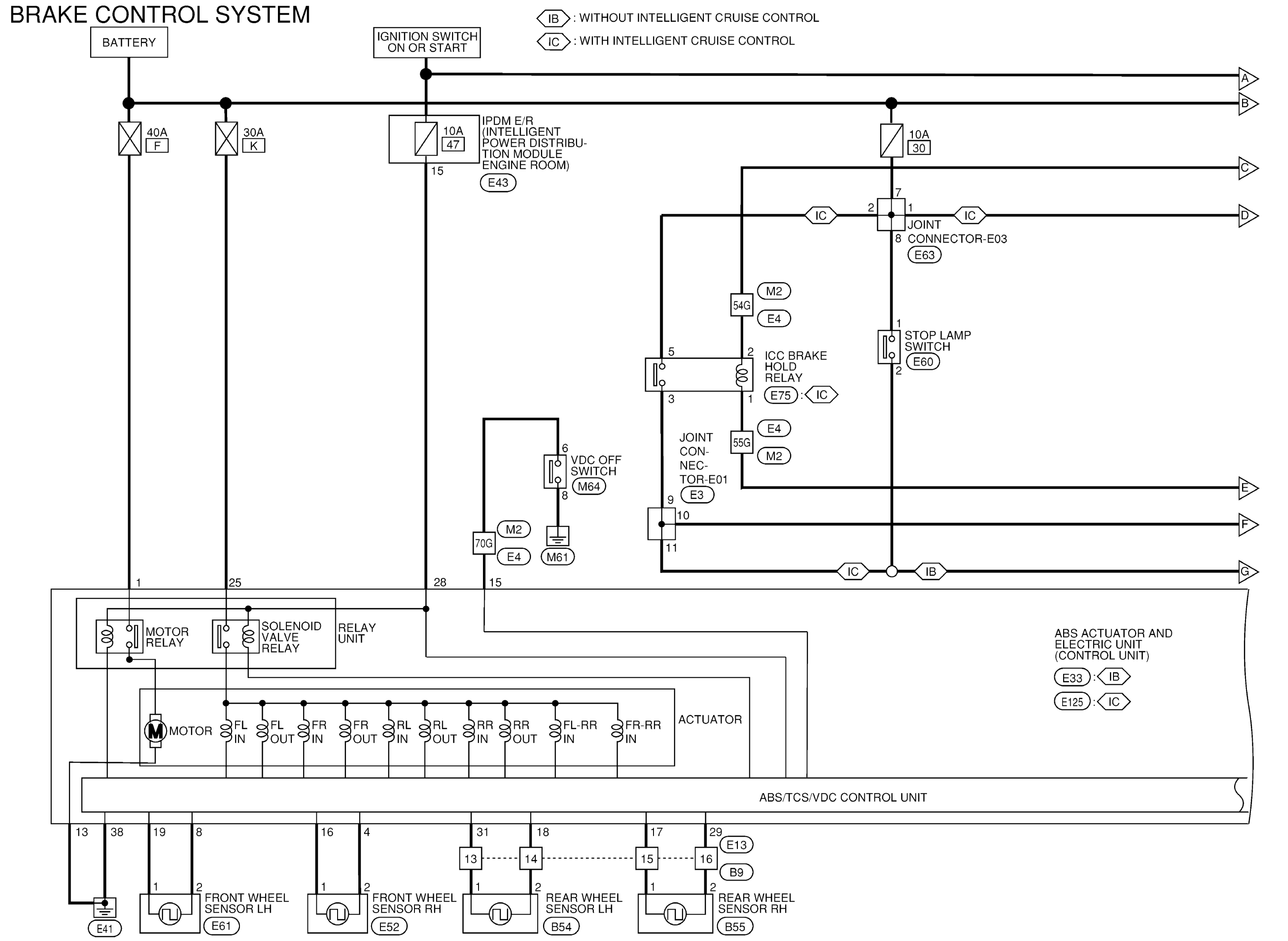

Fig 1: Brake Control System Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

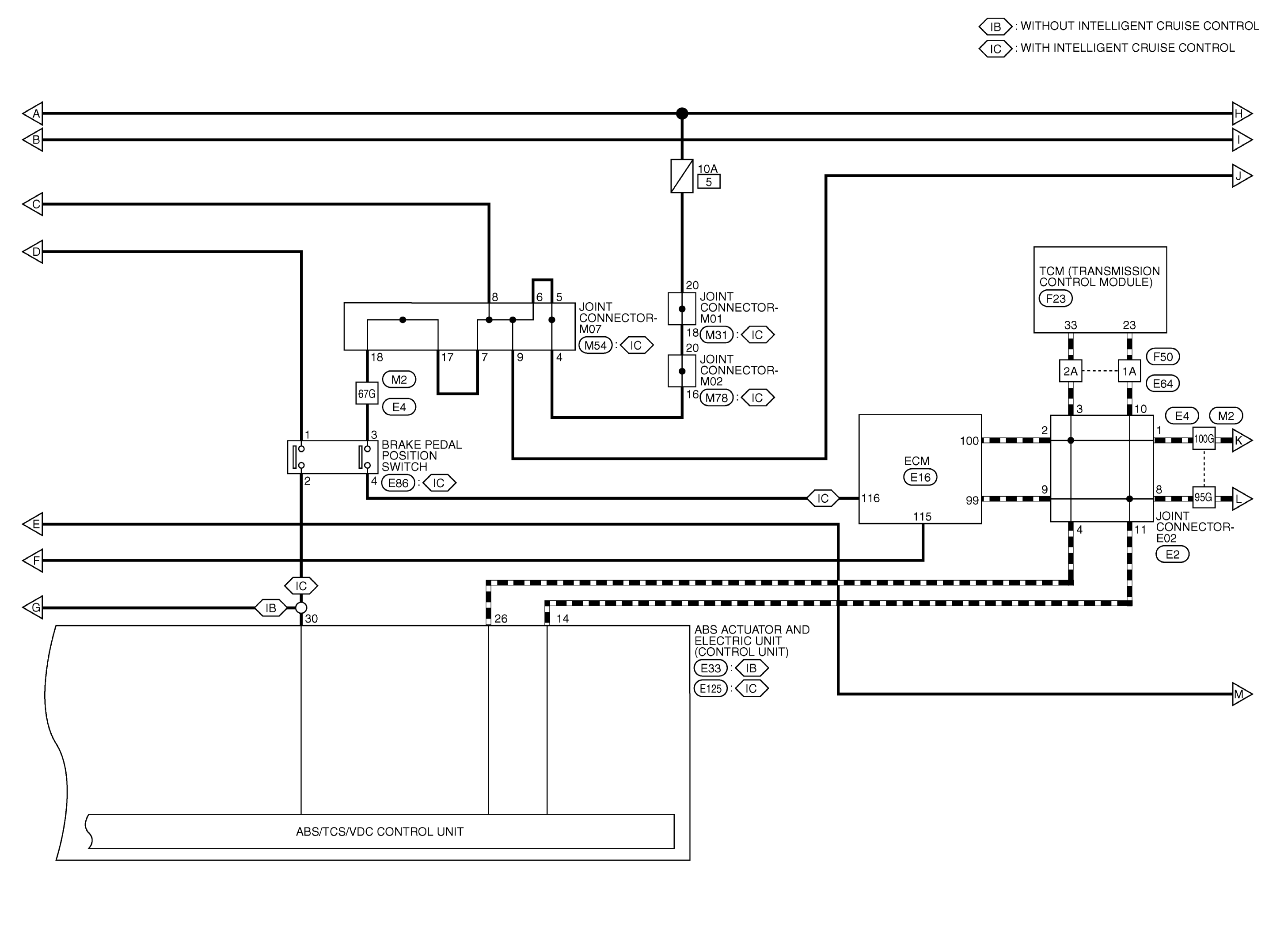

Fig 2: Brake Control System Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Brake Control System Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

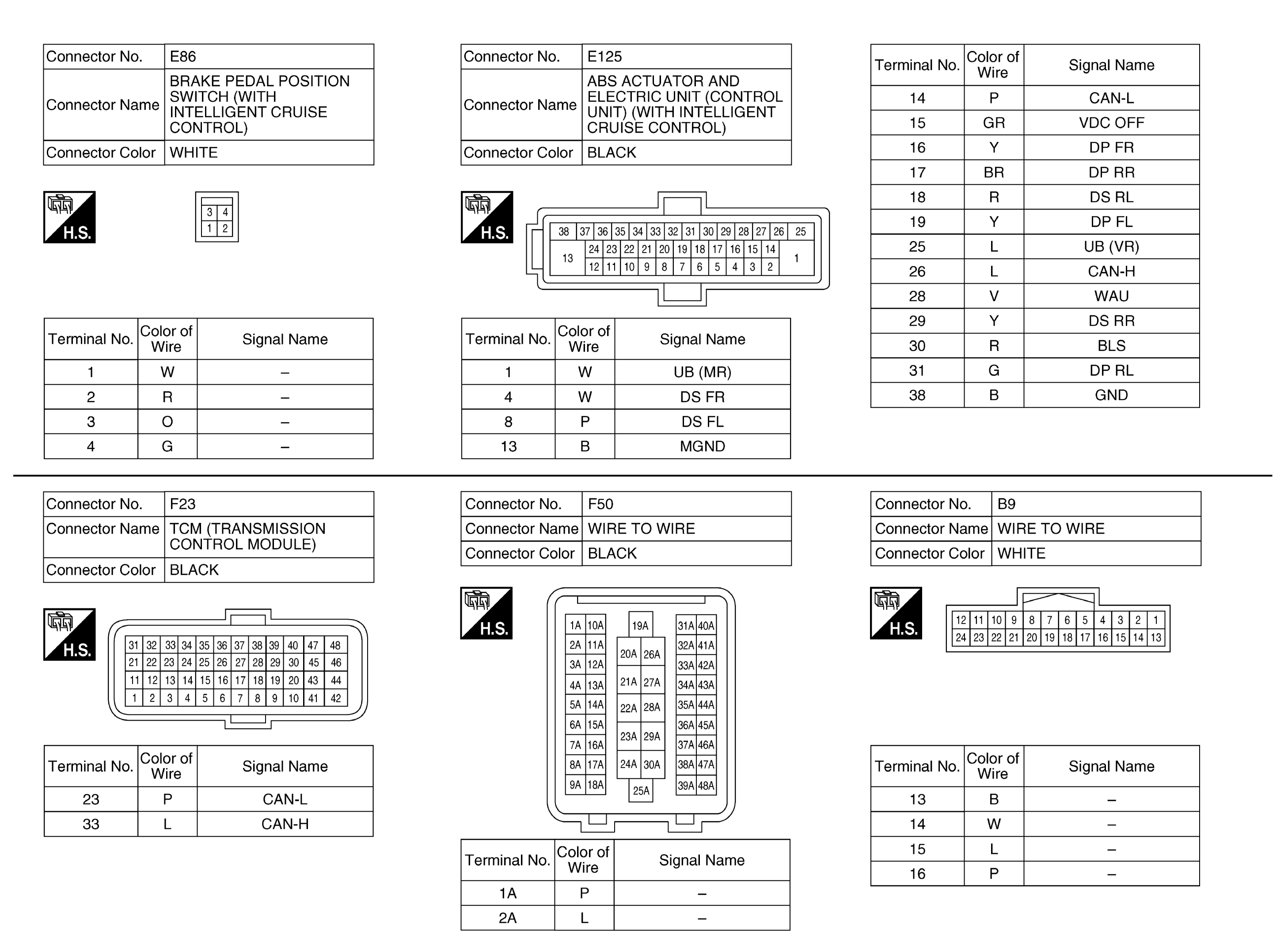

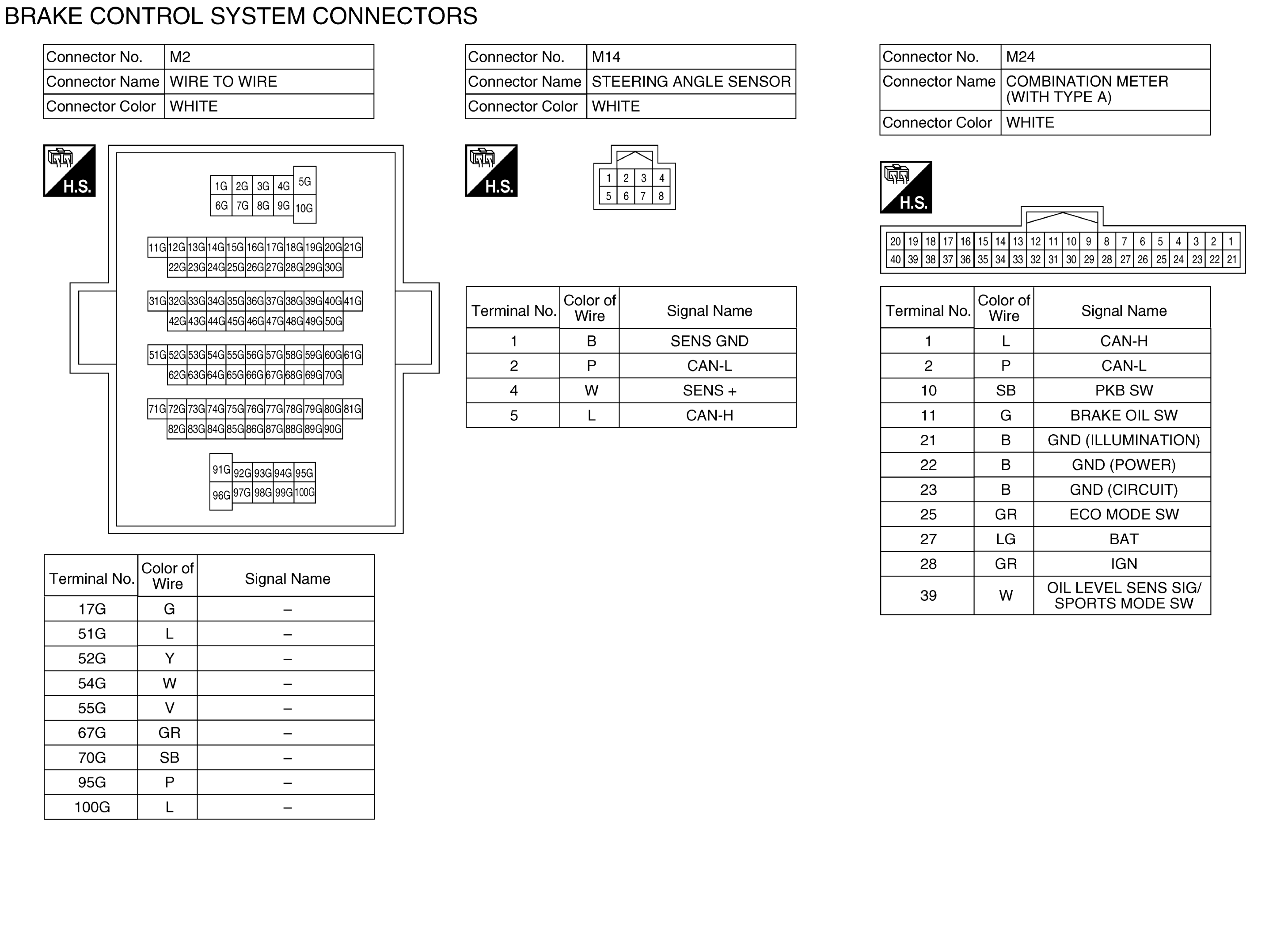

Fig 4: Brake Control System Connectors (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

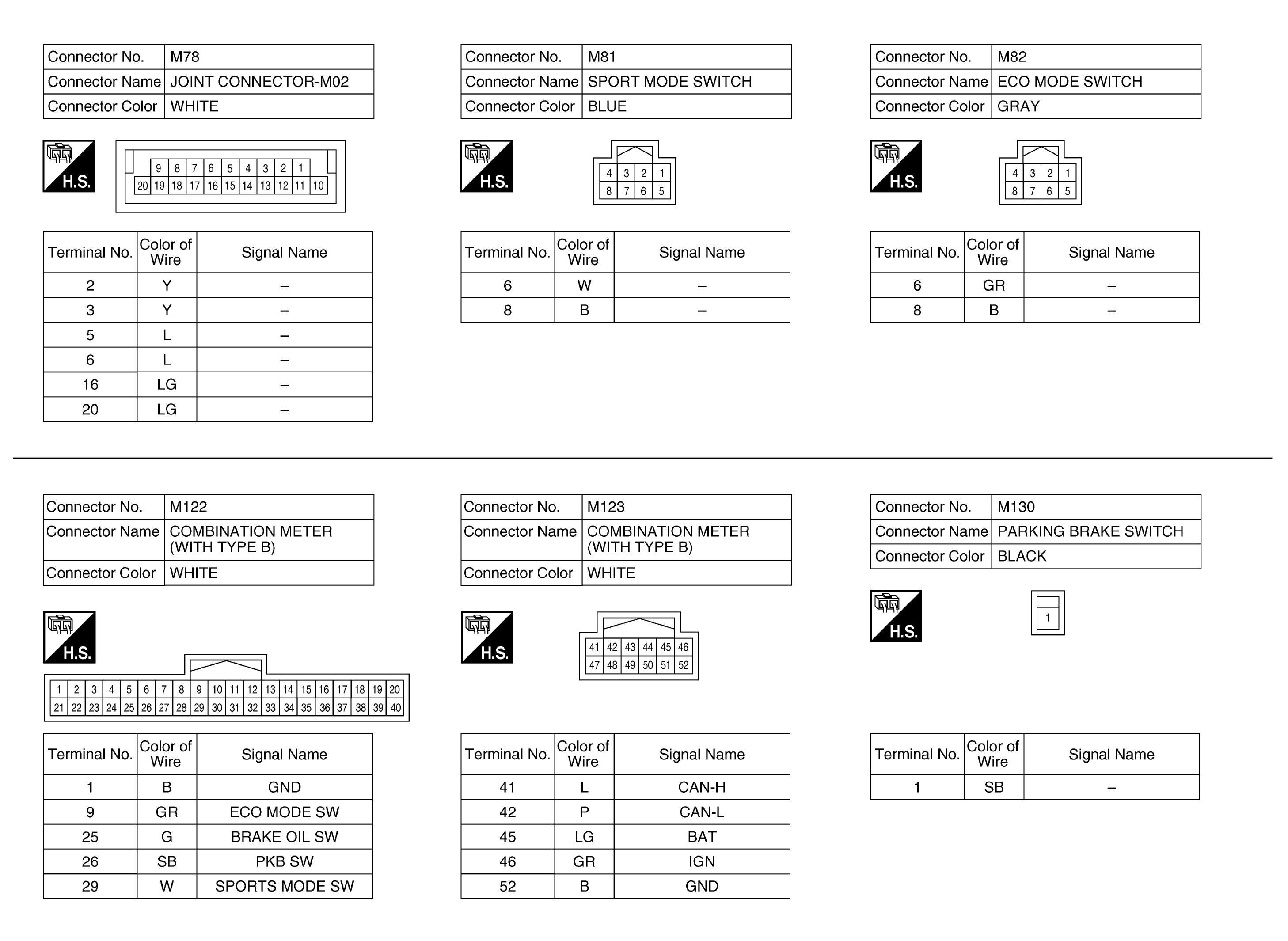

Fig 5: Brake Control System Connectors (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

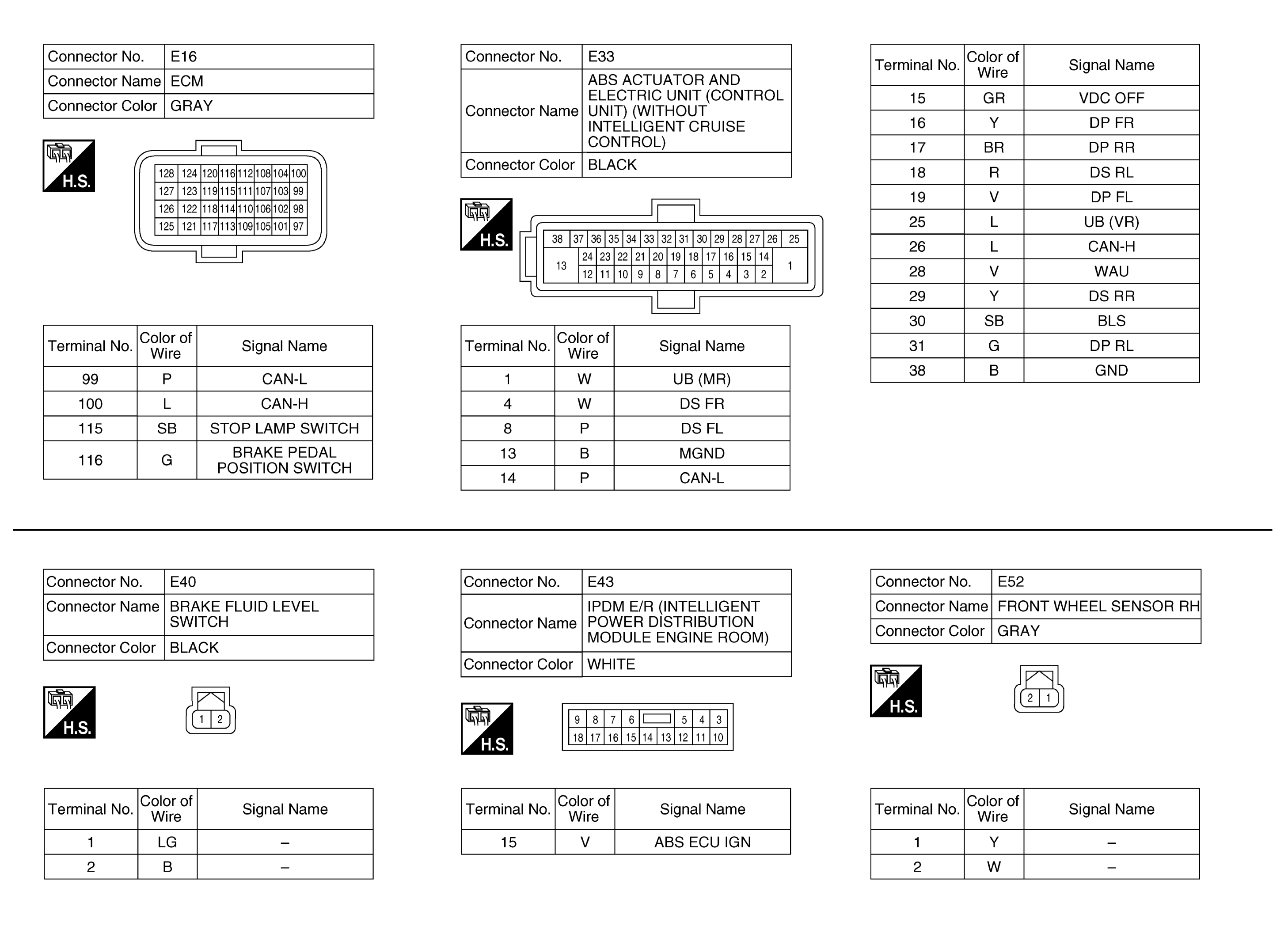

Fig 6: Brake Control System Connectors (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Brake Control System Connectors (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

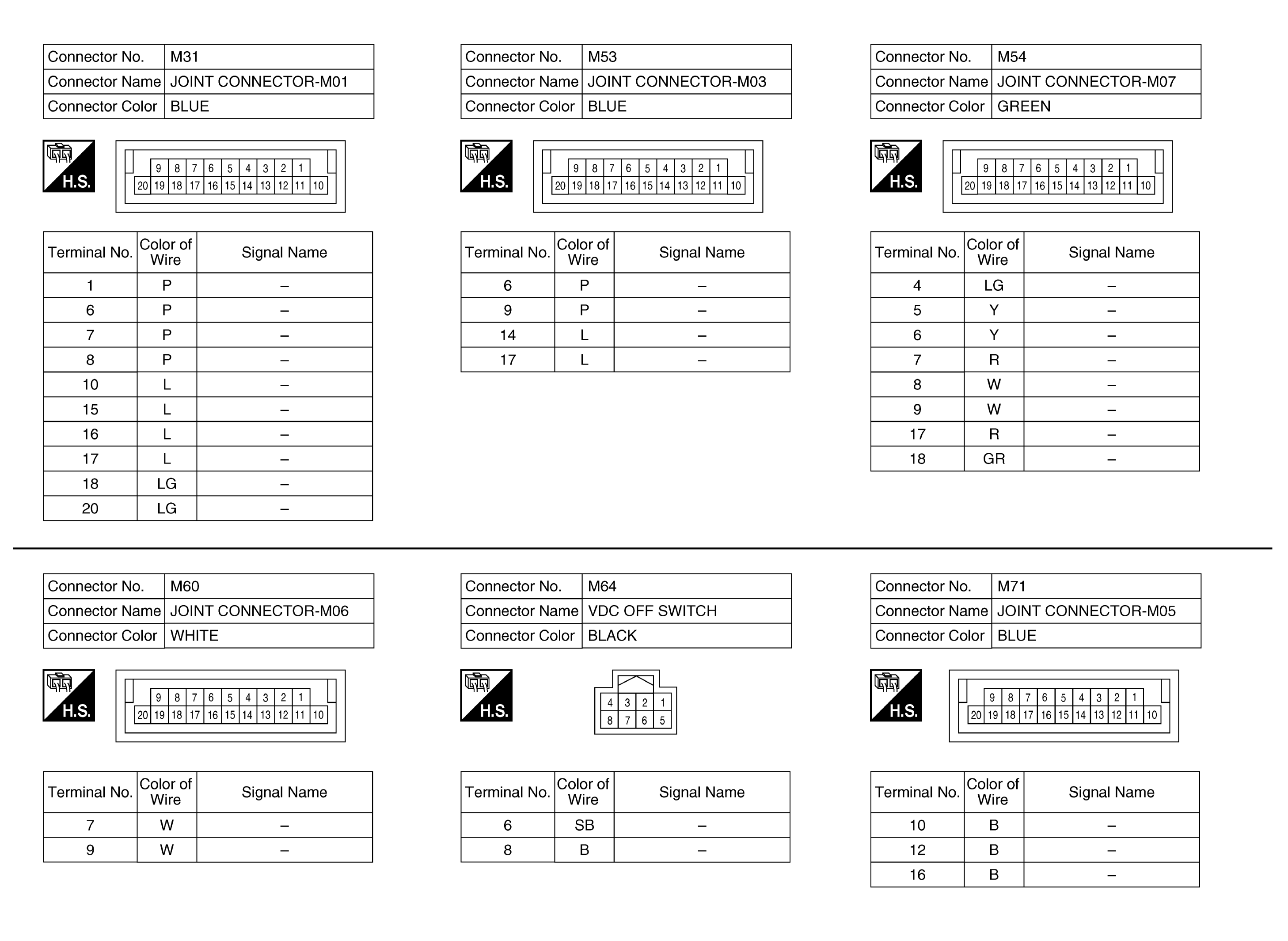

Fig 8: Brake Control System Connectors (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

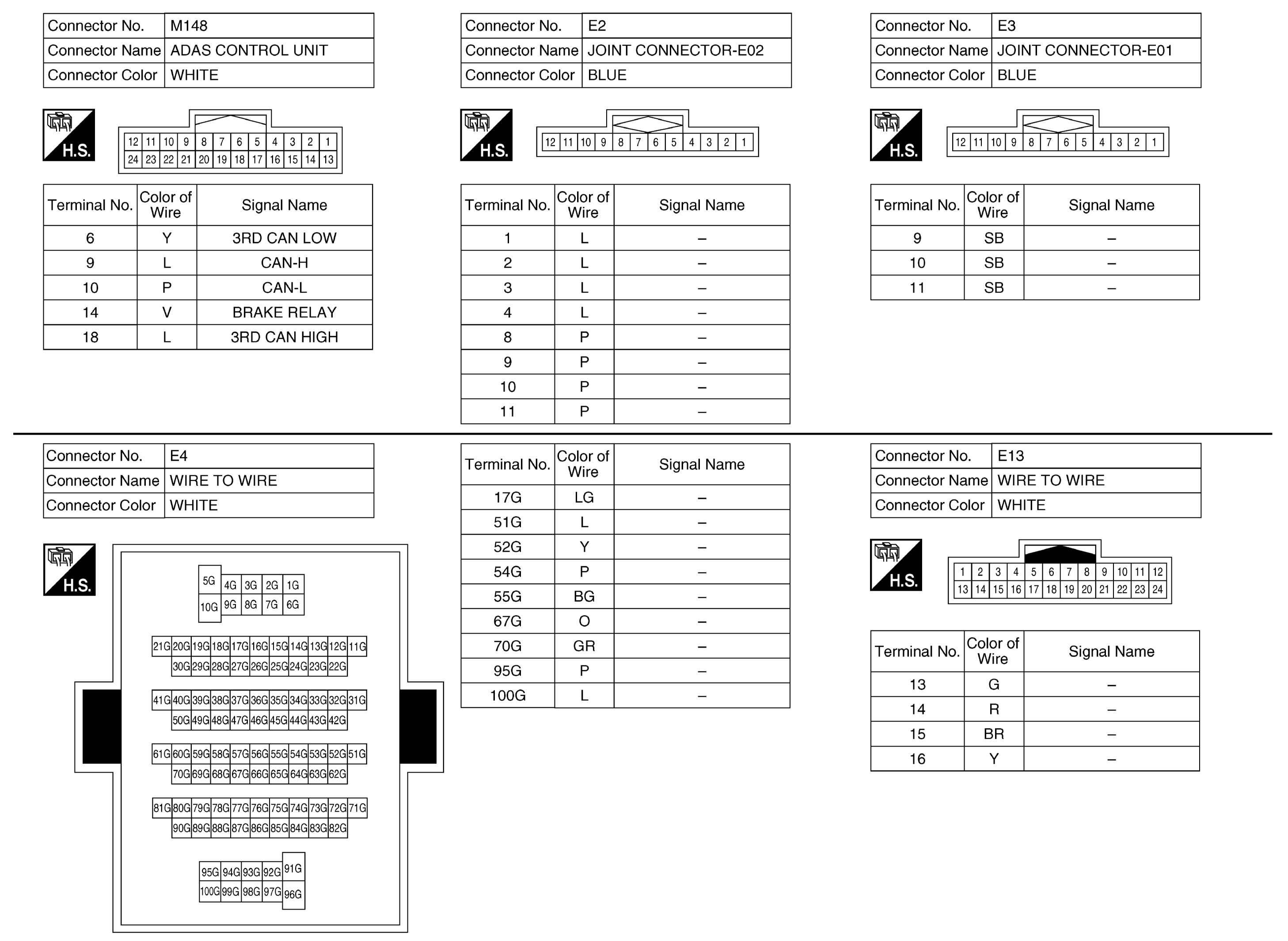

Fig 9: Brake Control System Connectors (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Brake Control System Connectors (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

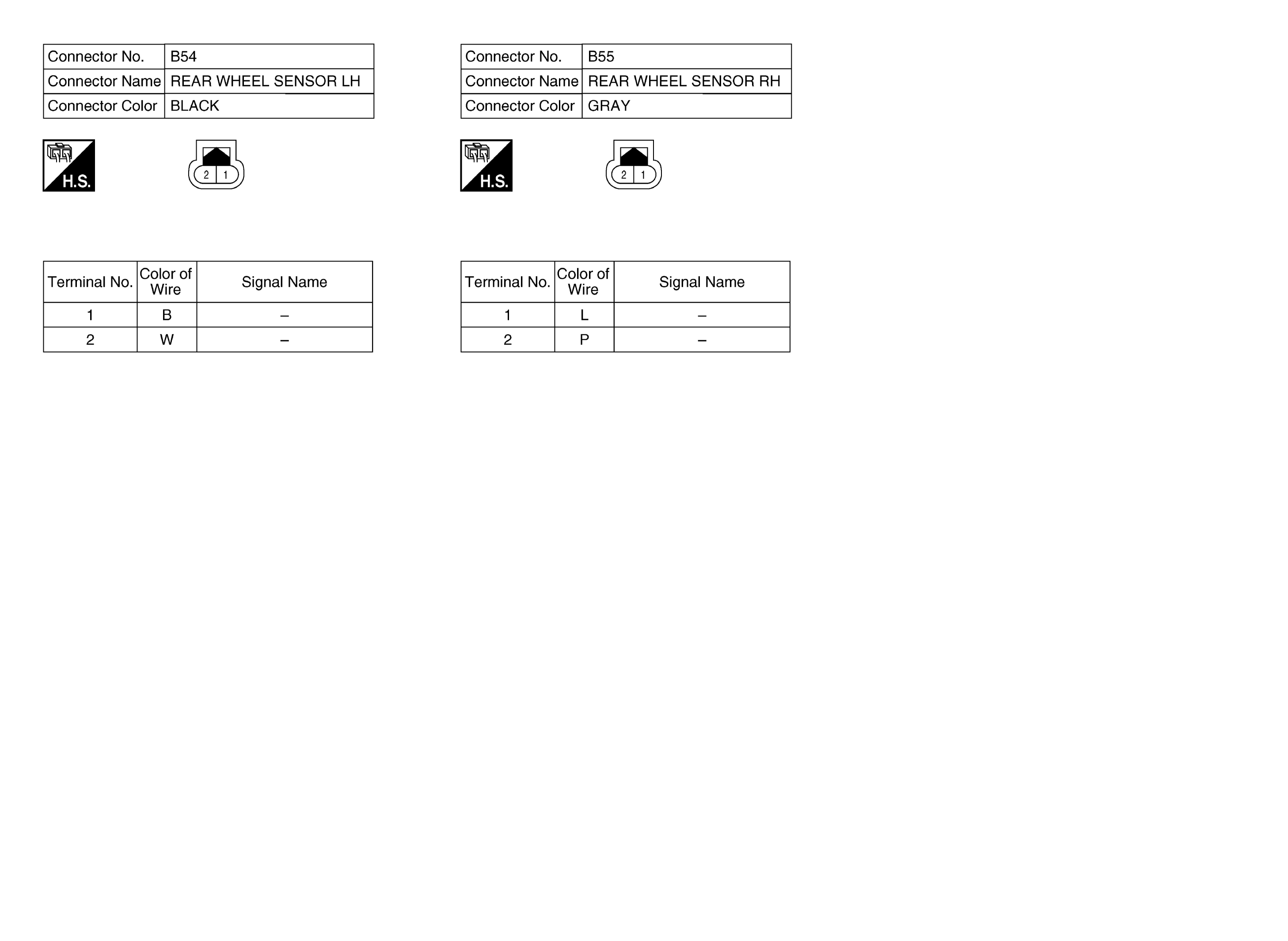

Fig 11: Brake Control System Connectors (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
