Exploded View With Torque Specifications

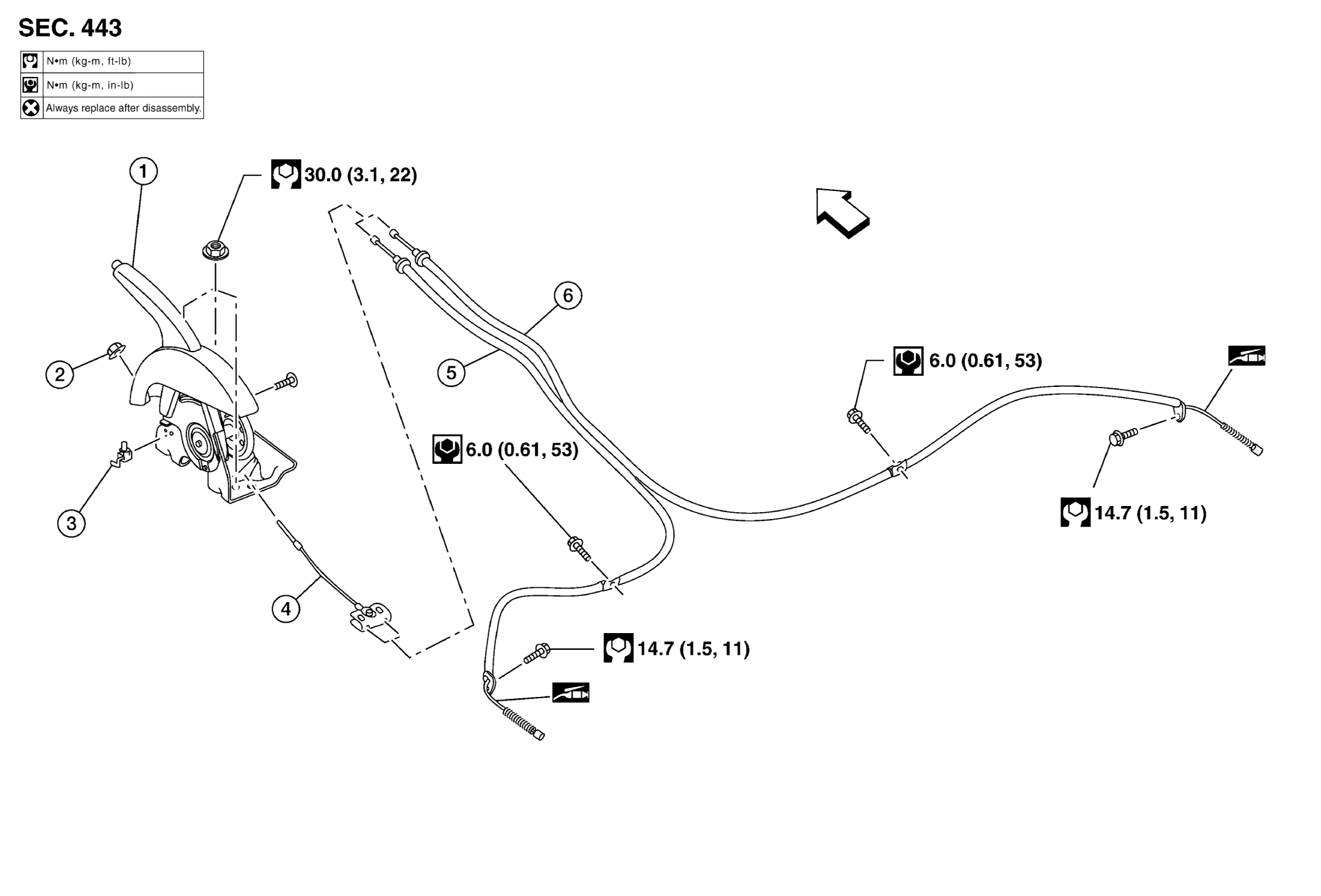

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications
GNSAWFIA0968ZZ-968Courtesy of NISSAN NORTH AMERICA, INC.
1. Parking brake lever assembly 2. Adjusting nut 3. Parking brake switch
4. Front parking brake cable 5. Rear parking brake cable (LH) 6. Rear parking brake cable (RH)
ARROW Front
